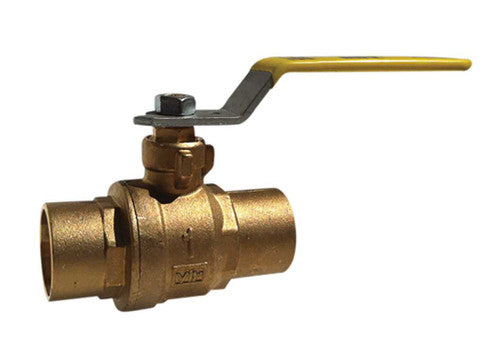

Red-White Valve 5549AB Lead Free Brass Full Port Ball Valve 600#

Product Description

The RED-WHITE VALVE 5549AB is a lead-free brass full port ball valve designed for durability and performance. Featuring solder x solder connections and an adjustable packing, this valve is ideal for various applications. It has a blow-out proof stem and is certified to AB1953, NSF/ANSI 61 & 372, and meets BAA requirements.

• Lead free brass body
• Full port design
• Solder x Solder connections

Product Highlights

Durable lead-free brass ball valve with full port and secure solder connections.

Product Information

Standard Information

• Brand: RED-WHITE VALVE
• Manufacturer Part Number: 5549AB-3
• Country of Origin: Italy

Technical Specifications

• Type: Ball Valve
• Connection Type: Solder x Solder
• Seat Material: PTFE
• Stem Material: Low Lead Brass Stem
• Ball Material: Chrome Plated Low Lead Brass Ball
• Size: 3 in
• Material: Lead Free Brass
• Operating Temperature [Min]: 15 F
• Operating Temperature [Max]: 160 F
• Operating Pressure [Max]: 600 psi
• Cv Coefficient: 530
• Valve Operator: Lever Handle
• Valve Operator Material: Steel / Geomet plated
• Length A: 7.29 in
• Height H: 4.88 in
• Length L: 11.08 in
• Pressure Class: 150# WSP / 600# WOG
• Body Material: Forged Brass Body
• Port: Full
• Packing: PTFE (Adjustable)
• End Connections: Solder
• Stem: Blow-Out Proof
• Certifications: NSF (through 2"), MSS-SP-110, AB1953
• ANSI: ANSI 372, ANSI 61
• ASME: ASME B16.22
• ASTM: ASTM A-36, ASTM B-124, ASTM B-927
• BAA Compliant: Yes
• Clean Bagged: No
• Collection: Figure 5549AB
• End Connection 1: Solder
• End Connection 2: Solder
• FM Approved: No
• Fire Suppression System Rated: No
• Handle Material: Plated Steel
• IAPMO Listed: No
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• MSS: MSS SP-110
• Maximum Temperature: 160
• NSF: NSF 372, NSF 61
• NSF Certified: Yes
• Pressure - High: 150, 600
• Recommended Valve Application: Gas, Oil, Water
• UL Listed: No
• Valve Body Style: 2 piece
• Valve Port Opening: Full Port
• Valve Seat Material: PTFE
• Valve Size: 3 in
• Valve Stem: Blowout-proof
• Valve Type: Ball Valve
• WOG: 600 lb
• WSP: 150 lb
• Temperature Range: 15 to 160 deg F
• Port Type: Full Port
• Orifice Size: 3.07 in
• Inlet to Outlet Length: 7.72 in
• Top to Inlet Center: 5.13 in
• Seat Trim: PTFE Seat Trim
• Softgoods: PTFE Softgoods
• Brand: RWV
• Housing Material: N/A
• Manufacturer Part Number: 5549AB
• MPN: 5549AB
• Diameter: 3 in
• Country of Origin: Italy
