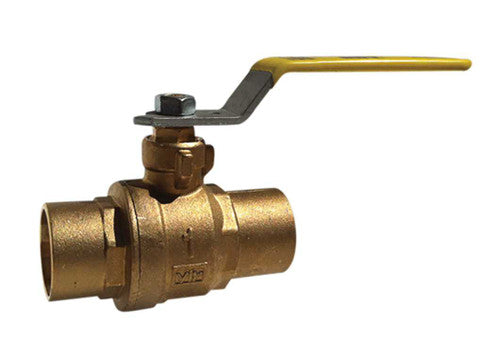

Red-White Valve 5549ab-12 Ball Valve 1-1/2 Inch Solder

Product Description

The RED-WHITE VALVE 5549AB-12 is a lead-free brass full port ball valve. It is designed with an adjustable packing and a blow-out proof stem. The valve is certified to AB1953, NSF/ANSI 61 & 372 and meets BAA requirements. Suitable for gas, oil, and water applications.

• Lead free brass body
• Full port
• Adjustable packing

Product Highlights

This ball valve features solder end connections and is ideal for various plumbing and heating applications.

Product Information

Standard Information

• Brand: RED-WHITE VALVE
• Manufacturer Part Number: 5549AB-12
• Country of Origin: Italy

Technical Specifications

• Type: Ball Valve
• Connection Type: Solder x Solder
• Seat Material: PTFE
• Stem Material: Lead Free Brass
• Ball Material: Lead Free Brass / Cr plated
• Size: 1-1/2
• Material: Lead Free Brass
• Operating Temperature [Min]: 15 00b0F
• Operating Temperature [Max]: 160 00b0F
• Operating Pressure [Max]: 600 psi
• Cv Coefficient: 111
• Valve Operator: Lever Handle
• Valve Operator Material: Steel / Geomet 00ae plated
• Length A: 4.26 in
• Height H: 3.14 in
• Length L: 5.57 in
• Pressure Class: 600# WOG
• End Connections: Sweat
• Valve Stem: Blowout-proof
• Certifications: NSF (through 2\")
• ANSI: ANSI 372, ANSI 61
• ASME: ASME B16.22
• ASTM: ASTM A-36, ASTM B-124 C37700, ASTM B-32 Grade 95TA, ASTM B-927 C28500
• BAA Compliant: Yes
• Clean Bagged: No
• Collection: Figure 5549AB
• End Connection 1: Sweat
• End Connection 2: Sweat
• FM Approved: No
• Handle Material: Steel
• IAPMO Listed: No
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• MSS: MSS SP-110
• NSF: NSF 372, NSF 61
• NSF Certified: Yes
• Recommended Valve Application: Gas, Oil, Water
• Temperature Range: Up to 366 Deg F
• UL Listed: No
• UPC: 670779449043
• Valve Body Style: 2 piece
• Valve Port Opening: Full Port
• Valve Size: 1/2 in
• Brand: RWV
• Port Type: Full
• Body Material: Forged Lead Free Brass
• Manufacturer Part Number: 5549AB
• MPN: 5549AB
• Diameter: 3 in
