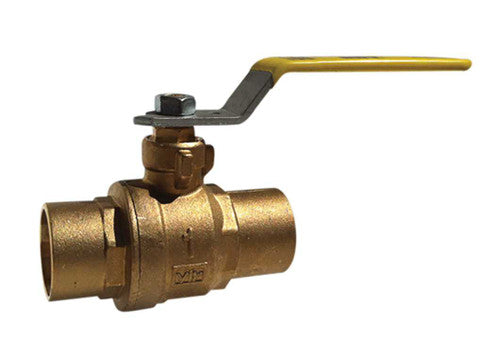

Red-White Valve 5549AB-1 Lead Free Brass Full Port Ball Valve 1 inches

Product Description

The RED-WHITE VALVE 5549AB-1 is a lead-free brass full port ball valve. It features solder x solder connections and an adjustable packing. The valve is certified to AB1953, NSF/ANSI 61 & 372 and meets BAA requirements. Designed for use in gas, oil, and water applications.

• Lead free brass body
• Full port
• Adjustable packing

Product Highlights

Lead free brass full port ball valve with solder connections and adjustable packing.

Product Information

Standard Information

• Brand: RED-WHITE VALVE
• Manufacturer Part Number: 5549AB-1
• Country of Origin: Italy

Technical Specifications

• Type: Ball Valve
• Connection Type: Solder x Solder
• Seat Material: PTFE
• Stem Material: Lead Free Brass
• Ball Material: Lead Free Brass / Cr plated
• Size: 1 in
• Material: Lead Free Brass
• Operating Temperature [Min]: 15 °F
• Operating Temperature [Max]: 160 °F
• Operating Pressure [Max]: 600 psi
• Cv Coefficient: 60
• Valve Operator: Lever Handle
• Valve Operator Material: Steel / Geomet® plated
• Weight: 1.070 lb
• Length A: 3.52 in
• Height H: 2.56 in
• Length L: 4.98 in
• Pressure Class: 600#
• Port: Full
• Packing: PTFE (Adjustable)
• End Connections: Sweat
• Stem: Blow-Out Proof
• Certifications: NSF (through 2"), MSS-SP-110, AB1953
• ANSI: ANSI 372, ANSI 61
• ASME: ASME B16.22
• ASTM: ASTM A-36, ASTM B-124 C37700, ASTM B-32 Grade 95TA, ASTM B-927 C28500
• BAA Compliant: Yes
• Clean Bagged: No
• Collection: Figure 5549AB
• End Connection 1: Sweat
• End Connection 2: Sweat
• FM Approved: No
• Handle Material: Steel
• IAPMO Listed: No
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• Length: 3-39/100
• MSS: MSS SP-110
• NSF: NSF 372, NSF 61
• NSF Certified: Yes
• Pressure - High: 150
• Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
• Recommended Valve Application: Gas, Oil, Water
• Temperature Range: Up to 366 Deg F
• UL Listed: No
• UPC: 670779449067
• Valve Body Style: 2 piece
• Valve Port Opening: Full Port
• Valve Seat Material: PTFE
• Valve Size: 1 in
• Valve Stem: Blowout-proof
