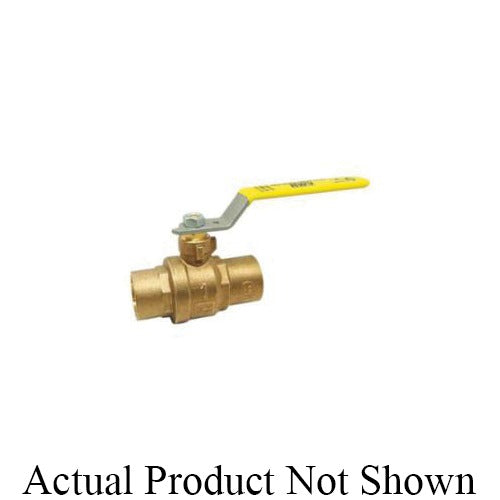

Red-white Valve 5549AB 1-1/2 Ball Valve 1-1/2 in Solder Brass

Product Description

The RED-WHITE VALVE 5549AB 1-1/2 is a 2-piece, full port ball valve designed for reliable shutoff in plumbing, hydronic heating, and mechanical piping systems. Built with a forged brass body and PTFE softgoods, this valve delivers durable, low-torque operation with a positive seal. The 1-1/2 inch nominal solder end connection makes it a direct fit for copper pipe systems. The full port design maintains maximum flow capacity through the valve, minimizing pressure drop in the line. A lever handle is included for quick quarter-turn operation. Licensed plumbers and pipefitters install this valve in both new construction and retrofit work.

This valve is suited for residential and light commercial applications including domestic water supply, hydronic radiant systems, boiler piping, and general mechanical service lines. The solder end style is compatible with standard 1-1/2 inch copper tubing. It performs well in closed-loop heating systems, chilled water lines, and potable water distribution where a full bore shutoff is required. The forged brass body withstands the pressures and temperatures common in these system types.

Key Features

• 2-piece full port design maintains maximum flow with minimal pressure drop
• Forged brass body for strength and corrosion resistance in wet service environments
• PTFE softgoods provide a reliable, low-friction seal with long service life
• 1-1/2 inch nominal solder end connection for direct copper pipe installation
• Lever handle included for fast quarter-turn open and close operation

Compatibility

Designed as an OEM-style replacement or new-installation shutoff valve for 1-1/2 inch copper pipe systems in residential and commercial plumbing and hydronic applications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC guidelines. Shut off the water supply and depressurize the line before soldering. Allow the valve to cool completely after soldering before operating, as excessive heat during the process can damage internal seals. Do not over-torque the packing nut or apply excessive flux to the valve body.

Technical Specifications

• Nominal Size: 1-1/2 inches
• End Style: Solder
• Body Material: Forged Brass
• Softgoods Material: PTFE
• Port Type: Full Port
• Configuration: 2-Piece
• Actuator: Lever Handle

Standard Information

• Brand: RED-WHITE VALVE
• Manufacturer Part Number: 5549AB 1-1/2
