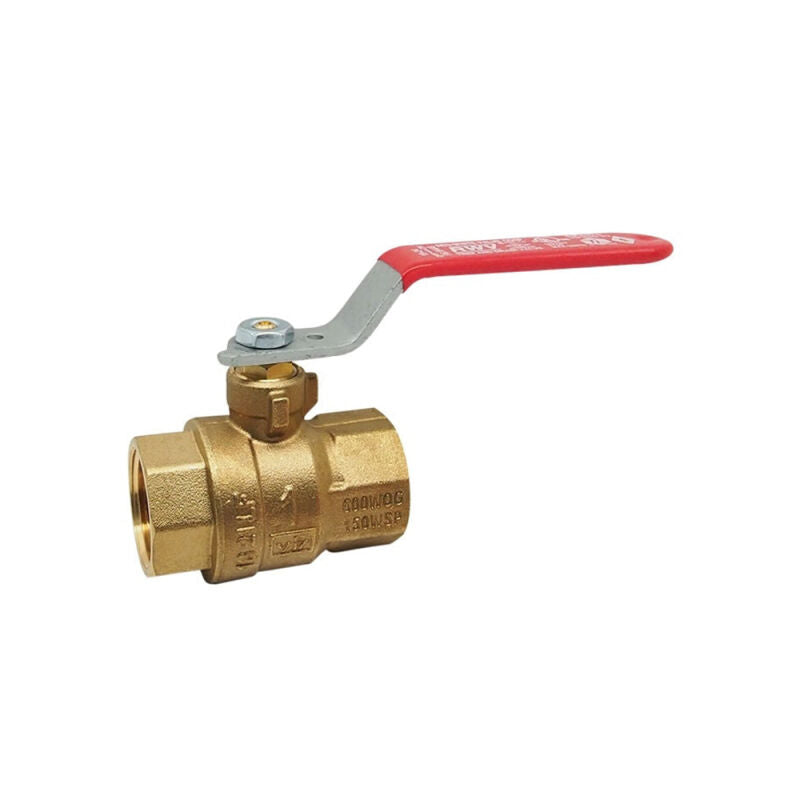

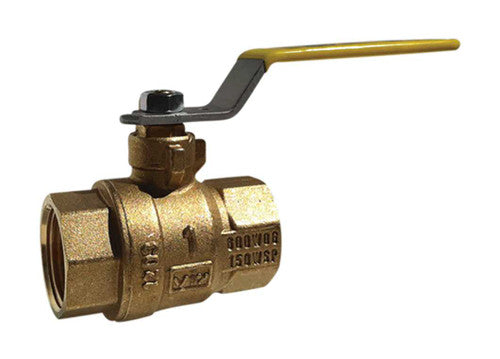

Red-White Valve 5544AB Lead Free Brass Full Port Ball Valve 3 inches

Product Description

The RED-WHITE VALVE 5544AB is a lead-free brass full port ball valve with FNPT x FNPT connection. It is designed with an adjustable packing and a blow-out proof stem. The valve features threaded ends and is AB1953, NSF/ANSI 61 & 372 certified. It meets BAA requirements.

• Lead free brass body
• Full port
• Adjustable packing

Product Highlights

This lead-free brass ball valve is ideal for various applications requiring a reliable shutoff.

Product Information

Standard Information

• Brand: RED-WHITE VALVE
• Manufacturer Part Number: 5544AB-3
• Country of Origin: Italy

Technical Specifications

• Type: Ball Valve
• Connection Type: FNPT x FNPT
• Seat Material: PTFE
• Stem Material: Lead Free Brass
• Ball Material: Lead Free Brass / Cr plated
• Size: 3"
• Material: Lead Free Brass
• Operating Temperature [Min]: 15 °F
• Operating Temperature [Max]: 160 °F
• Operating Pressure [Max]: 600 psi
• Cv Coefficient: 530
• Valve Operator: Lever Handle
• Valve Operator Material: Steel / Geomet ® plated
• Length A: 6.03 in
• Height H: 4.88 in
• Length L: 11.08 in
• Port: Full
• Pressure Class: 150# WSP / 600# WOG
• Packing Material: PTEFE (Adjustable)
• Handle Type: Lever
• Stem: Blow-Out Proof
• Body Material: Forged Lead Free Brass
• Max. Pressure: 1000 psig WOG
• Max. Temperature: 600PSI from 15F-160F / 150PSI MAX at 366 °F
