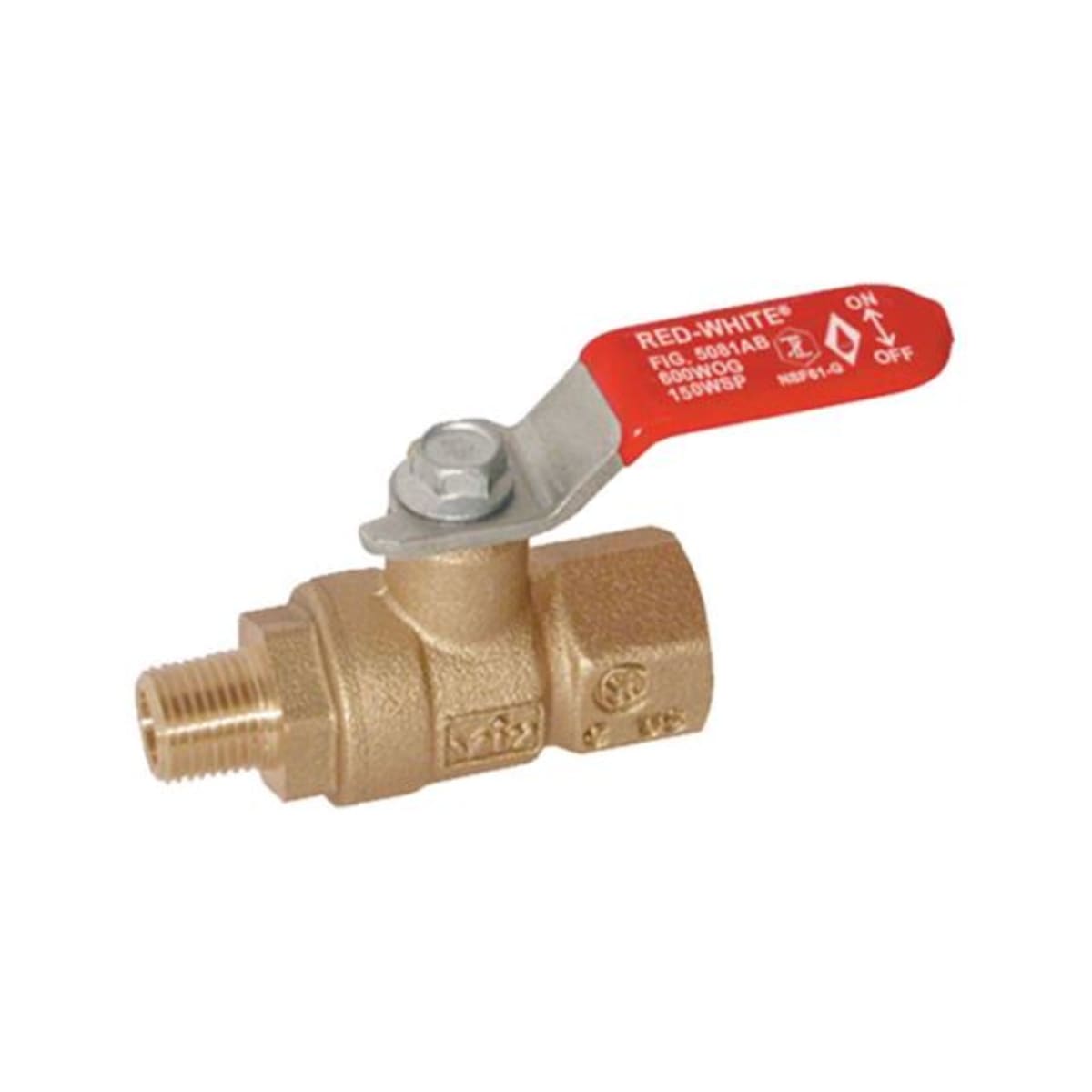

Red-White Valve 5082AB1/4 Low Lead Mini Ball FNPTxMNPT

Product Description

The Red-White Valve MPN 5082AB1/4 is a low lead mini ball valve designed for efficient flow control. This two-piece valve features a nominal size of one-fourth x one-eighth inch with MNPT x FNPT end styles, suitable for a broad range of applications. It supports a pressure rating of six hundred pounds WOG and one hundred fifty pounds WSP, with a temperature range of fifteen to one hundred sixty degrees Fahrenheit.

• Constructed with chrome-plated low lead brass ball
• Full port design with a 0.31-inch orifice
• Blow-out proof stem with FPM O-ring packing

Product Highlights

This valve is ideal for HVAC, plumbing, and gas applications, providing reliability and safety in low lead environments.

Product Information

Standard Information

• Manufacturer: Red-White Valve Corp
• Series: 5082AB

Technical Specifications

• Ball Material: Chrome Plated Low Lead Brass
• Body Material: Brass
• End Style: MNPT x FNPT
• Inlet to Outlet Length: 1.81 inches
• Nominal Size: 1/4 x 1/8 inches
• Orifice Size: 0.31 inches
• Port Type: Full
• Pressure Rating: 600 lb WOG / 150 lb WSP
• Temperature Rating: 15 to 160 degrees Fahrenheit
• Top to Inlet Center: 1.09 inches
• Trim Material: Low Lead Brass Stem and PTFE Seat
• Type: 2-Piece
