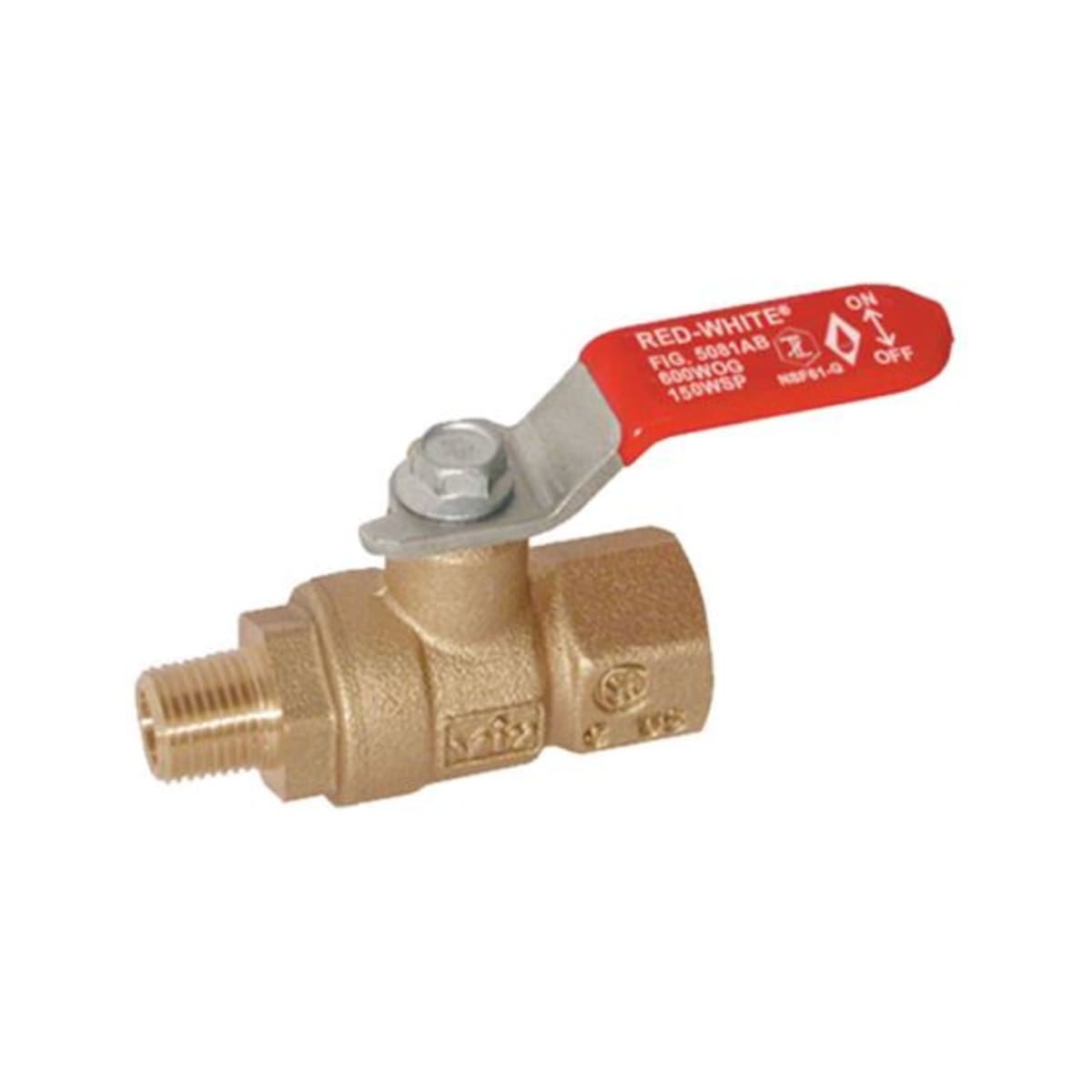

Red-White Valve 5081AB 1/8 Low Lead Mini Ball FNPTxMNPT

Product Description

The Red-White Valve 5081AB 1/8 is a mini ball valve designed for industrial and plumbing applications. It features a 2-piece body with a full port design, ensuring excellent flow characteristics. The valve is constructed from chrome plated low lead brass, with a nominal size of one eighth inch and MNPT x FNPT end style.

• Pressure rating: 600 lb WOG and 150 lb WSP.
• Temperature range: 15 to 160 degrees Fahrenheit.
• Blow-out proof stem and FPM O-ring packing enhance durability.

Product Highlights

This valve is ideal for use in heating, cooling, and plumbing systems. Its full port design allows for maximum flow efficiency, making it suitable for various applications. The chrome plating reduces corrosion, ensuring a longer lifespan.

Product Information

Standard Information

• Manufacturer: Red-White Valve Corp
• MPN: 5081AB 1/8

Technical Specifications

• Ball Material: Chrome Plated Low Lead Brass
• Body Material: Brass
• Nominal Size: 1/8 inch
• End Style: MNPT x FNPT
• Inlet to Outlet Length: 1.81 inches
• Top to Inlet Center: 1.09 inches
• Orifice Size: 0.31 inches
• Pressure Rating: 600 lb WOG / 150 lb WSP
• Temperature Rating: 15 to 160 degrees Fahrenheit
• Type: 2-Piece
• Softgoods Material: FPM
• Port Type: Full
