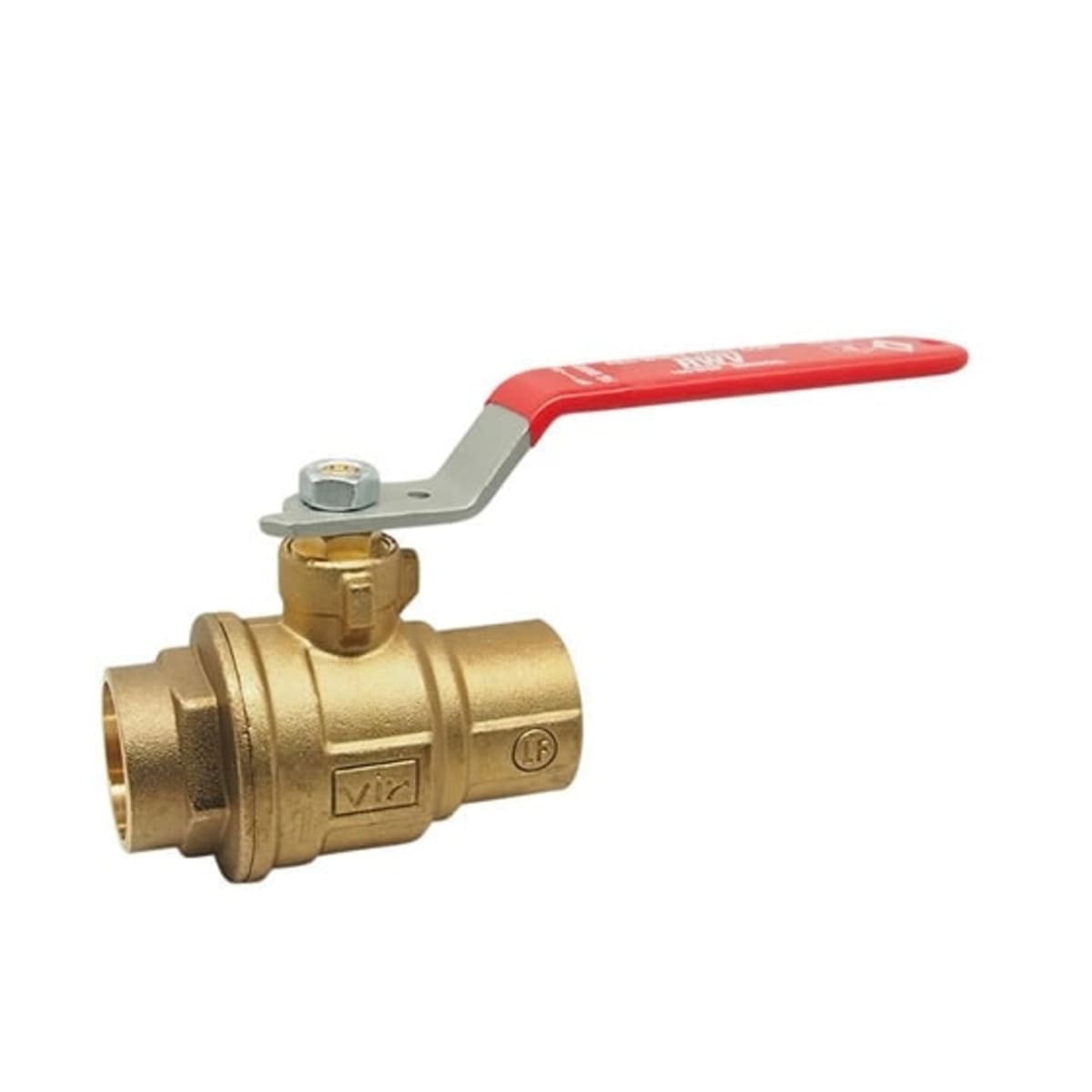

Red-White Valve 5049AB2-1/2 Low Lead Brass Full Port Ball Valve CXC

Product Description

The Red-White Valve MPN 5049AB2-1/2 is a low lead brass full port ball valve. It is designed for solder connections and is suitable for various applications, including plumbing and HVAC systems.

• Lead-free construction ensures safety and compliance.
• Full port design allows for maximum flow with minimal pressure drop.
• Adjustable packing nut for easier maintenance.

Product Highlights

This ball valve is made to last with its chrome plated low lead brass ball, forged brass body, and PTFE seat trim. It operates effectively within a temperature range of fifteen to one hundred sixty degrees Fahrenheit and is rated for six hundred pounds WOG.

Product Information

Standard Information

• Manufacturer: Red-White Valve Corp
• MPN: 5049AB2-1/2

Technical Specifications

• Ball Material: Chrome Plated Low Lead Brass
• Body Material: Forged Brass
• End Style: Solder
• Nominal Size: 2-1/2 inches
• Port Type: Full
• Pressure Rating: 600 lb WOG / 150 lb WSP
• Series: 5049AB
• Softgoods Material: PTFE
• Temperature Rating: 15 to 160 degrees Fahrenheit
• Trim Material: Brass Stem and PTFE Seat
• Type: 2-Piece
