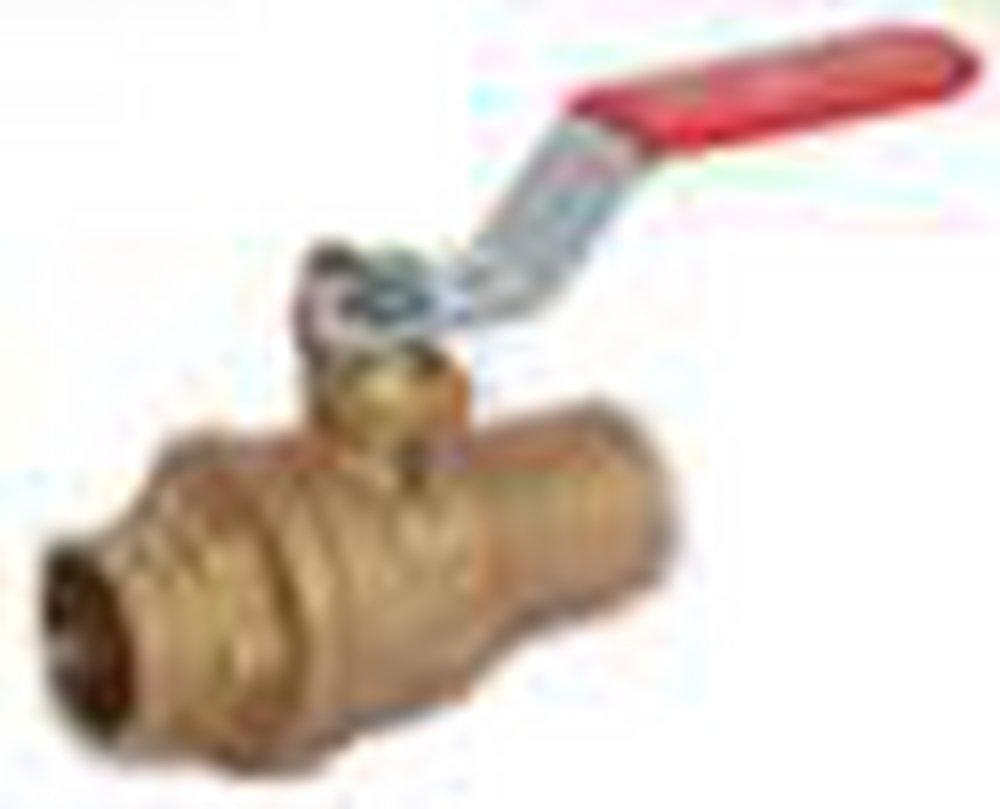

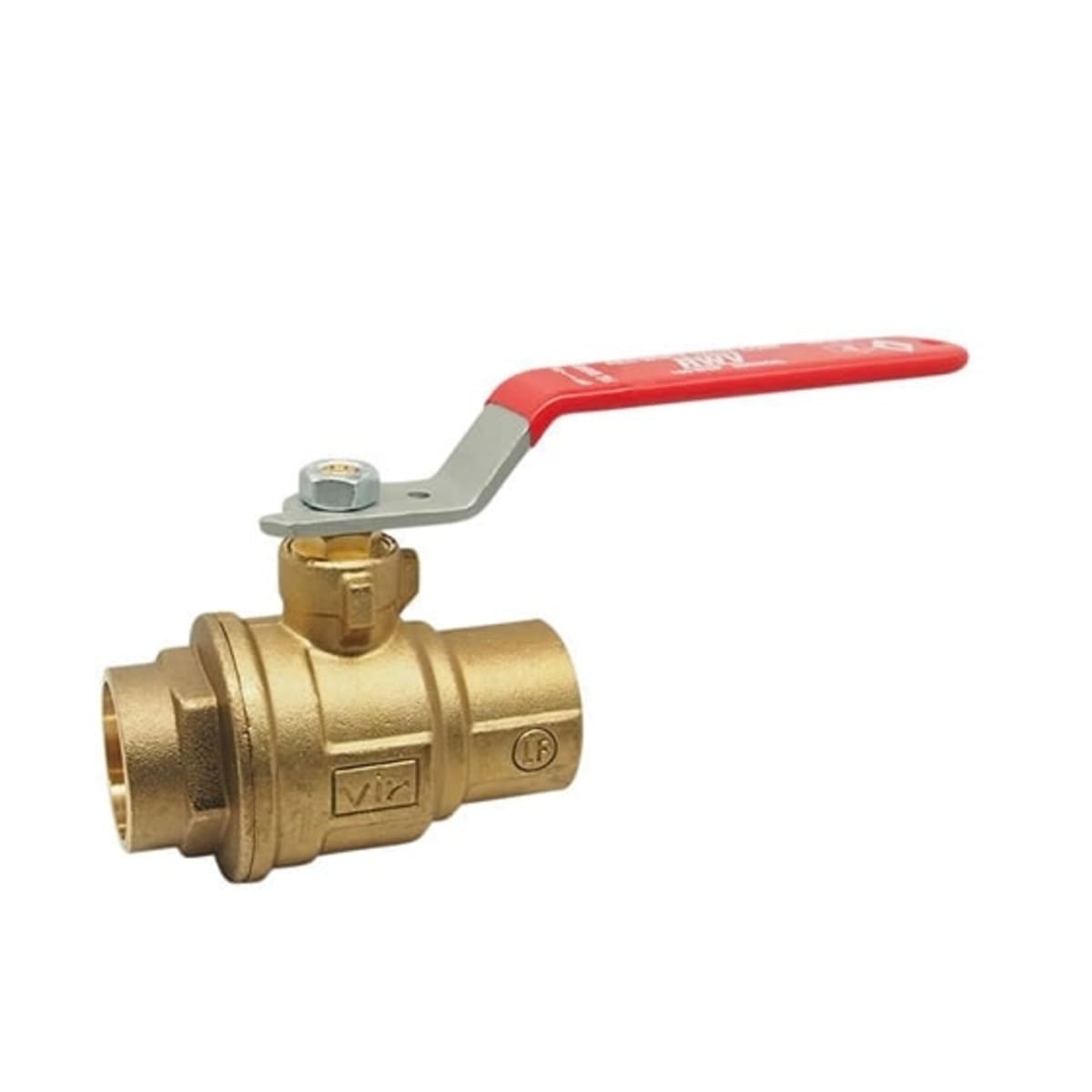

Red-White Valve 5049AB 2 in. Brass Full Port Solder 600# Ball Valve

Product Description

The Red-White Valve 5049AB is a brass full port solder ball valve designed for various plumbing applications. This durable valve allows for efficient flow control with a two-piece body construction.

• Lead-free construction for safety
• Compatible with solder connections
• Pressure rated for 600 lb WOG and 150 lb WSP

Product Highlights

The valve features a chrome-plated ball and a blow-out proof stem for enhanced reliability. It is suitable for a temperature range of fifteen to one hundred sixty degrees Fahrenheit.

Product Information

Standard Information

• Manufacturer: Red-White Valve Corp
• Part Number: 5049AB 2

Technical Specifications

• Ball Material: Chrome Plated Low Lead Brass
• Body Material: Forged Brass
• End Style: Solder
• Inlet to Outlet Length: 5.57 inches
• Nominal Size: 2 inches
• Orifice Size: 1.97 inches
• Port Type: Full
• Pressure Rating: 600 lb WOG/150 lb WSP
• Temperature Rating: 15 to 160 degrees Fahrenheit
• Top to Inlet Center: 3.58 inches
• Trim Material: Brass Stem and PTFE Seat
• Type: 2-Piece
