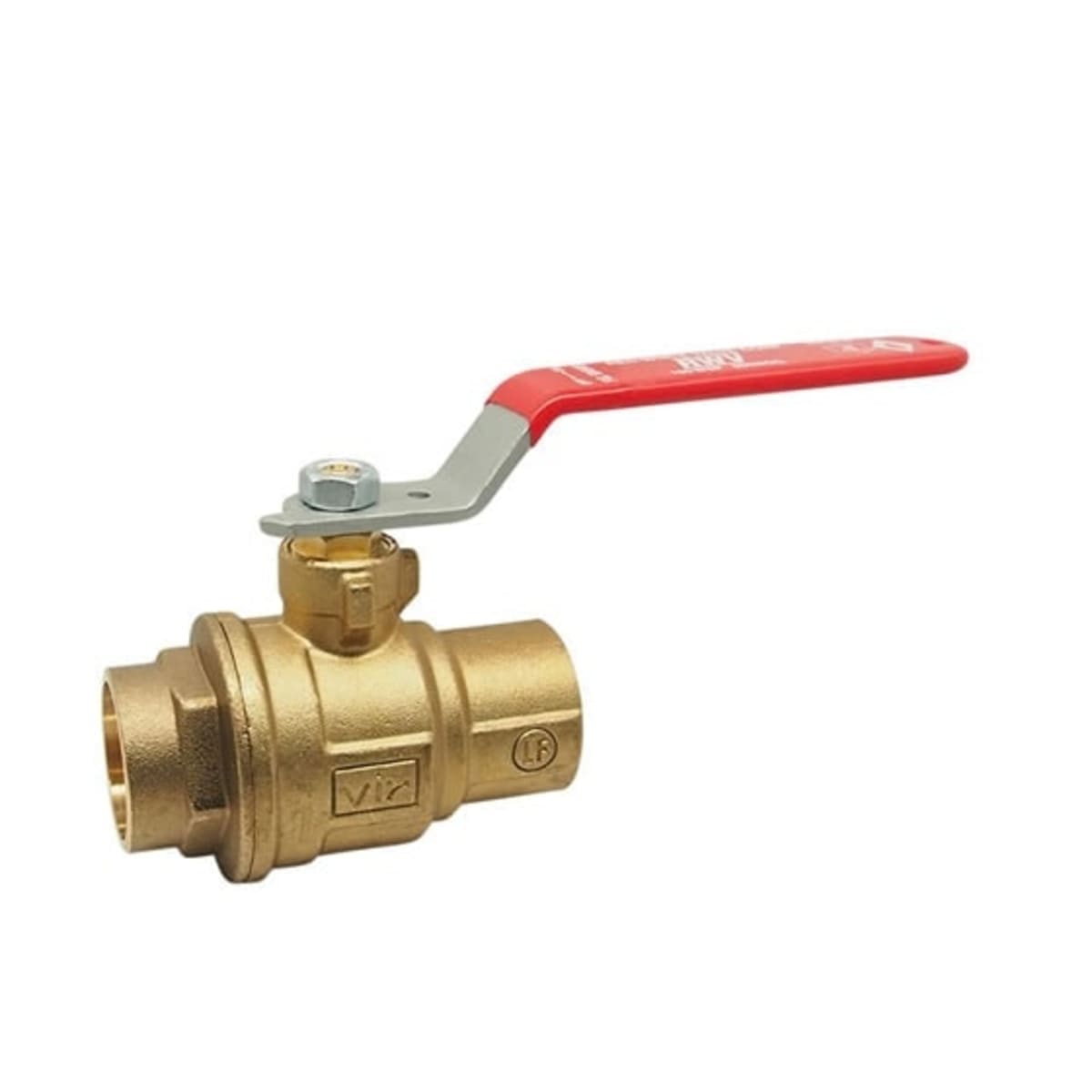

Red-White Valve 5049AB 1 in. Brass Full Port Solder 600# Ball Valve

Product Description

The Red-White Valve 5049AB is a one inch brass full port ball valve designed for solder connections. It has a pressure rating of six hundred pounds for water, oil, and gas. This valve supports a wide range of temperatures from fifteen degrees to one hundred sixty degrees Fahrenheit.

• Full port design for maximum flow
• Chrome plated ball for corrosion resistance
• Blow out proof stem for added safety

Product Highlights

This two-piece valve is ideal for various plumbing tasks, ensuring reliable service in residential or commercial settings.

Product Information

Standard Information

• Manufacturer: Red-White Valve Corp
• Part Number: 5049AB 1

Technical Specifications

• Nominal Size: 1 in
• Orifice Size: 0.98 in
• Body Material: Forged Brass
• Ball Material: Chrome Plated Low Lead Brass
• End Style: Solder
• Temperature Rating: 15 to 160 deg F
• Pressure Rating: 600 lb WOG / 150 lb WSP
• Softgoods Material: PTFE
• Inlet to Outlet Length: 4.98 in
• Top to Inlet Center: 2.57 in
