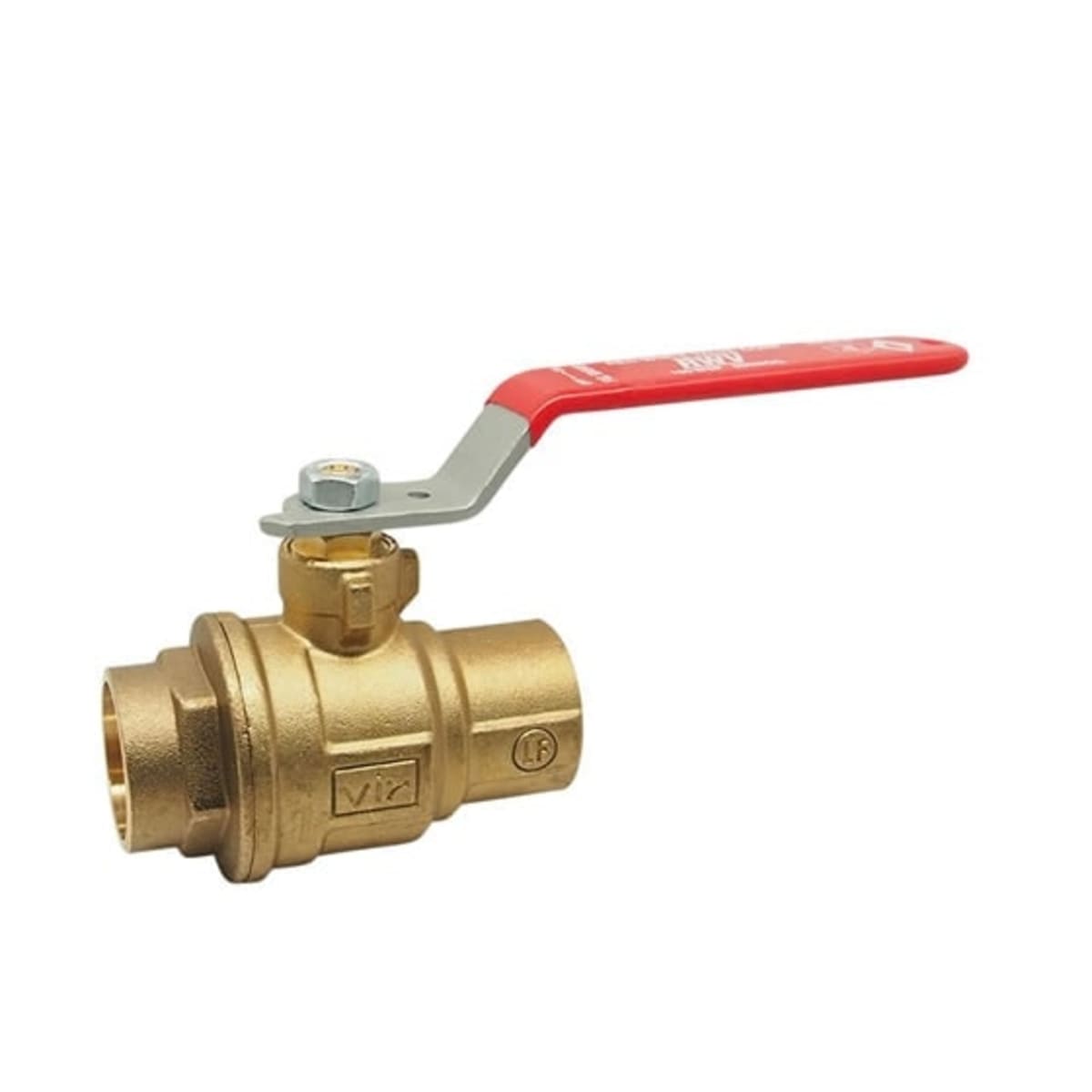

Red-White Valve 5049AB 1/2 Low Lead Brass Full Port Ball Valve CXC

Product Description

The Red-White Valve 5049AB 1/2 is a lead-free brass full port ball valve designed for soldering applications. This valve features a chrome-plated low lead brass ball and is efficient for use in various plumbing applications.

• Full port design for maximum flow
• Blow-out proof stem for added safety
• Adjustable packing nut for easy maintenance

Product Highlights

The valve operates under high pressure, rated at six hundred pounds WOG and one hundred fifty pounds WSP, with a temperature range from fifteen to one hundred sixty degrees Fahrenheit. It is constructed with a forged brass body and PTFE trim materials, ensuring durability and longevity.

Product Information

Standard Information

• Manufacturer: Red-White Valve Corp
• Series: 5049AB

Technical Specifications

• Nominal Size: 1/2 in
• Orifice Size: 0.59 in
• End Style: Solder
• Pressure Rating: 600 lb WOG / 150 lb WSP
• Temperature Rating: 15 to 160 deg F
• Inlet to Outlet Length: 3.6 in
• Top to Inlet Center: 2.13 in
• Body Material: Forged Brass
• Ball Material: Chrome Plated Low Lead Brass
• Softgoods Material: PTFE
• Trim Material: Brass Stem and PTFE Seat
• Type: 2-Piece
