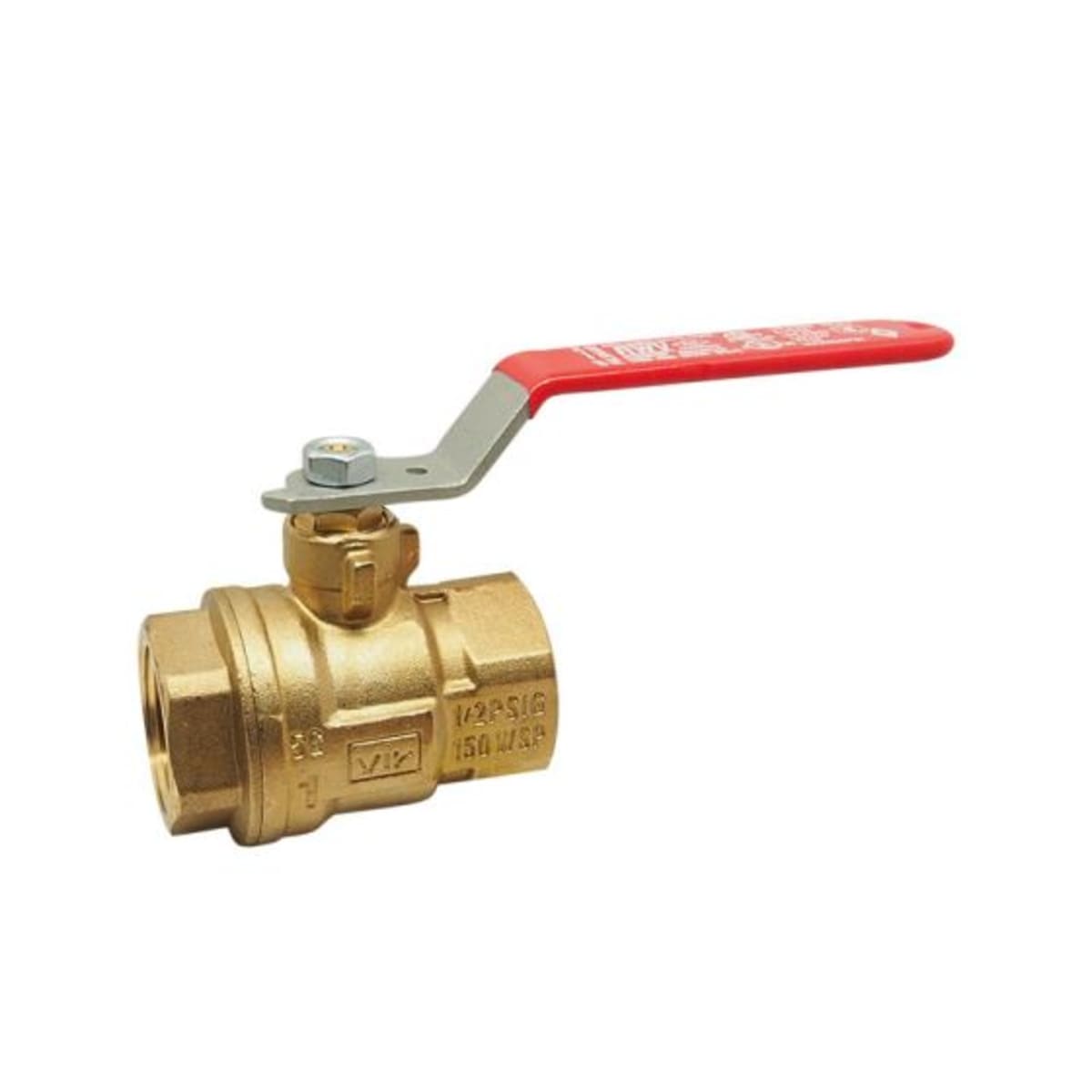

Red-White Valve 5044AB1 Low Lead Brass Full Port Ball Valve IPS

Product Description

The Red-White Valve 5044AB1 is a low lead brass full port ball valve with an IPS connection. Designed for safe and efficient flow control, this valve is suitable for various applications in plumbing and HVAC systems.

• Lead-free construction compliant with safety standards
• Full port design for minimal flow resistance
• Durable with pressure ratings up to 600 lb WOG

Product Highlights

This valve features a chrome-plated ball for increased longevity and reliability in diverse temperatures ranging from fifteen to one hundred sixty degrees Fahrenheit.

Product Information

Standard Information

• Manufacturer: Red-White Valve Corp
• MPN: 5044AB1

Technical Specifications

• Ball Material: Chrome Plated Low Lead Brass
• Body Material: Forged Brass
• End Style: FNPT
• Nominal Size: 1 in
• Orifice Size: 0.98 in
• Pressure Rating: 600 lb WOG / 150 lb WSP
• Temperature Rating: 15 to 160 degrees F
• Inlet to Outlet Length: 2.92 in
• Top to Inlet Center: 2.57 in
• Trim Material: Low Lead Brass Stem and PTFE Seat
• Softgoods Material: PTFE
• Type: 2-Piece
• Series: 5044AB
