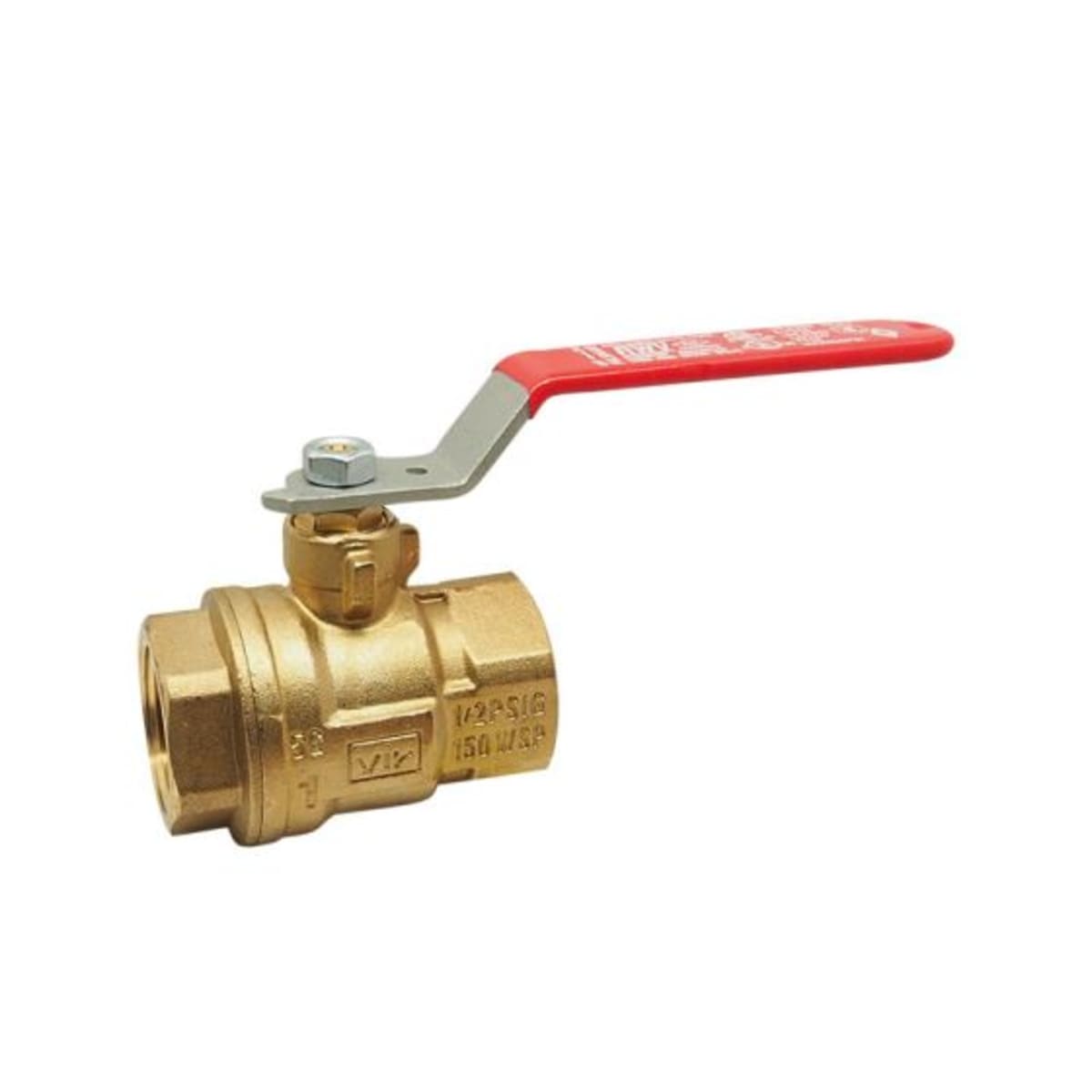

Red-White Valve 5044AB 2-1/2 Low Lead Brass Full Port Ball Valve IPS

Product Description

The Red-White Valve 5044AB 2-1/2 is a lead-free brass full port ball valve designed for reliable performance in various plumbing applications. It features a two-piece body and a full port flow design, allowing for efficient fluid handling. This valve is suitable for both residential and commercial plumbing systems that require compliance with low lead regulations.

• Lead-free brass construction
• Full port design for maximum flow
• Compatible with FNPT connections

Product Highlights

This valve is ideal for applications needing a durable and reliable flow control solution.

Product Information

Standard Information

• Manufacturer: Red-White Valve Corp
• MPN: 5044AB 2-1/2

Technical Specifications

• Nominal Size: 2-1/2 inches
• Material: Lead-Free Brass
• Body Material: Forged Brass
• Ball Material: Chrome Plated Low Lead Brass
• Pressure Rating: 600 lb WOG/150 lb WSP
• Temperature Rating: 15 to 160 degrees F
• Orifice Size: 2.56 inches
• Length from Inlet to Outlet: 6.02 inches
• Top to Inlet Center: 4.7 inches
• Trim Material: Low Lead Brass Stem and PTFE Seat
• Standards/Approvals: UL Listed, FM Approved, NSF-61/372 Compliant
