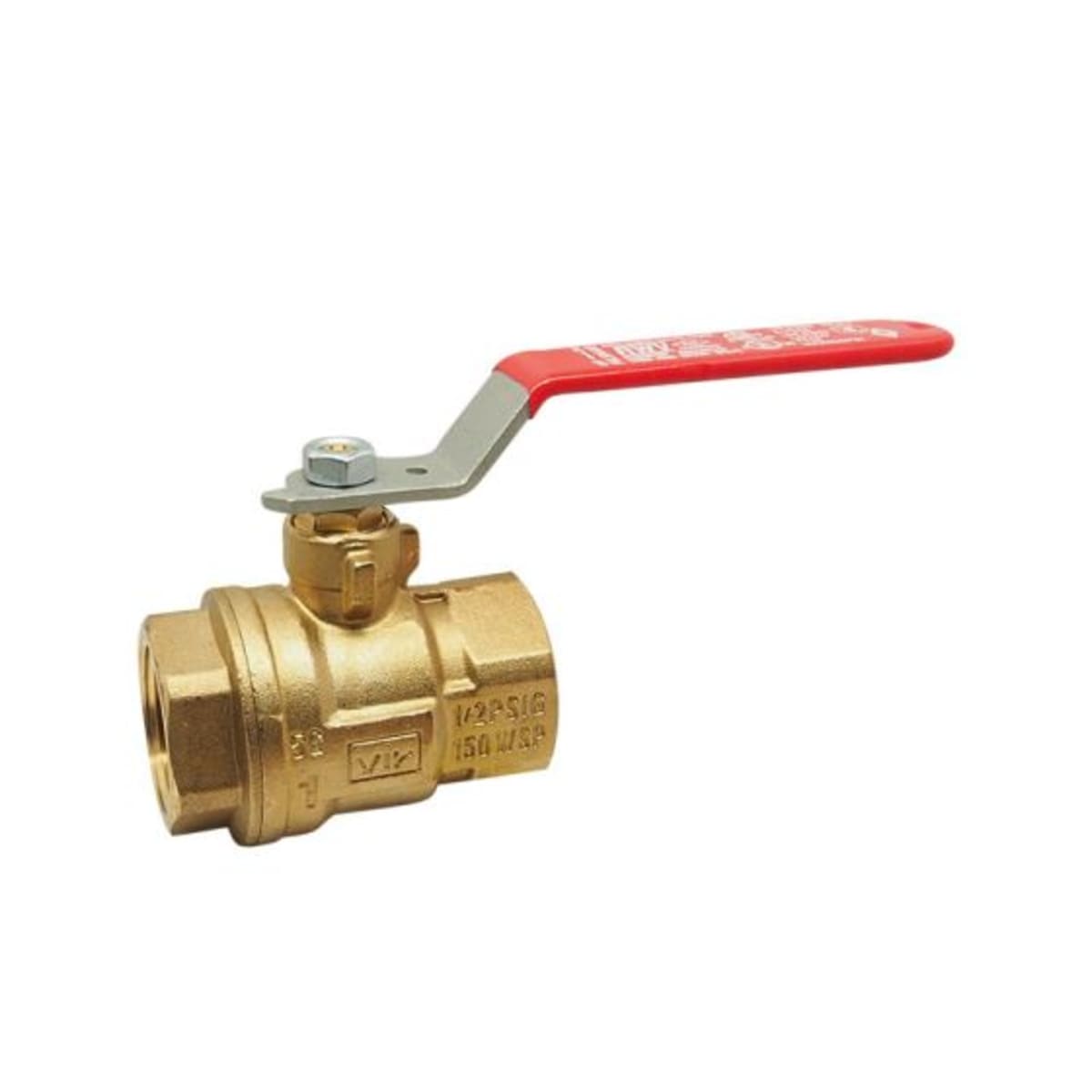

Red-White Valve 5044AB 1/4 Full Port Ball Valve IPS

Product Description

The Red-White Valve 5044AB 1/4 is a low lead brass full port ball valve designed for various plumbing and HVAC applications. It features a two-piece body and is compatible with FNPT connections. This valve operates at a pressure rating of 600 lb WOG and 150 lb WSP, accommodating temperatures from fifteen to one hundred sixty degrees Fahrenheit.

• Lead-free construction for safe water supply.
• Standardized connection size of one quarter inch.
• Meets various plumbing standards and certifications.

Product Highlights

This ball valve is essential for controlling flow in plumbing systems, offering reliable and durable performance. Its full port design allows for maximum flow, making it suitable for both residential and commercial use.

Product Information

Standard Information

• Brand: Red-White Valve Corp
• MPN: 5044AB 1/4

Technical Specifications

• Series: 5044AB
• End Style: FNPT
• Ball Material: Chrome Plated Low Lead Brass
• Body Material: Forged Brass
• Temperature Rating: 15 to 160 degrees Fahrenheit
• Inlet to Outlet Length: 1.73 inches
• Top to Inlet Center: 1.55 inches
• Pressure Rating: 600 lb WOG / 150 lb WSP
• Orifice Size: 0.39 inches
• Port Type: Full
• Softgoods Material: PTFE
• Trim Material: Low Lead Brass Stem and PTFE Seat
• Connection Type: FIP x FIP
