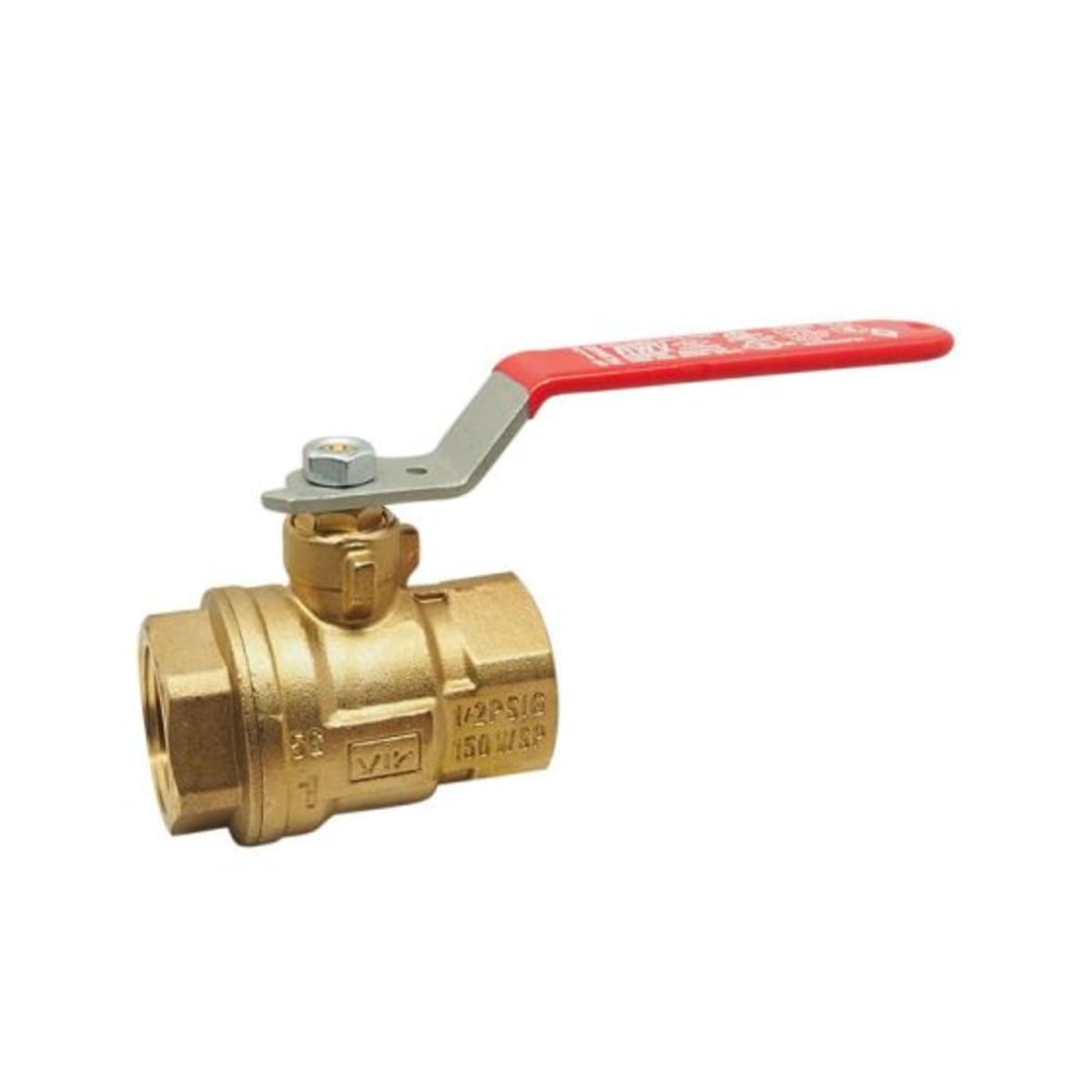

Red-White Valve 5044AB 1/2 Low Lead Brass Full Port Ball Valve IPS

Product Description

The Red-White Valve 5044AB 1/2 is a low lead brass full port ball valve designed for lead-free applications. This valve features a two-piece construction and provides reliable flow control in various plumbing systems.

• Low lead brass construction
• Full port design
• Pressure rating of 600 lb WOG and 150 lb WSP

Product Highlights

The valve operates effectively within a temperature range of fifteen to one hundred sixty degrees Fahrenheit, making it suitable for a variety of environments.

Product Information

Standard Information

• Manufacturer: Red-White Valve Corp
• MPN: 5044AB 1/2

Technical Specifications

• Valve Type: 2-Piece
• Nominal Size: 1/2 inch
• Orifice Size: 0.59 inch
• Ball Material: Chrome Plated Low Lead Brass
• Body Material: Forged Brass
• Softgoods Material: PTFE
• Pressure Rating: 600 lb WOG / 150 lb WSP
• Temperature Rating: 15 to 160 degrees Fahrenheit
• Inlet to Outlet Length: 2.13 inches
• Top to Inlet Center: 2.13 inches
