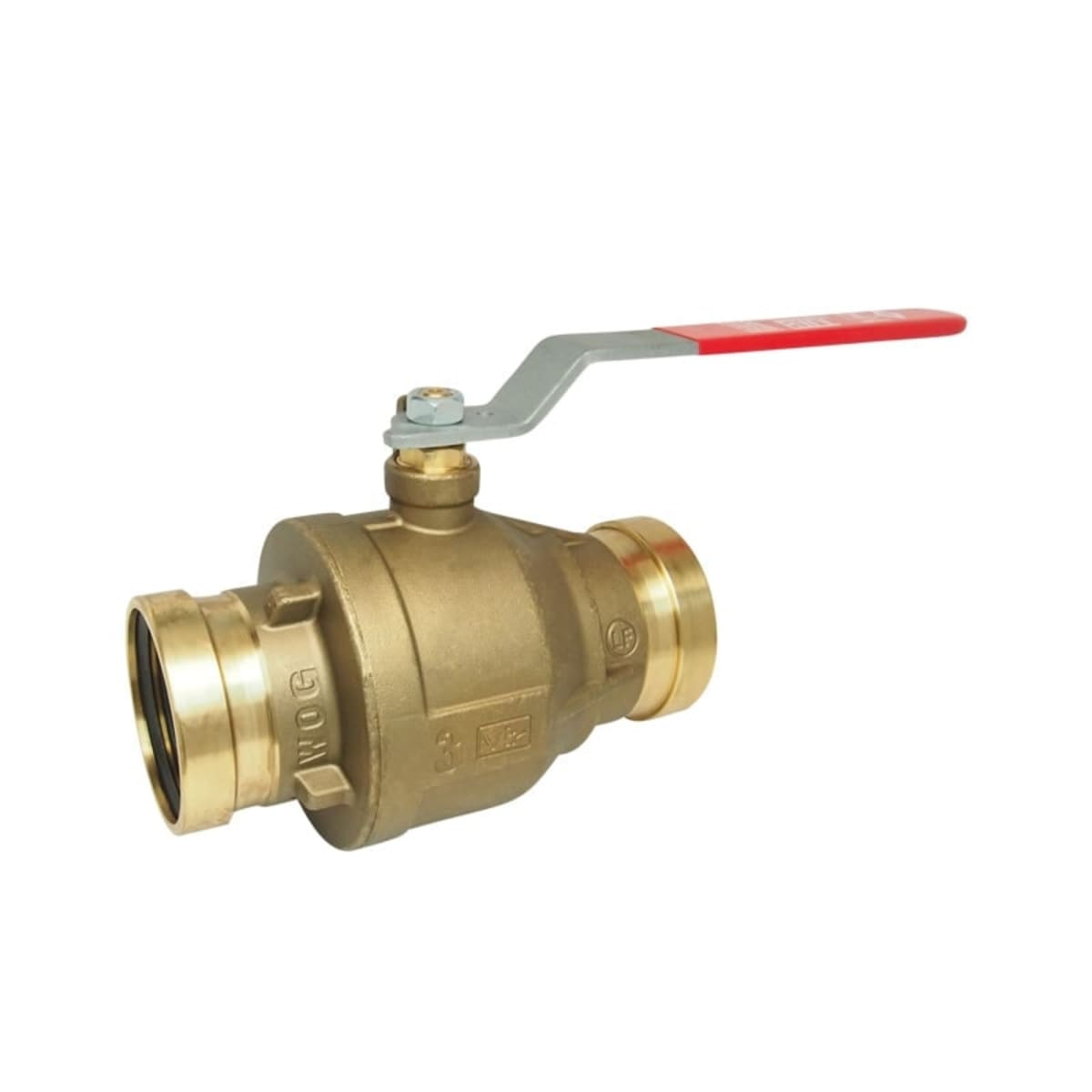

Red-White Valve 5020ABX4 Low Lead Brass XLC EzPRESS Ball Valve

Product Description

The Red-White Valve 5020ABX4 is a 2-piece standard ball valve. This valve features a dual female EzPress end style and is rated for 200 lb WOG pressure. It operates effectively at temperatures up to 250 degrees Fahrenheit. The valve has a nominal size of four inches and a full port design.

• Constructed from chrome plated brass ball and bronze body materials
• Adjustable packing nut for easy maintenance
• Blow-out proof stem design

Product Highlights

This ball valve is suitable for various plumbing applications, including water systems and heating systems.

Product Information

Standard Information

• Type: 2-Piece Standard
• Manufacturer: Red-White Valve Corp

Technical Specifications

• Nominal Size: 4 in
• Orifice Size: 3.94 in
• Pressure Rating: 200 lb WOG
• Temperature Rating: 250 deg F
• Inlet to Outlet Length: 10.12 in
• Top to Inlet Center: 5.64 in
• Body Material: Bronze
• Ball Material: Chrome Plated Brass
