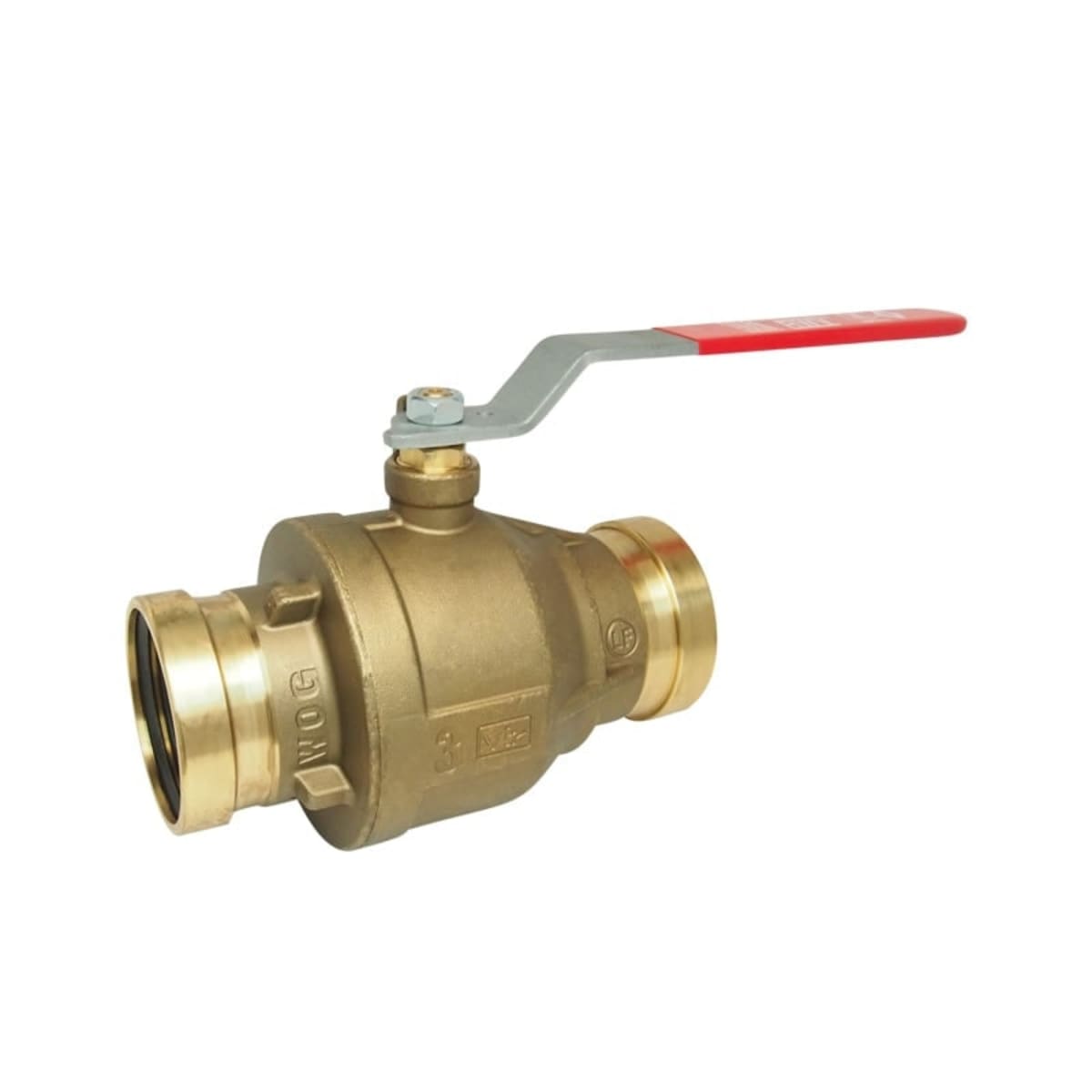

Red-White Valve 5020ABX3 Low Lead Brass XLC EzPRESS Ball Valve

Product Description

The Red-White Valve model 5020ABX3 is a low lead brass EzPRESS ball valve designed for effective fluid flow control. This valve has a two-piece standard design and features dual female EzPress ends, making installation straightforward. The valve is rated for a pressure of 200 lb WOG and can withstand temperatures up to 250 degrees Fahrenheit.

• Full port design for maximum flow.
• Compatible with XL series jaws and easily adjustable.
• Blow-out proof stem for added safety and reliability.

Product Highlights

This valve is ideal for plumbing and HVAC applications where safe and efficient liquid and gas flow is necessary.

Product Information

Standard Information

• Manufacturer: Red-White Valve Corp
• MPN: 5020ABX3

Technical Specifications

• Ball Material: Chrome Plated Brass
• Body Material: Bronze
• End Style: Dual Female EzPress
• Inlet to Outlet Length: 9.45 inches
• Nominal Size: 3 inches
• Orifice Size: 3.07 inches
• Port Type: Full
• Pressure Rating: 200 lb WOG
• Temperature Rating: 250 degrees Fahrenheit
• Softgoods Material: PTFE
• Trim Material: Brass Stem and PTFE Seat
