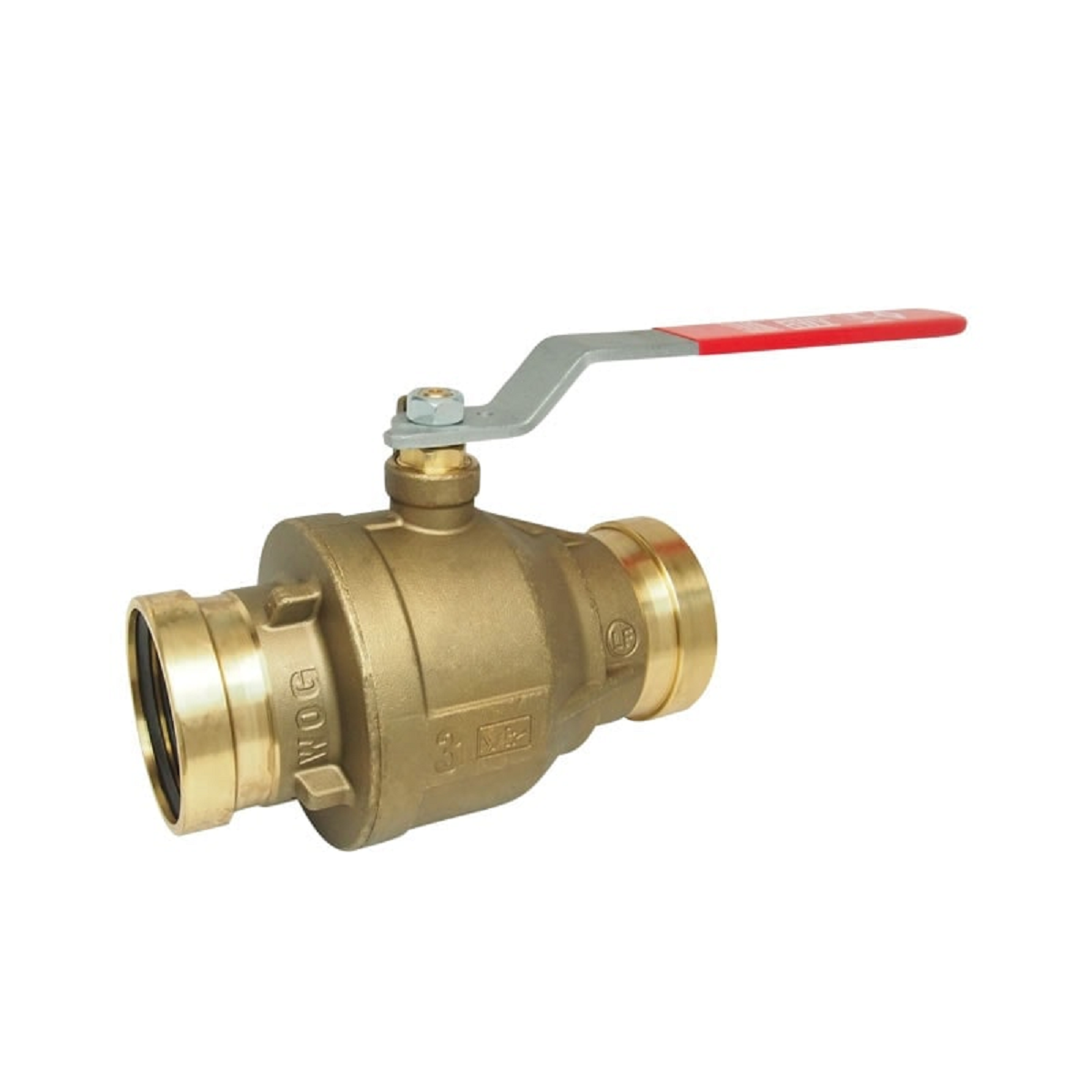

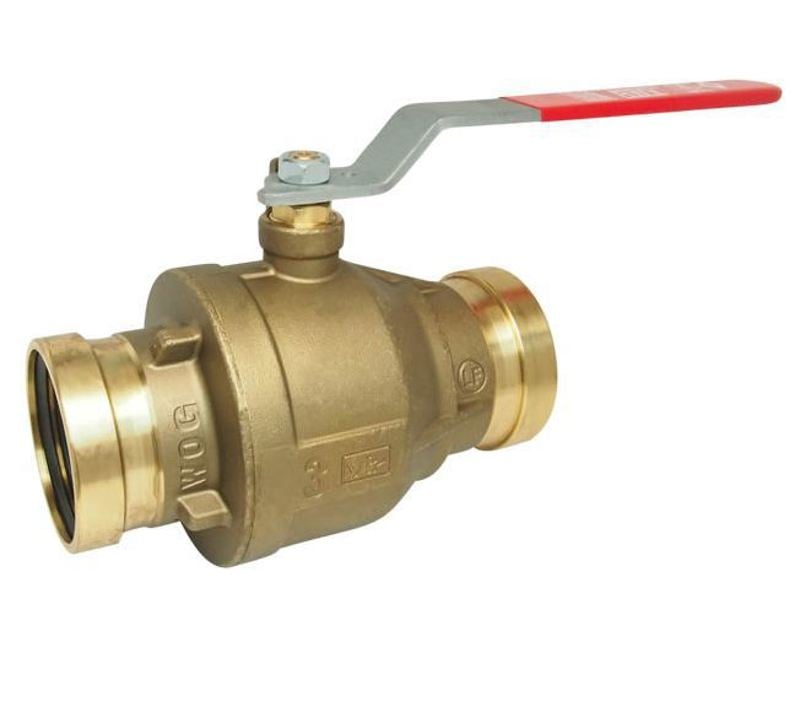

RED-WHITE VALVE 5020ABX DZR Lead Free Brass Full Port EzPress Ball Valve 2-1/2

Product Description

The RED-WHITE VALVE 5020ABX is a DZR lead-free brass full port ball valve. This valve features dual EzPress ends for easy installation. The chrome-plated ball and PTFE seats ensure durability and a reliable seal. This valve is designed for various plumbing and heating applications.

• DZR lead free brass body
• Full port design
• Suitable for high-pressure applications

Product Highlights

The RED-WHITE VALVE 5020ABX is ideal for professional plumbers and contractors. It meets various regulatory standards and provides a long-lasting solution for plumbing needs.

Product Information

Standard Information

• Type: Ball Valve
• Connection Type: EzPress x EzPress

Technical Specifications

• Seat Material: PTFE
• Stem Material: Lead Free Brass
• Ball Material: Lead Free Brass / Chrome plated
• Size: 2-1/2 inches
• Material: Lead Free DZR Brass
• Operating Temperature [Min]: 15 °F
• Operating Temperature [Max]: 160 °F
• Operating Pressure [Max]: 200 psi
• Cv Coefficient: 450
• Valve Operator: Lever Handle
• Valve Operator Material: Steel / Zinc plated
• Length A: 8.47 inches
• Height H: 4.69 inches
• Length L: 11.08 inches
• Collection: EzPress
• Connections: Female Ez Press x Female Ez Press
• Finish: Chrome Plated Ball
• Lead Free: Yes
• WOG Pressure Rating: 200 PSIG
• Body Style: 2 piece
• Bore: Full Port
• Approval: NSF, ANSI
