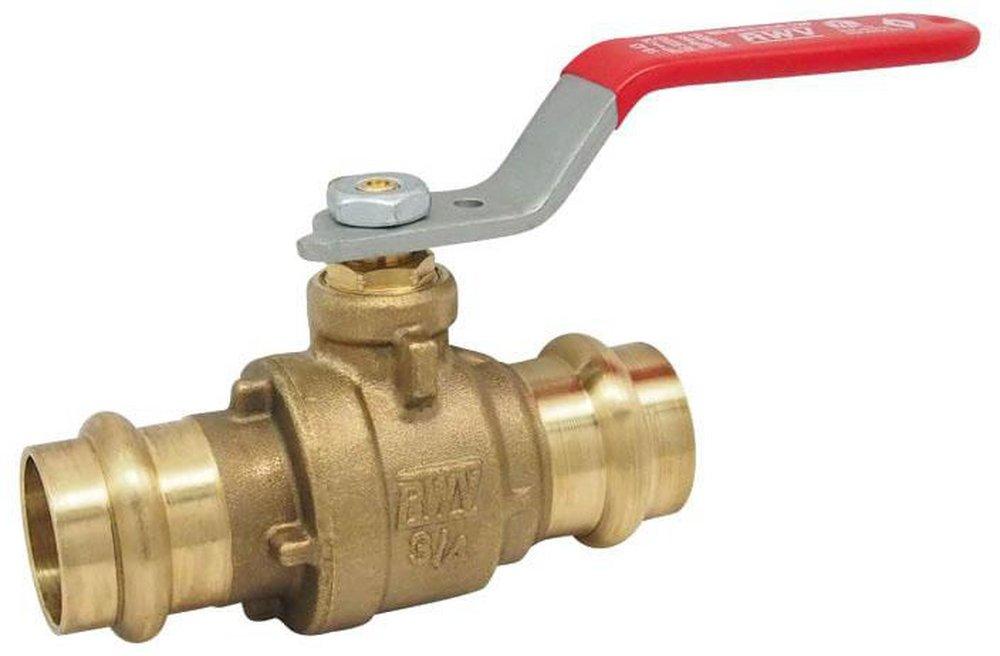

Red-White Valve 5020AB3/4 Figure 5020AB 3/4 in DZR Brass Full Port Press 600# Ball Valve

Product Description

The Red-White Valve MPN 5020AB3/4 is a durable, lead-free, DZR brass full port ball valve. This valve is designed for various plumbing and HVAC applications where secure flow control is essential. The dual EzPress ends provide quick and efficient installation.

• Lead-free DZR brass construction
• Full port design for maximum flow
• Rated for 600# WOG

Product Highlights

This ball valve is ideal for both residential and commercial plumbing systems. Its full port design allows for unrestricted flow and enhanced performance.

Product Information

Standard Information

• Manufacturer: Red-White Valve Corp
• MPN: 5020AB3/4

Technical Specifications

• Body Material: Bronze
• Ball Material: Chrome Plated Low Lead Brass
• End Style: Dual Female EzPress
• Nominal Size: 3/4 in
• Orifice Size: 0.79 in
• Pressure Rating: 600 lb WOG
• Temperature Rating: 266 deg F
• Inlet to Outlet Length: 3.54 in
• Top to Inlet Center: 2.26 in
• Series: 5020AB
• Trim Material: Brass Stem and PTFE Seat
• Type: 2-Piece
