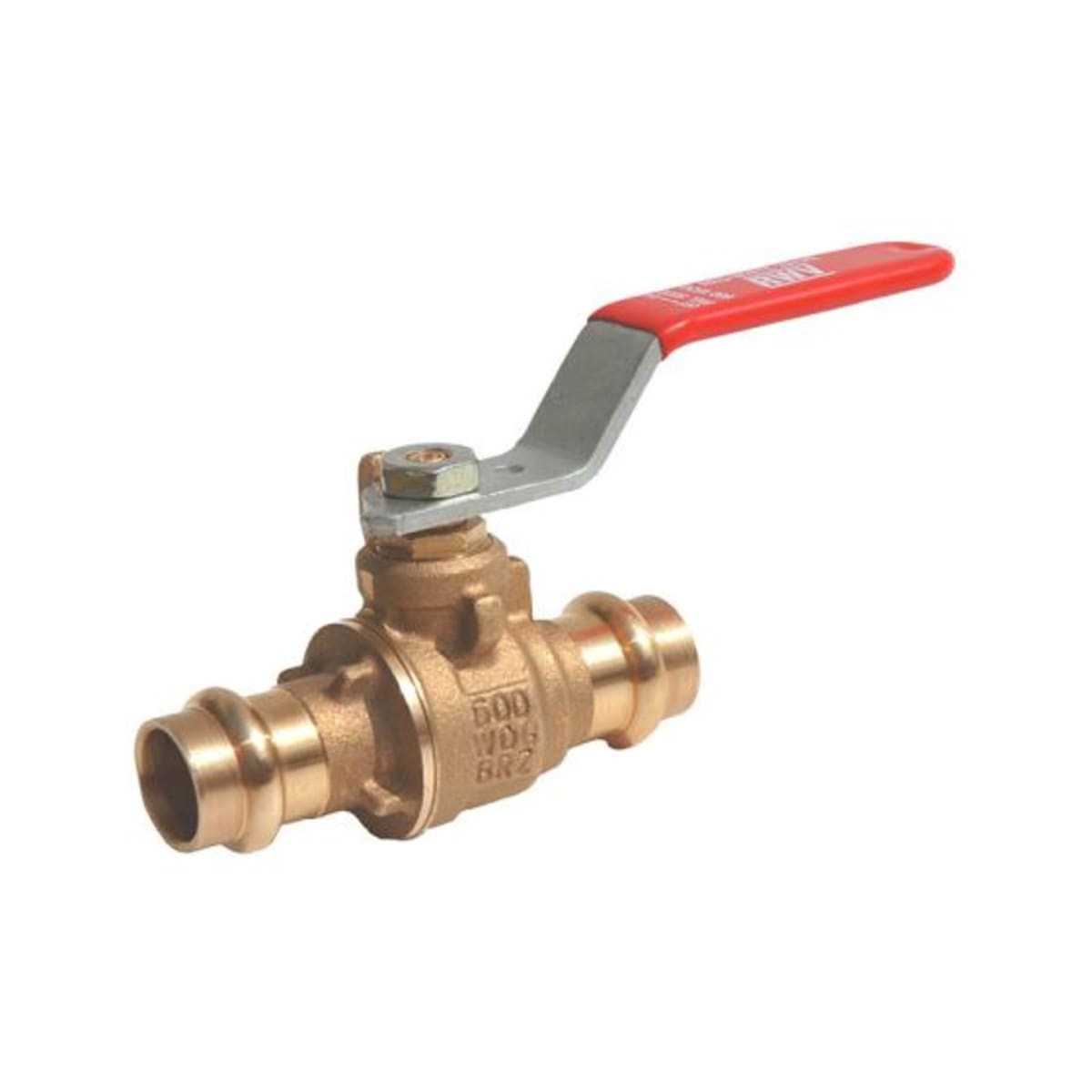

Red-White Valve 5020AB 2 Low Lead Brass XL EzPRESS Ball Valve

Product Description

The Red-White Valve 5020AB 2 is a low lead brass XL EzPRESS ball valve designed for superior performance in plumbing systems. This valve features a 2-inch nominal size and dual female EzPress connections, making it suitable for a range of applications. It operates at a pressure rating of six hundred pounds water over gas (WOG) and withstands temperatures up to two hundred sixty-six degrees Fahrenheit. The chrome-plated low lead brass ball ensures longevity and reliability.

• Two-piece body construction
• Full port design for maximum flow
• Blow-out proof stem for added safety

Product Highlights

This valve is built for easy installation and maintenance while providing excellent flow control.

Product Information

Standard Information

• Manufacturer: Red-White Valve Corp
• Series: 5020AB

Technical Specifications

• Ball Material: Chrome Plated Low Lead Brass
• Body Material: Bronze
• End Style: Dual Female EzPress
• Inlet to Outlet Length: 6.18 inches
• Nominal Size: 2 inches
• Orifice Size: 1.97 inches
• Port Type: Full
• Pressure Rating: 600 lb WOG
• Softgoods Material: PTFE
• Temperature Rating: 266 degrees Fahrenheit
• Top to Inlet Center: 3.58 inches
• Trim Material: Brass Stem and PTFE Seat
• Type: 2-Piece
