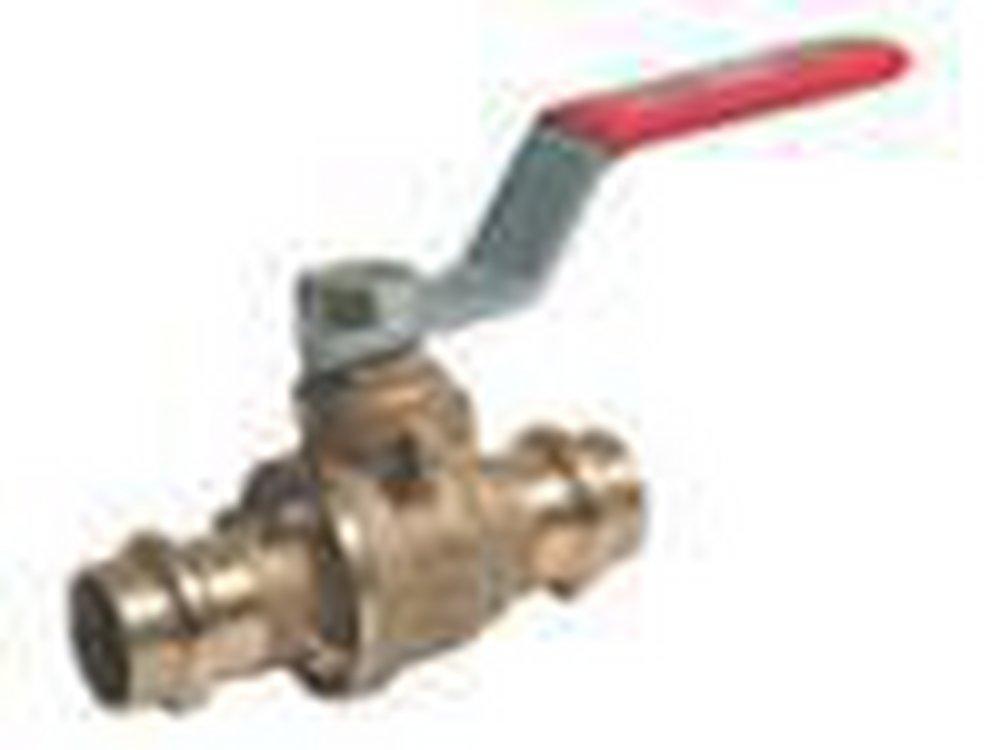

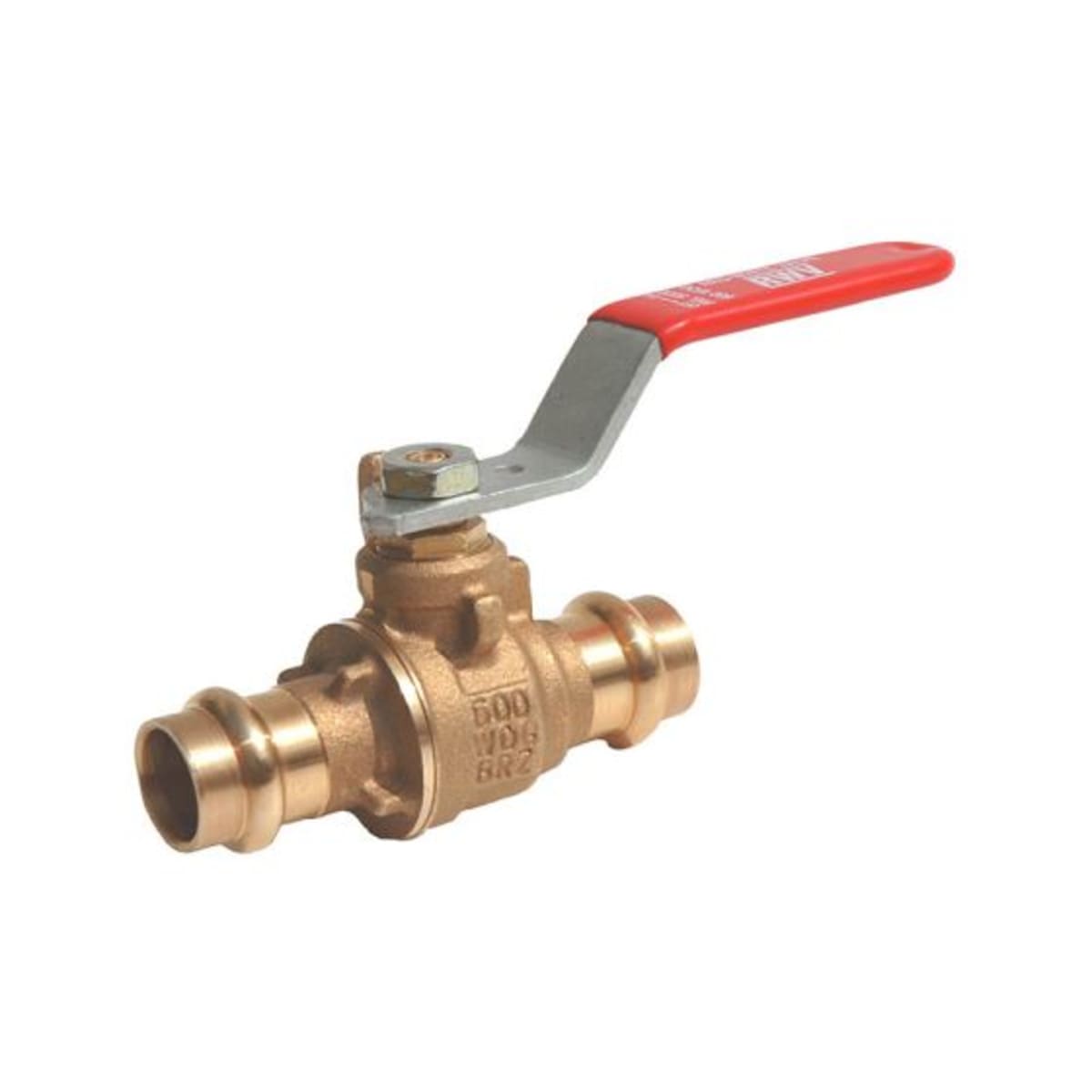

Red-White Valve 5020AB 1 in. Brass Full Port Press 600# Ball Valve

Product Description

The Red-White Valve 5020AB 1 in. Brass Full Port Press 600# Ball Valve features a robust brass construction designed for durability and reliability in various plumbing applications. This valve is suited for both commercial and residential systems requiring excellent flow control.

• Full port design for maximum flow
• Lead-free construction for safe water supply
• Dual female EzPress ends for easy installation

Product Highlights

This valve meets industry standards for safety and performance, making it an excellent choice for plumbing professionals.

Product Information

Standard Information

• Brand: Red-White Valve
• MPN: 5020AB 1

Technical Specifications

• Body Material: Bronze
• Ball Material: Chrome Plated Low Lead Brass
• Nominal Size: 1 in
• Orifice Size: 0.98 in
• Pressure Rating: 600 lb WOG
• Temperature Rating: 266 deg F
• Connection Type: Press x Press
• End Style: Dual Female EzPress
• Length from Inlet to Outlet: 3.9 in
• Trim Material: Brass Stem and PTFE Seat
• Softgoods Material: PTFE
