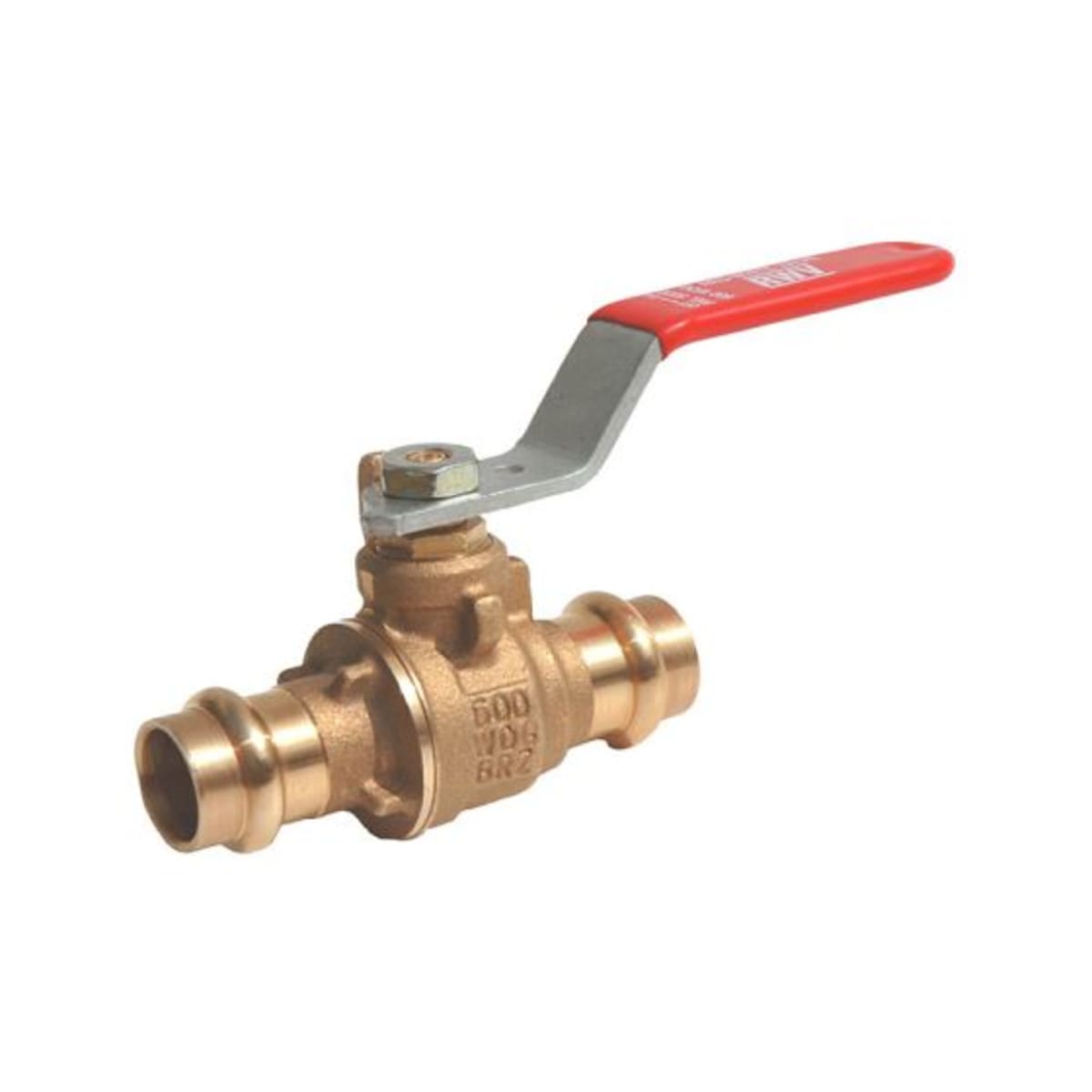

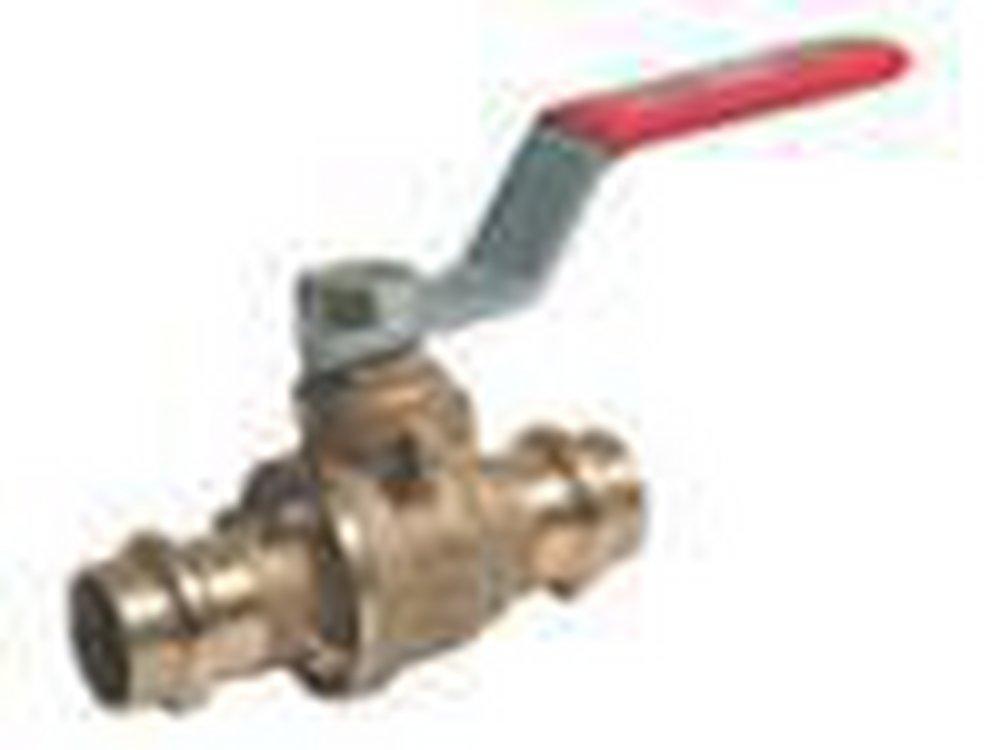

Red-White Valve 5020AB 1-1/4 Brass Full Port Press 600# Ball Valve

Product Description

The Red-White Valve 5020AB 1-1/4 is a brass full port press ball valve designed for efficiency and reliability. This valve is suitable for various plumbing and HVAC applications, ensuring optimal flow control.

• Lead-free brass construction.
• Compatible with dual female EzPress fittings.
• Rated for 600 pounds of working pressure.

Product Highlights

This valve features a chrome-plated low lead brass ball and a blow-out proof stem, making it durable and safe for use in potable water systems.

Product Information

Standard Information

• Brand: Red-White Valve
• MPN: 5020AB 1-1/4

Technical Specifications

• Nominal Size: 1-1/4 inches
• Orifice Size: 1.26 inches
• Port Type: Full
• Pressure Rating: 600 lb WOG
• Temperature Rating: 266 degrees Fahrenheit
• Inlet to Outlet Length: 4.29 inches
• Top to Inlet Center: 2.82 inches
• Body Material: Bronze
• Ball Material: Chrome Plated Low Lead Brass
• Softgoods Material: PTFE
• Trim Material: Brass Stem and PTFE Seat
