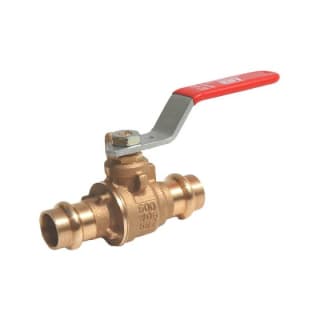

Red-White Valve 5020AB 1-1/2 Low Lead Brass XL EzPRESS Ball Valve 1-1/2

Product Description

The Red-White Valve model 5020AB 1-1/2 is a lead-free 2-piece ball valve designed for various plumbing applications. This valve features dual female EzPress connections, suitable for copper piping systems. With a pressure rating of 600 lb WOG and a temperature rating of 266 degrees Fahrenheit, this valve can handle a wide range of conditions.

• Lead-free construction for safe drinking water
• Durable chrome plated low lead brass ball
• Blow-out proof stem enhances safety

Product Highlights

This ball valve is ideal for installing in residential and commercial plumbing systems where the avoidance of lead exposure is crucial.

Product Information

Standard Information

• Brand: Red-White Valve Corp
• MPN: 5020AB 1-1/2

Technical Specifications

• Type: 2-Piece
• Series: 5020AB
• Nominal Size: 1-1/2 inches
• Inlet to Outlet Length: 5.24 inches
• Top to Inlet Center: 3.29 inches
• Ball Material: Chrome Plated Low Lead Brass
• Body Material: Bronze
• Orifice Size: 1.57 inches
• Port Type: Full
• Pressure Rating: 600 lb WOG
• Temperature Rating: 266 degrees Fahrenheit
• Softgoods Material: PTFE
• Trim Material: Brass Stem and PTFE Seat
