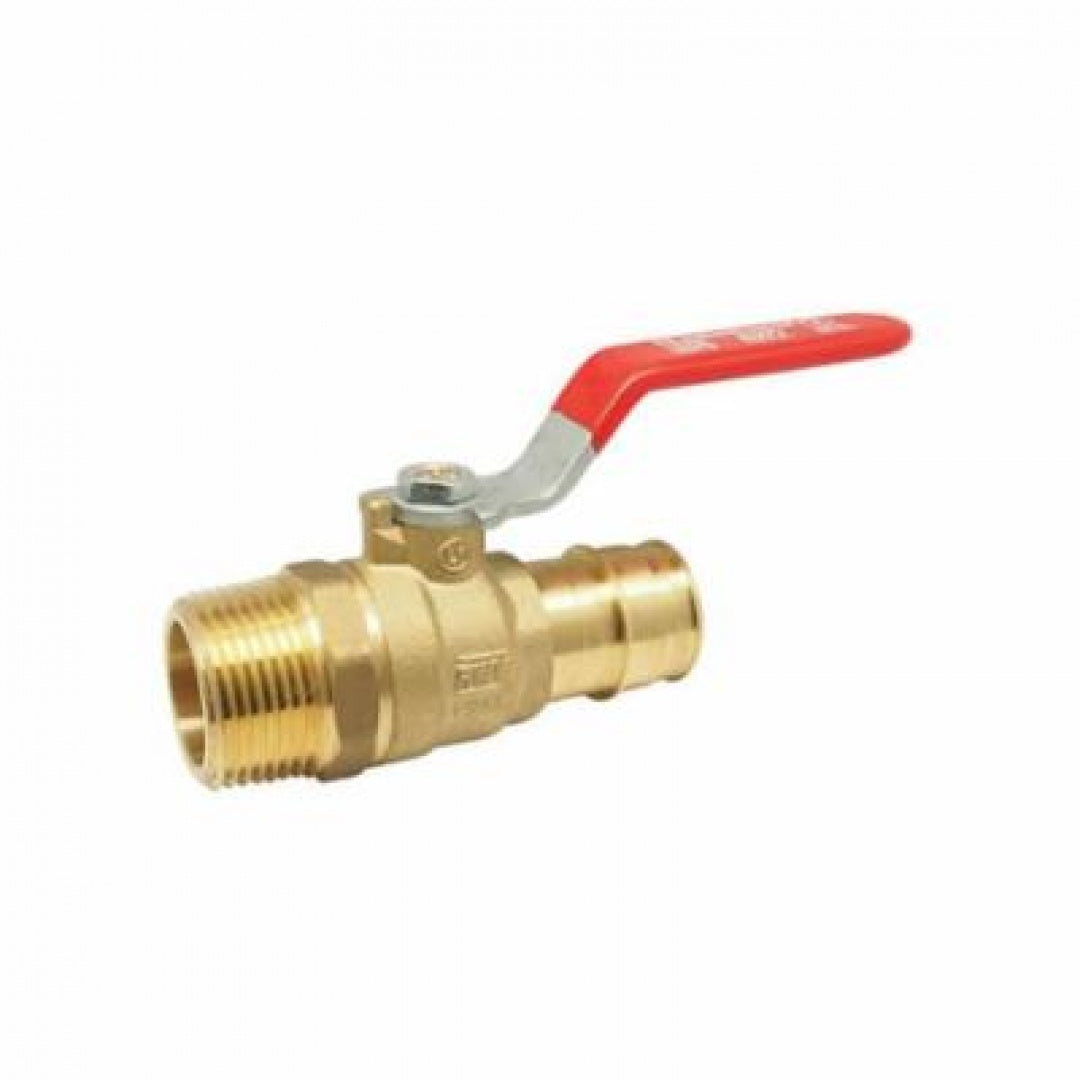

Red-White Valve 5018AB1 AB PEX F1960 X MNPT BALL VALVE

Product Description

Red-White Valve offers the 5018AB1 AB PEX F1960 x MNPT ball valve. This valve features a barb x MNPT connection and is constructed with chrome plated low lead brass. It operates under a pressure rating of four hundred pounds WOG and is suitable for temperatures between fifteen to one hundred sixty degrees Fahrenheit.

• Blow-out proof stem
• F1960 certifications for PEX expansion pipe fittings
• Double NBR O-ring/packing

Product Highlights

Designed for use with PEX tubing, this ball valve ensures secure connections and durability.

Product Information

Standard Information

• Manufacturer: Red-White Valve Corp
• Series: 5018AB

Technical Specifications

• Ball Material: Chrome Plated Low Lead Brass
• Body Material: Brass
• End Style: Barb x MNPT
• Inlet to Outlet Length: 3.54 inches
• Nominal Size: 1 inch
• Orifice Size: 0.73 inches
• Port Type: Regular
• Pressure Rating: 400 lb WOG
• Softgoods Material: Double NBR
• Temperature Rating: 15 to 160 degrees Fahrenheit
• Top to Inlet Center: 1.77 inches
• Trim Material: Low Lead Brass Stem and PTFE Seat
