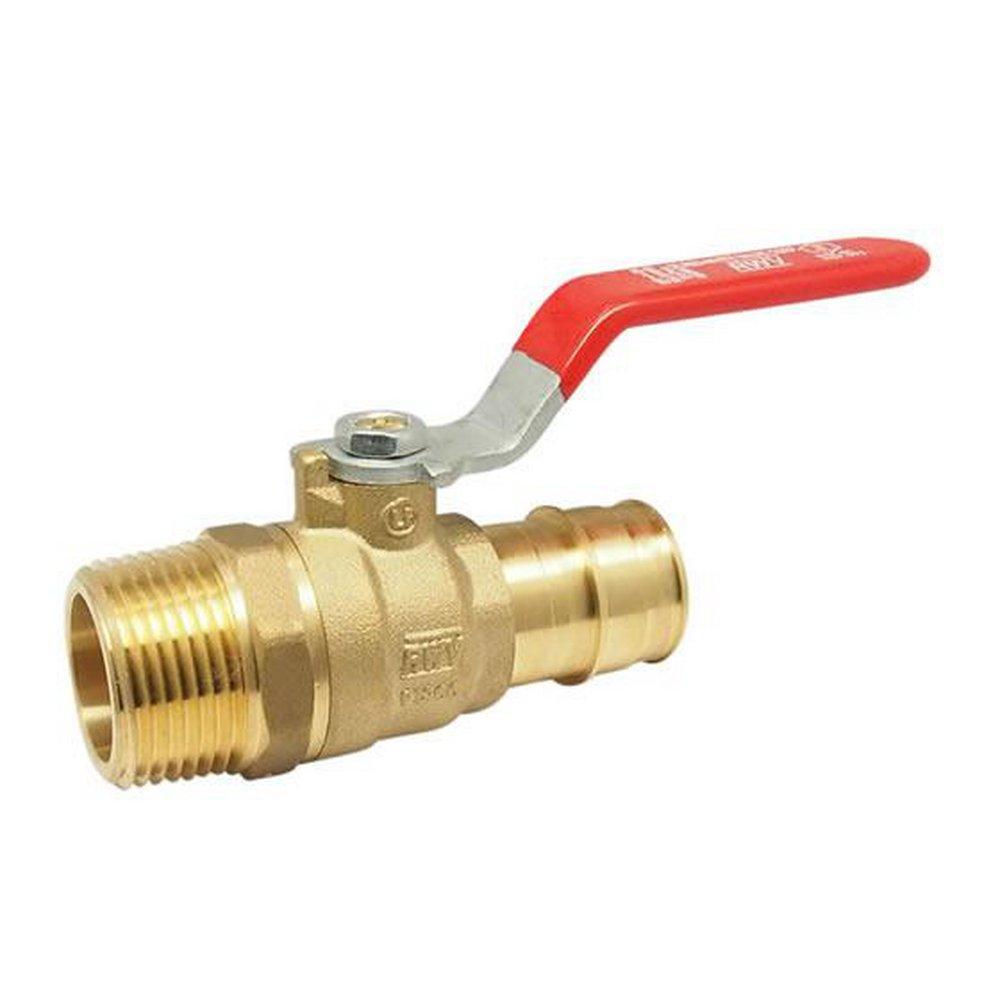

Red-White Valve 5018AB 3/4 in. Brass Full Port F1960 x MNPT 400# Ball Valve

Product Description

The Red-White Valve 5018AB 3/4 in. Brass Full Port F1960 x MNPT 400# Ball Valve is designed for reliable flow control in plumbing systems. This lead-free brass valve offers durability and compliance with industry standards.

• Material: Lead-free brass body for safety
• Full port design ensures maximum flow
• Rated for 400 lb WOG pressure

Product Highlights

This ball valve is suitable for use with PEX tubing and ensures a secure and leak-free connection.

Product Information

Standard Information

• Manufacturer: Red-White Valve Corp
• MPN: 5018AB 3/4

Technical Specifications

• Ball Material: Chrome Plated Low Lead Brass
• Body Material: Brass
• End Style: Barb x MNPT
• Inlet to Outlet Length: 2.93 inches
• Nominal Size: 3/4 inches
• Orifice Size: 1/2 inches
• Port Type: Regular
• Pressure Rating: 400 lb WOG
• Temperature Rating: 15 to 160 degrees Fahrenheit
• Top to Inlet Center: 1.77 inches
• Softgoods Material: Double NBR
