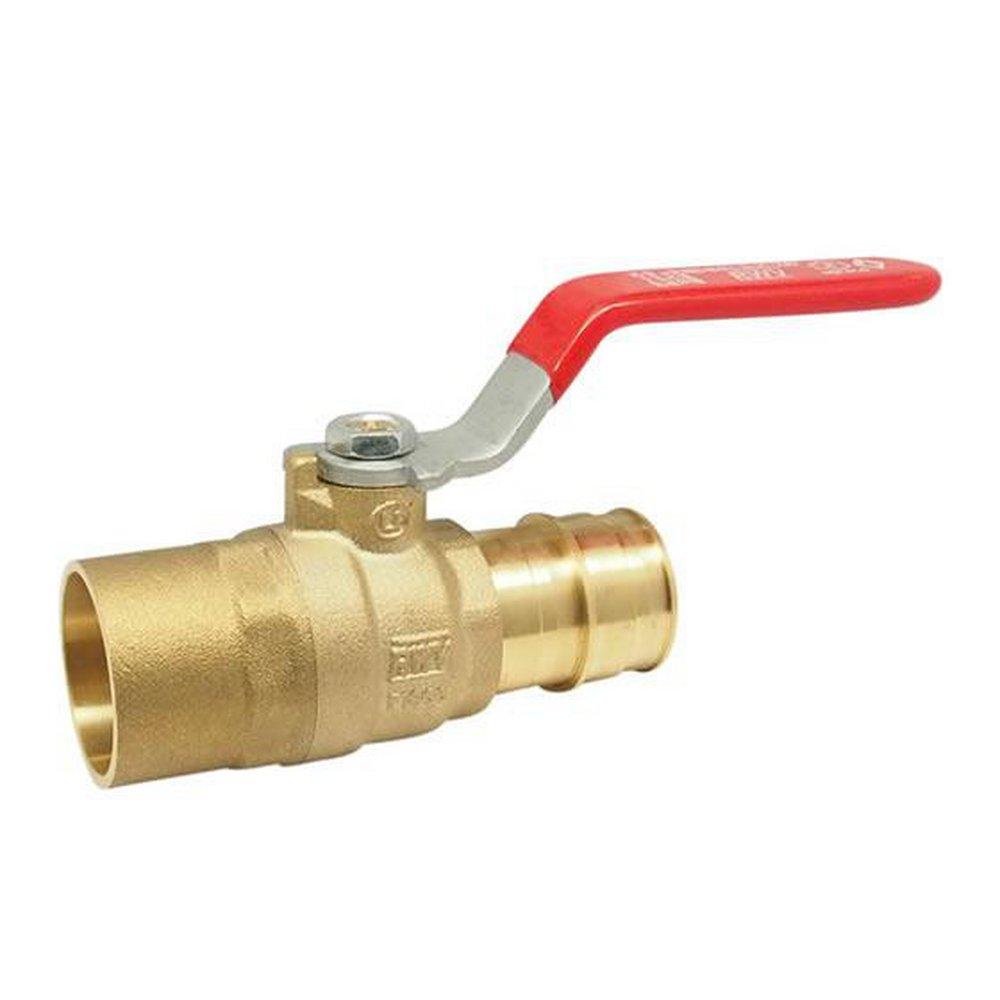

Red-White Valve 5017AB 3/4 AB PEX F1960 X SOLDR BALL VLV

Product Description

Red-White Valve offers the 5017AB 3/4 AB PEX F1960 X SOLDR BALL VLV. This product is suitable for various plumbing applications, particularly with PEX tubing. It is designed for high pressure and temperature ratings.

• Lead-free construction for safe use
• Compatible with PEX tubing
• Features a blow-out proof stem

Product Highlights

This valve allows connections using barb and solder, providing versatility for many plumbing projects.

Product Information

Standard Information

• Brand: Red-White Valve Corp
• MPN: 5017AB 3/4

Technical Specifications

• Ball Material: Chrome Plated Low Lead Brass
• Body Material: Brass
• End Style: Barb x Solder
• Inlet to Outlet Length: 2.93 inches
• Nominal Size: 3/4 inches
• Orifice Size: 1/2 inches
• Port Type: Regular
• Pressure Rating: 400 lb WOG
• Series: 5017AB
• Softgoods Material: Double NBR
• Temperature Rating: 15 to 160 degrees F
• Top to Inlet Center: 1.77 inches
• Trim Material: Low Lead Brass Stem and PTFE Seat
