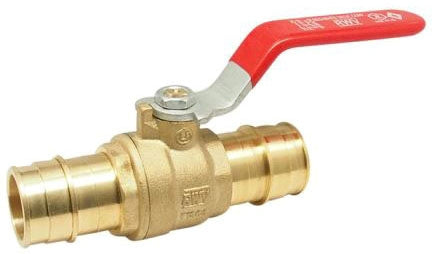

Red-White Valve 5015AB_3/4 PEX Barb Ball Valve 300 PSI Lever Handle Lead-Free

Product Description

The Red-White Valve 5015AB_3/4 PEX Barb Ball Valve is an essential component for plumbing systems, providing a durable and reliable connection for PEX piping. This lever-operated valve is made from dezincification-resistant brass, ensuring longevity and resistance against corrosion.

• Easy-to-operate lever handle design.
• Pressure rated up to 300 PSI at temperatures from 15 to 160 degrees Fahrenheit.
• Lead-free construction, compliant with NSF/ANSI 61/372 and CSA B125.3 standards.

Product Highlights

Constructed with DZR brass and features a chrome-plated brass ball for improved durability and performance. The PTFE seat and NBR seal enhance its efficiency by providing excellent sealing capabilities.

Product Information

Standard Information

• Manufacturer: Red-White Valve
• MPN: 5015AB_3/4

Technical Specifications

• Material: DZR Brass
• Size: 3/4 Inch
• Connection Type: PEX Barb x PEX Barb
• Pressure Rating: 300 PSI at 15 to 160 Deg F, 150 PSI at 200 Deg F
• Temperature Tolerance: 15 to 200 degrees Fahrenheit
• Compliance: NSF/ANSI 61/372, AB1953, CSA B125.3
• Features: Blowout Proof Stem, Double NBR O-Ring Packing
