Red-White Valve 5015AB_2IN Ball Valve Lever Handle 2 Inch Pack of 1

Product Description

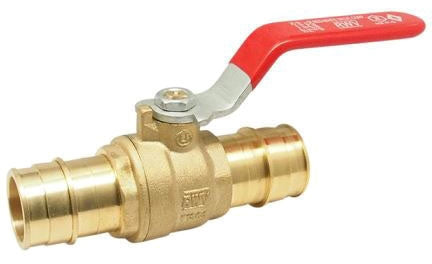

The Red-White Valve model 5015AB_2IN is a robust lever handle ball valve designed for optimal control in PEX plumbing systems. Ideal for professionals seeking reliable and efficient water flow management, this valve features a 2 inch nominal size and a pressure rating of 400 PSI WOG.

• Dezincification resistant, ensuring longevity in harsh environments.
• Lead-free composition, complying with NSF/ANSI 61/372 and AB1953 standards for safe water drinking.
• Engineered with a blowout-proof stem and double packing for enhanced durability and performance.

Product Highlights

Constructed from DZR chrome plated brass, the valve promises a corrosion-resistant body and ball. It operates efficiently up to a temperature of 200 degrees Fahrenheit and features a regular port type for standard flow control. The lever handle is made from ASTM A36 Dacromet plated steel, providing a firm and comfortable grip.

Product Information

Standard Information

• Material: DZR Brass
• Seal Type: Buna-N Rubber
Technical Specifications
Size
2 Inches
Pressure Capacity
400 PSI WOG, 300 PSI at 15 to 160 degrees Fahrenheit
Connection Type
F1960 PEX Barb
Handle
Lever Type
Standards
NSF/ANSI 61/372, AB1953, CSA B125.3/B125.14
