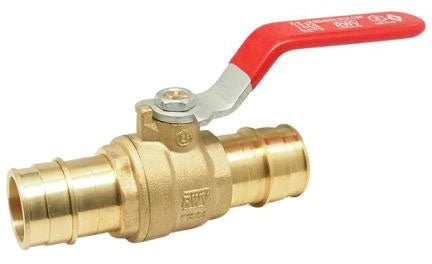

Red-White Valve 5015AB_1IN F1960 PEX Barb Ball Valve Lead-Free DZR Chrome Plated Brass

Product Description

The Red-White Valve model 5015AB_1IN is a robust ball valve designed for optimal performance in PEX plumbing systems. Engineally crafted from dezincification resistant brass with a chrome plated finish, this valve is ideal for regulating water flow in residential and commercial settings.

• Lead-free DZR brass construction ensures safety and durability.
• Equipped with a lever handle for easy operation.
• Suitable for 400 PSI water, oil, and gas (WOG).

Product Highlights

This valve features a regular port and a blowout-proof stem, making it a reliable choice for demanding applications. The NSF/ANSI 61 and 372 certified materials affirm its compliance with stringent standards.

Product Information

Standard Information

• Product Name: Red-White Valve 5015AB_1IN Ball Valve
• Category: Plumbing - PEX Fittings

Technical Specifications

• Material: DZR Brass, Chrome Plated
• Size: 1 inch
• Pressure Rating: 400 PSI WOG, 300 PSI at 15 to 160 Deg F
• Temperature Range: Up to 200 Degrees Fahrenheit
• Connection Type: F1960 PEX Barb
• Standards: NSF/ANSI 61/372, AB1953, CSA B125.3/B125.14
