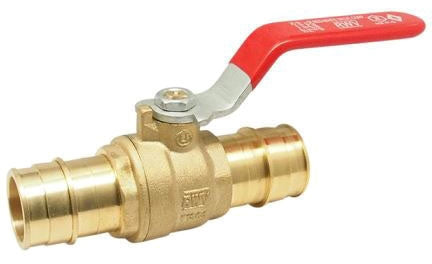

Red-White Valve 5015AB_1/2 1/2 Expansion Pex Ball Valve

Product Description

The Red-White Valve 5015AB_1/2 is a 1/2 inch ball valve designed for PEX connections. It features a lever handle for easy operation and can handle pressures up to 400 PSI. This valve is lead-free and made from durable DZR chrome plated brass, ensuring long-lasting performance.

• Actuation Type: Lever Handle
• Compatible with F1960 PEX Barb connections
• Temperature rating: Up to 200 degrees Fahrenheit

Product Highlights

This valve is suitable for various plumbing applications, including water, gas, and oil systems.

Product Information

Standard Information

• Brand: Red-White Valve
• MPN: 5015AB_1/2

Technical Specifications

• Nominal Size: 1/2 inch
• End Connection: F1960 PEX Barb x F1960 PEX Barb
• Pressure Rating: 400 PSI WOG, 300 PSI at 15 to 160 degrees Fahrenheit
• Body Material: DZR Brass
• Ball Material: DZR Chrome Plated Brass
• Seal Material: Buna-N Rubber
• Seat Material: PTFE
• Inclusions/Features: Blowoutproof stem, double packing, stem extension
• Applicable Standards: NSF/ANSI 61/372, AB1953, CSA B125.3/B125.14
