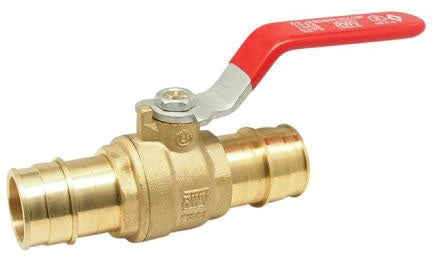

Red-White Valve 5015AB_1-1/4 1-1/4 in. Brass Full Port F1960 400# Ball Valve

Product Description

The Red-White Valve 5015AB_1-1/4 is a 1-1/4 inch ball valve designed for PEX applications. This valve features an F1960 PEX Barb connection on both ends. It operates under a pressure rating of 400 PSI WOG and is built from lead-free, DZR chrome plated brass material. The design includes a lever handle for easy operation and a regular port type for efficient flow management.

• Lead-free and compliant with safety standards
• Constructed with a DZR brass body
• Includes blowout proof stem and double packing for reliability

Product Highlights

Ideal for plumbing projects requiring robust and lead-free components.

Product Information

Standard Information

• Manufacturer: Red-White Valve
• UPC: 67077970316

Technical Specifications

• Nominal Size: 1-1/4 inch
• End Connection: F1960 PEX Barb x F1960 PEX Barb
• Ball Material: ASTM B927 C27453 DZR Chrome Plated Brass
• Body Material: ASTM B927 C27453 DZR Brass
• Seal Material: Buna-N Rubber
• Seat Material: PTFE
• Stem Material: ASTM B927 C27453 DZR Brass
• Temperature Rating: 200 Deg F
• Pressure Rating: 400 PSI WOG, 300 PSI at 15 to 160 Deg F
• Inclusions/Features: Blowout proof stem, double packing, stem extension
• Applicable Standards: NSF/ANSI 61/372, AB1953, CSA B125.3/B125.14
