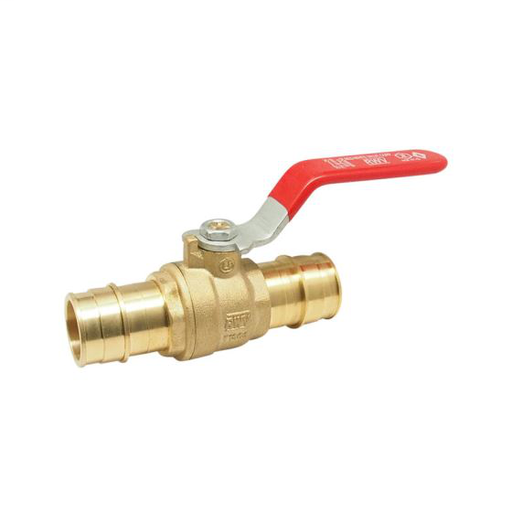

Red-White Valve 5015AB2 AB PEX F1960 Ball Valve - Lead Free

Product Description

The Red-White Valve 5015AB2 is a lead-free AB PEX F1960 ball valve. This valve features a two-inch nominal size and is designed with a barb end style for easy installation with PEX tubing. It can handle a pressure rating of up to 400 pounds WOG and operates efficiently within a temperature range of fifteen to one hundred sixty degrees Fahrenheit. The chrome plated low lead brass ball ensures durability and reliability in various plumbing applications.

• Blow-out proof stem for enhanced safety
• F1960 certifications for PEX expansion pipe fittings
• Double NBR O-ring for a secure seal

Product Highlights

The 5015AB2 is suitable for residential and commercial use where reliable water flow control is required. It is ideal for use in PEX plumbing systems and complies with necessary standards for safety and performance.

Product Information

Standard Information

• Manufacturer: Red-White Valve Corp
• Series: 5015AB

Technical Specifications

• Ball Material: Chrome Plated Low Lead Brass
• Body Material: Brass
• End Style: Barb
• Pressure Rating: 400 lb WOG
• Temperature Rating: 15 to 160 deg F
• Nominal Size: 2 in
• Orifice Size: 1.46 in
• Inlet to Outlet Length: 6.67 in
• Top to Inlet Center: 2.7 in
• Trim Material: Low Lead Brass Stem and PTFE Seat
• Softgoods Material: Double NBR
• Port Type: Regular
