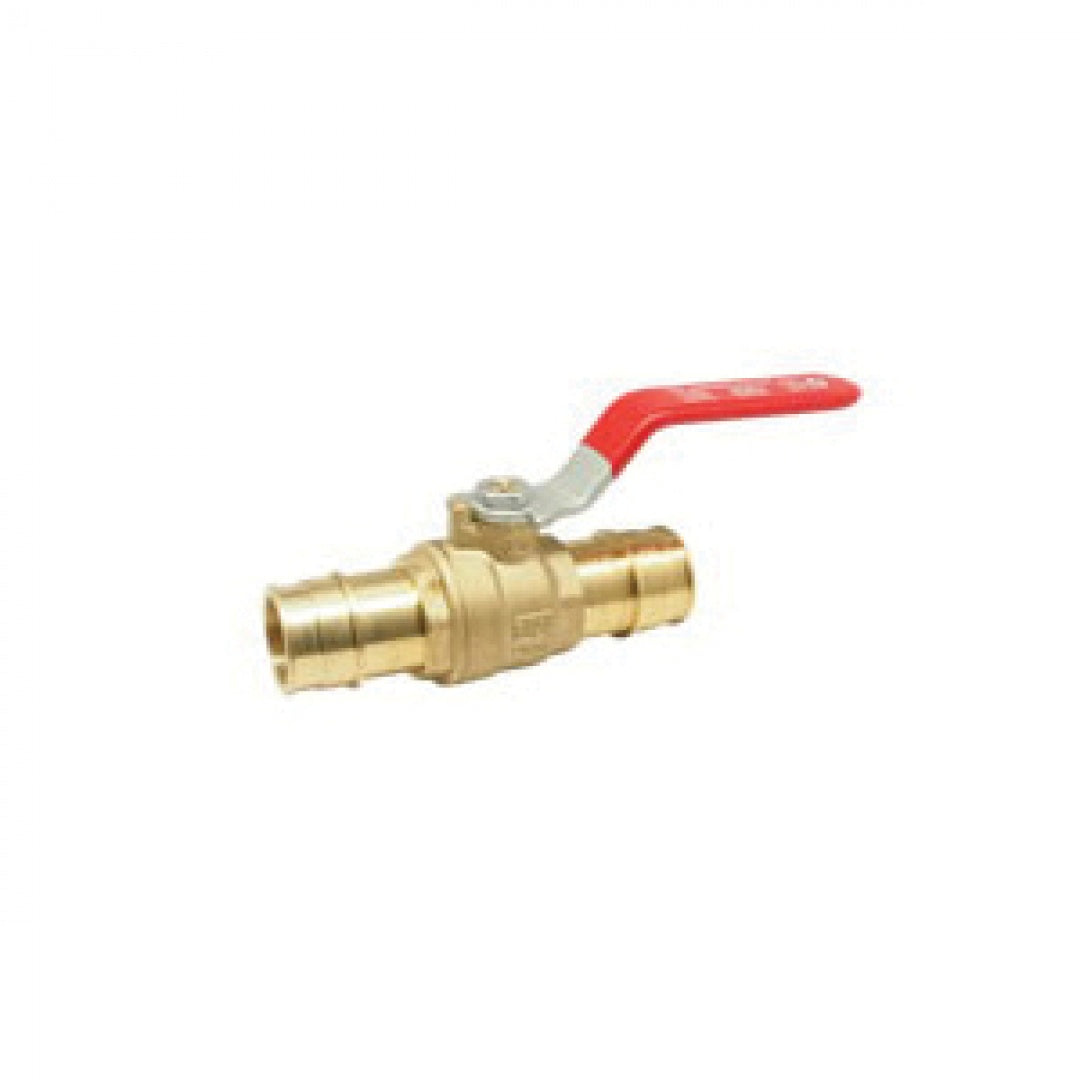

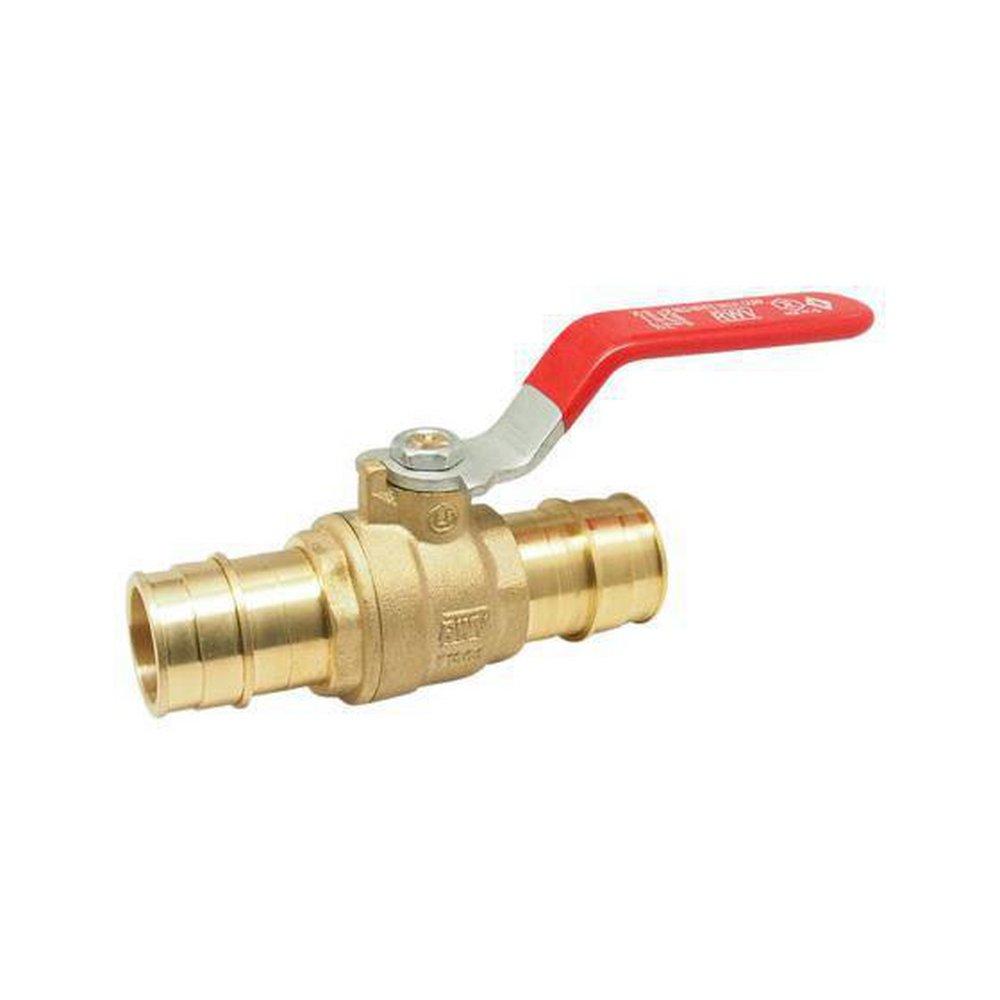

Red-White Valve 5015AB 1 in. Brass Full Port F1960 400# Ball Valve

Product Description

The Red-White Valve 5015AB is a one inch brass full port ball valve designed for PEX systems. Built for use with gas, oil, and water, it is essential for efficient plumbing installations. This valve features a robust construction with a brass body and a low-lead brass ball, ensuring long-term reliability and compliance with safety standards.

• Full port design for maximum flow efficiency.
• Compatible with PEX tubing for easy installation.
• Certified for safety standards including ANSI/NFS 61 and ASTM-F1960.

Product Highlights

This ball valve incorporates double NBR O-ring packing and a blow-out proof stem, enhancing its durability and functionality. It operates effectively with pressures up to 400 lbs, making it suitable for various applications in the plumbing and HVAC industries.

Product Information

Standard Information

• Brand: Red-White Valve
• MPN: 5015AB1

Technical Specifications

• Nominal Size: 1 in
• Orifice Size: 0.73 in
• Inlet to Outlet Length: 3.86 in
• Top to Inlet Center: 1.77 in
• Pressure Class: 400 lb
• Media: Gas/Oil/Water
• Ball Material: Brass
• Body Material: Brass
