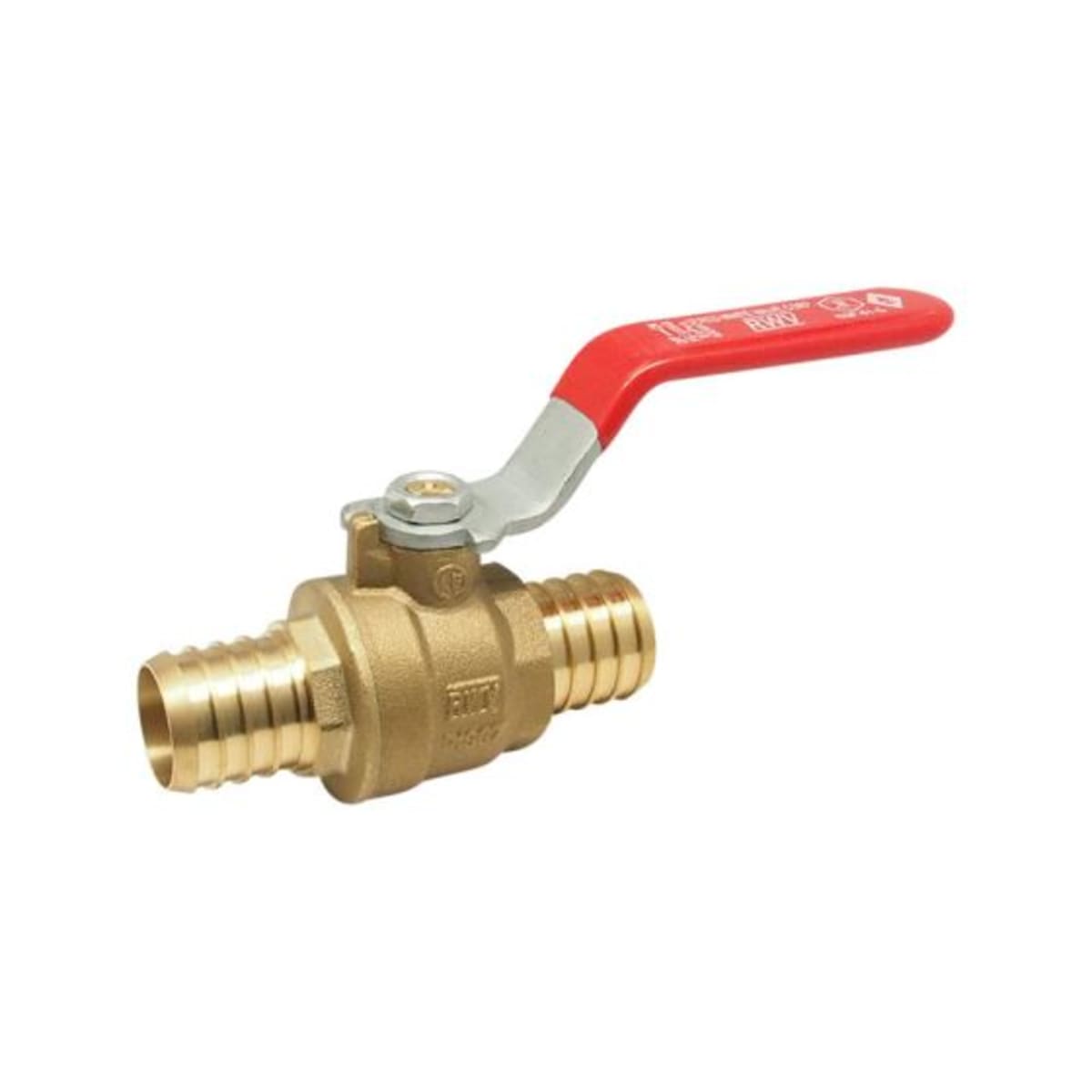

Red-White Valve 5009AB1 AB PEX F1807 Ball Valve Lead Free

Product Description

The Red-White Valve 5009AB1 is a lead-free AB PEX F1807 ball valve designed for reliable performance in various plumbing applications. This ball valve features a nominal size of one inch and a barb end style. It accommodates a temperature range from fifteen to one hundred sixty degrees Fahrenheit with a pressure rating of four hundred pounds WOG.

• Blow-out proof stem
• NBR O-ring and packing
• Compatible with PEX tubing

Product Highlights

The valve is compact with dimensions of three point fifteen inches inlet to outlet length and one point eighty-five inches top to inlet center. Its construction comprises chrome plated low lead brass, ensuring compliance with safety standards.

Product Information

Standard Information

• Manufacturer: Red-White Valve Corp
• MPN: 5009AB1

Technical Specifications

• Ball Material: Chrome Plated Low Lead Brass
• Body Material: Brass
• End Style: Barb
• Inlet to Outlet Length: 3.15 inches
• Nominal Size: 1 inch
• Orifice Size: 0.71 inches
• Port Type: Regular
• Pressure Rating: 400 lb WOG
• Series: 5009AB
• Softgoods Material: NBR
• Temperature Rating: 15 to 160 degrees Fahrenheit
• Top to Inlet Center: 1.85 inches
• Trim Material: Low Lead Brass Stem and PTFE Seat
