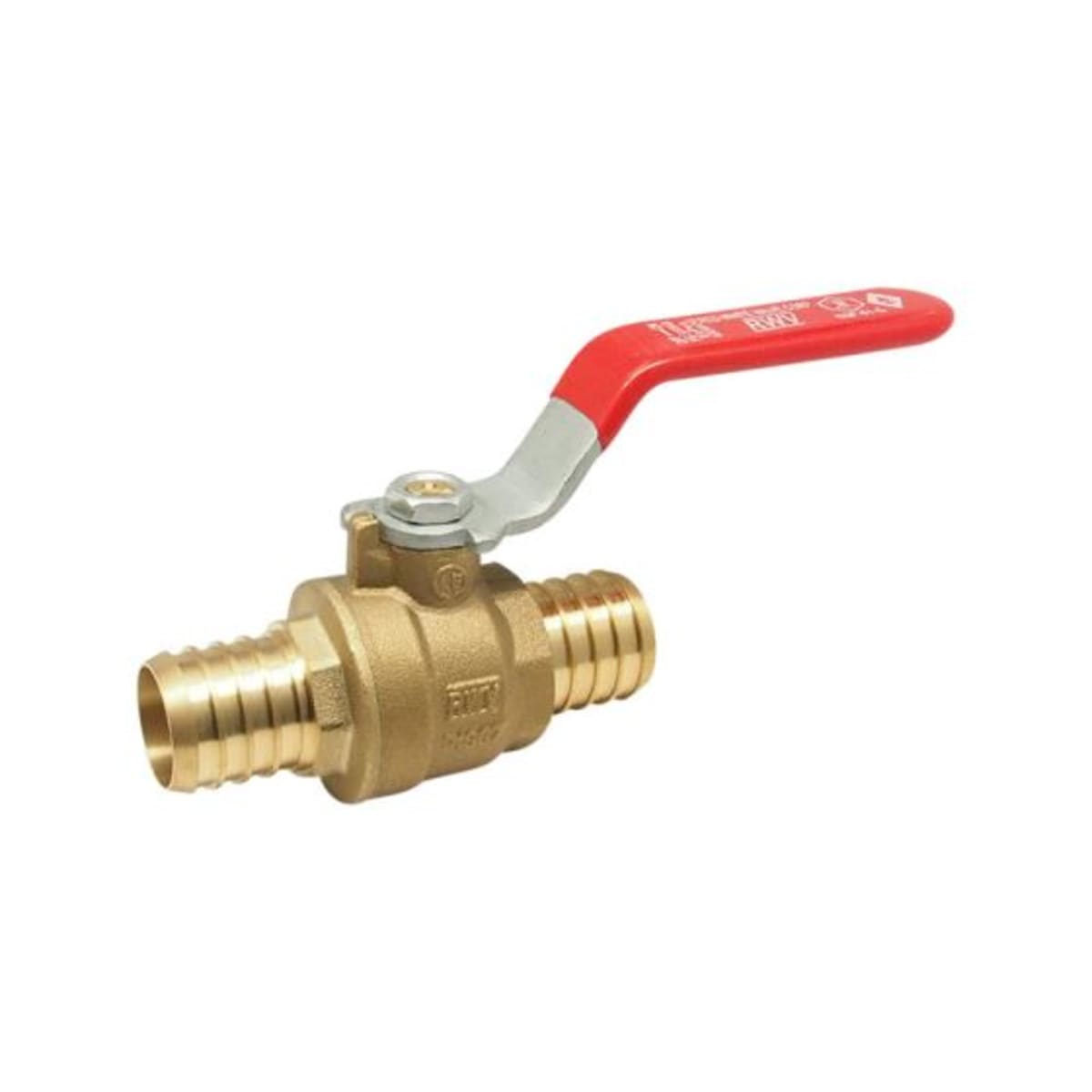

Red-White Valve 5009AB 3/4 AB PEX F1807 Ball Valve

Product Description

The Red-White Valve 5009AB 3/4 is an AB PEX F1807 ball valve designed for PEX tubing applications. It features a lead-free construction for safety and compliance with health standards.

• Blow-out proof stem for enhanced reliability
• Temperature rating from fifteen to one hundred sixty degrees Fahrenheit
• Pressure rating up to four hundred pounds WOG

Product Highlights

This ball valve operates well in various conditions due to its durable materials and design.

Product Information

Standard Information

• Brand: Red-White Valve Corp
• MPN: 5009AB 3/4

Technical Specifications

• Ball Material: Chrome Plated Low Lead Brass
• Body Material: Brass
• End Style: Barb
• Inlet to Outlet Length: 2.6 inches
• Nominal Size: 3/4 inches
• Orifice Size: 1/2 inches
• Port Type: Regular
• Pressure Rating: 400 lb WOG
• Series: 5009AB
• Softgoods Material: NBR
• Temperature Rating: 15 to 160 degrees Fahrenheit
• Top to Inlet Center: 1.72 inches
• Trim Material: Low Lead Brass Stem and PTFE Seat
