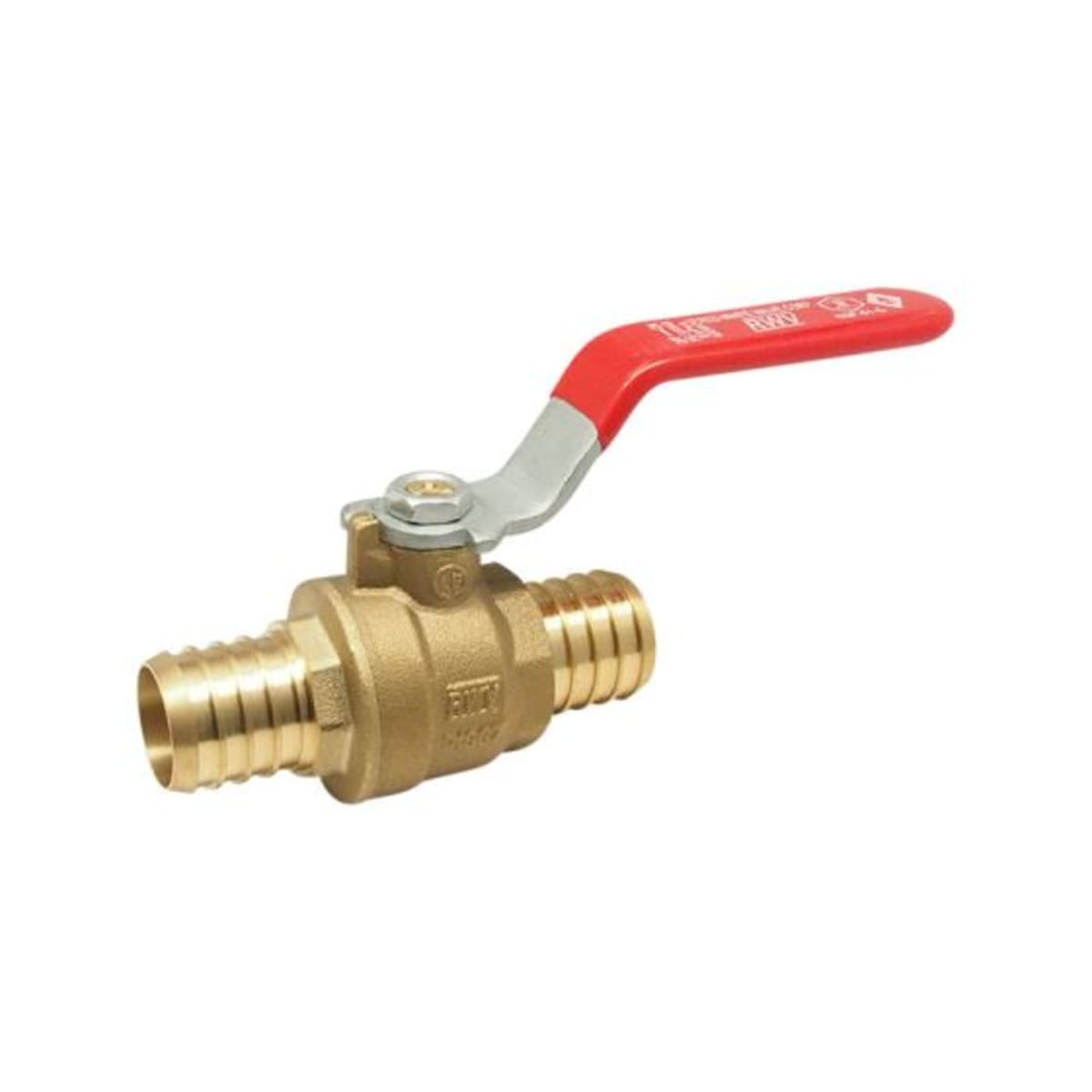

Red-White Valve 5009AB 1/2 AB PEX F1807 Ball Valve

Product Description

The Red-White Valve 5009AB1/2 is an AB PEX F1807 ball valve designed for a range of plumbing applications. This lead-free valve offers reliable performance and is suitable for use with PEX tubing. The valve has a nominal size of one-half inch and a temperature rating between fifteen to one hundred sixty degrees Fahrenheit.

• Lead-free construction for safe use
• Pressure rating of four hundred pounds WOG
• NBR O-ring and blow-out proof stem for durability

Product Highlights

This valve is ideal for residential or commercial use where reliable flow control is necessary. It meets industry standards for plumbing fixtures, including AB1953 and ANSI NSF 61-G/372.

Product Information

Standard Information

• Manufacturer: Red-White Valve Corp
• Model Number: 5009AB 1/2

Technical Specifications

• Ball Material: Chrome Plated Low Lead Brass
• Body Material: Brass
• End Style: Barb
• Inlet to Outlet Length: 2.31 inches
• Nominal Size: 1/2 inches
• Orifice Size: 0.39 inches
• Port Type: Regular
• Pressure Rating: 400 lb WOG
• Series: 5009AB
• Softgoods Material: NBR
• Temperature Rating: 15 to 160 degrees Fahrenheit
• Top to Inlet Center: 1.36 inches
• Trim Material: Low Lead Brass Stem and PTFE Seat
