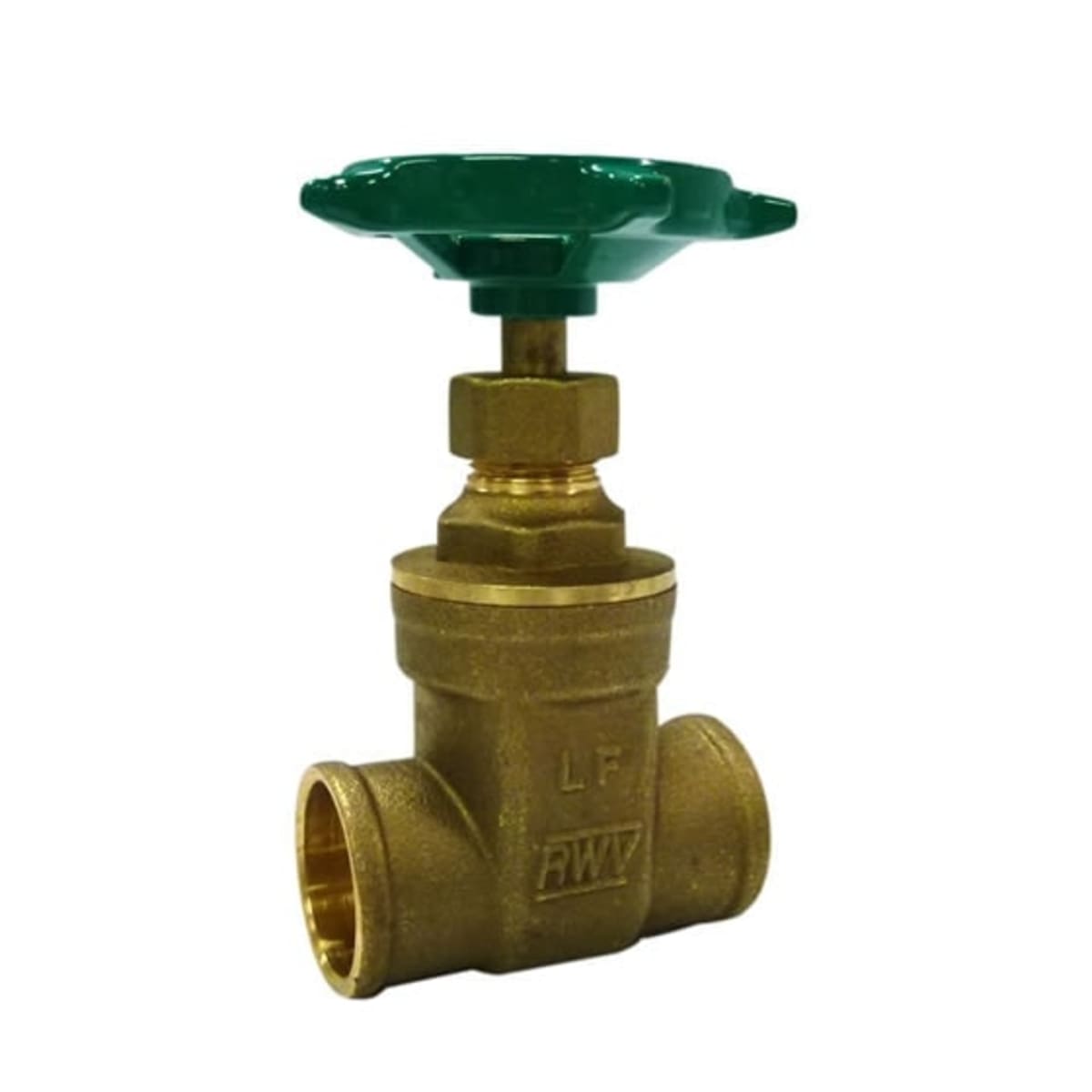

Red-White Valve 268AB1 Low Lead Brass Gate Valve CXC

Product Description

The Red-White Valve 268AB1 is a low lead brass gate valve designed for various applications. It has a solder end style and is rated for 200 lb WOG pressure. This valve features a handwheel actuator for easy operation and a non-rising stem design for reliable performance.

• 1 inch nominal size
• Brass body and trim
• Temperature rating of 212 degrees Fahrenheit

Product Highlights

This gate valve is suitable for plumbing and industrial applications, providing a secure and effective shutoff process.

Product Information

Standard Information

• Brand: Red-White Valve Corp
• Part Number: 268AB1

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Brass
• End Style: Solder
• Hand Wheel Diameter: 2.05 inches
• Inlet to Outlet Length: 2.28 inches
• Nominal Size: 1 inch
• Pressure Rating: 200 lb WOG
• Series: 268AB
• Softgoods Material: PTFE Gasket, Packing
• Temperature Rating: 212 degrees Fahrenheit
• Top to Inlet Center: 3.5 inches
• Trim Material: Brass
