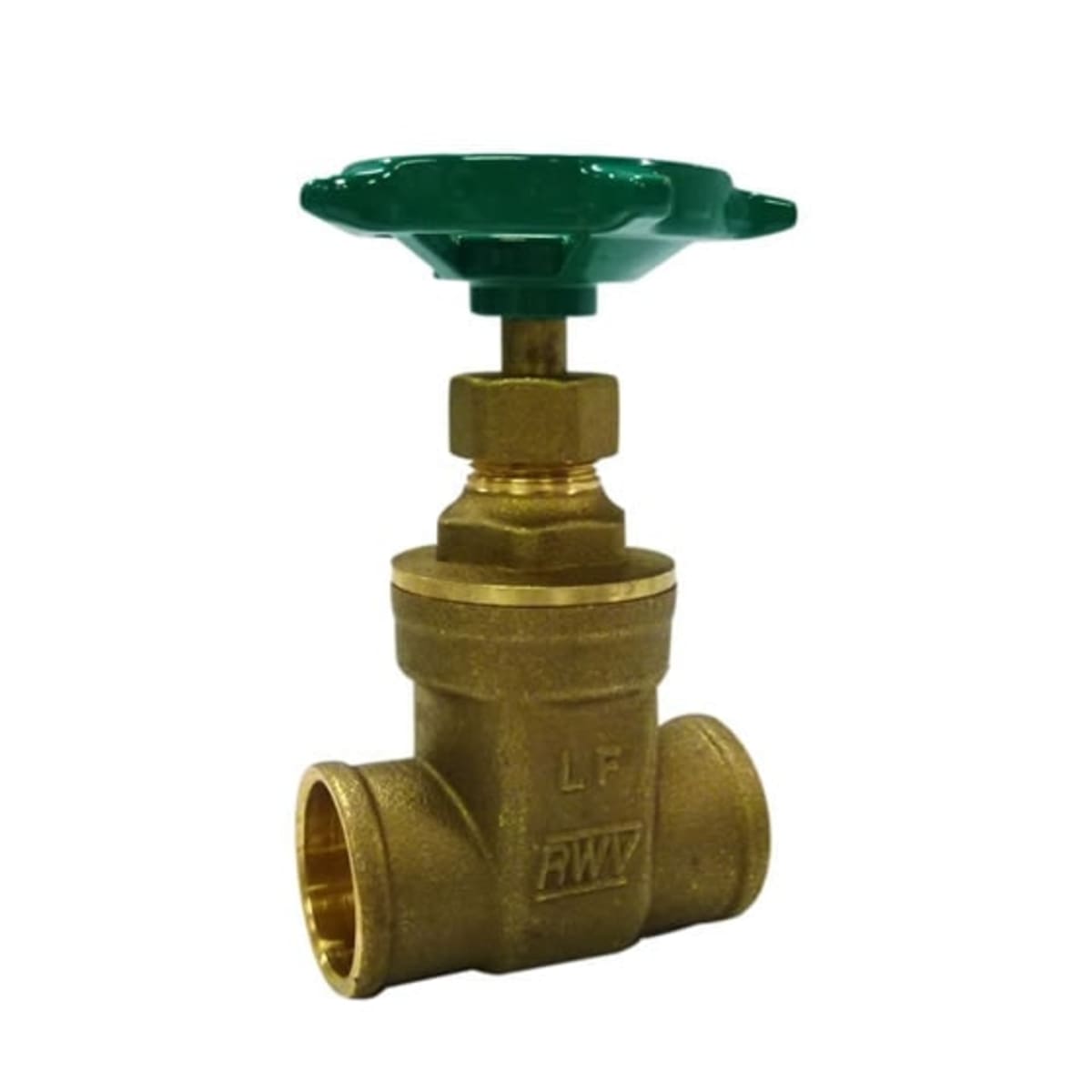

Red-White Valve 268AB 3/4 Low Lead Brass Gate Valve CXC

Product Description

The Red-White Valve 268AB3/4 is a low lead brass gate valve designed for reliable flow control in various plumbing applications. This valve features a solder end style and is rated for 200 lb WOG pressure and up to 212 degrees Fahrenheit. It is a handwheel actuator type with a length of two inches from inlet to outlet, making it suitable for tight spaces.

• Non-rising stem with a solid wedge disc
• Compliant with AB1953 and NSF 61/372 standards
• Brass body and trim for durability

Product Highlights

This gate valve is ideal for residential and commercial plumbing systems.

Product Information

Standard Information

• Manufacturer: Red-White Valve Corp
• UPC: 670779258058

Technical Specifications

• Series: 268AB
• Nominal Size: 3/4 in
• Body Material: Brass
• End Style: Solder
• Inlet to Outlet Length: 2 in
• Pressure Rating: 200 lb WOG
• Temperature Rating: 212 deg F
• Hand Wheel Diameter: 1.78 in
• Top to Inlet Center: 3.18 in
• Softgoods Material: PTFE Gasket, Packing
