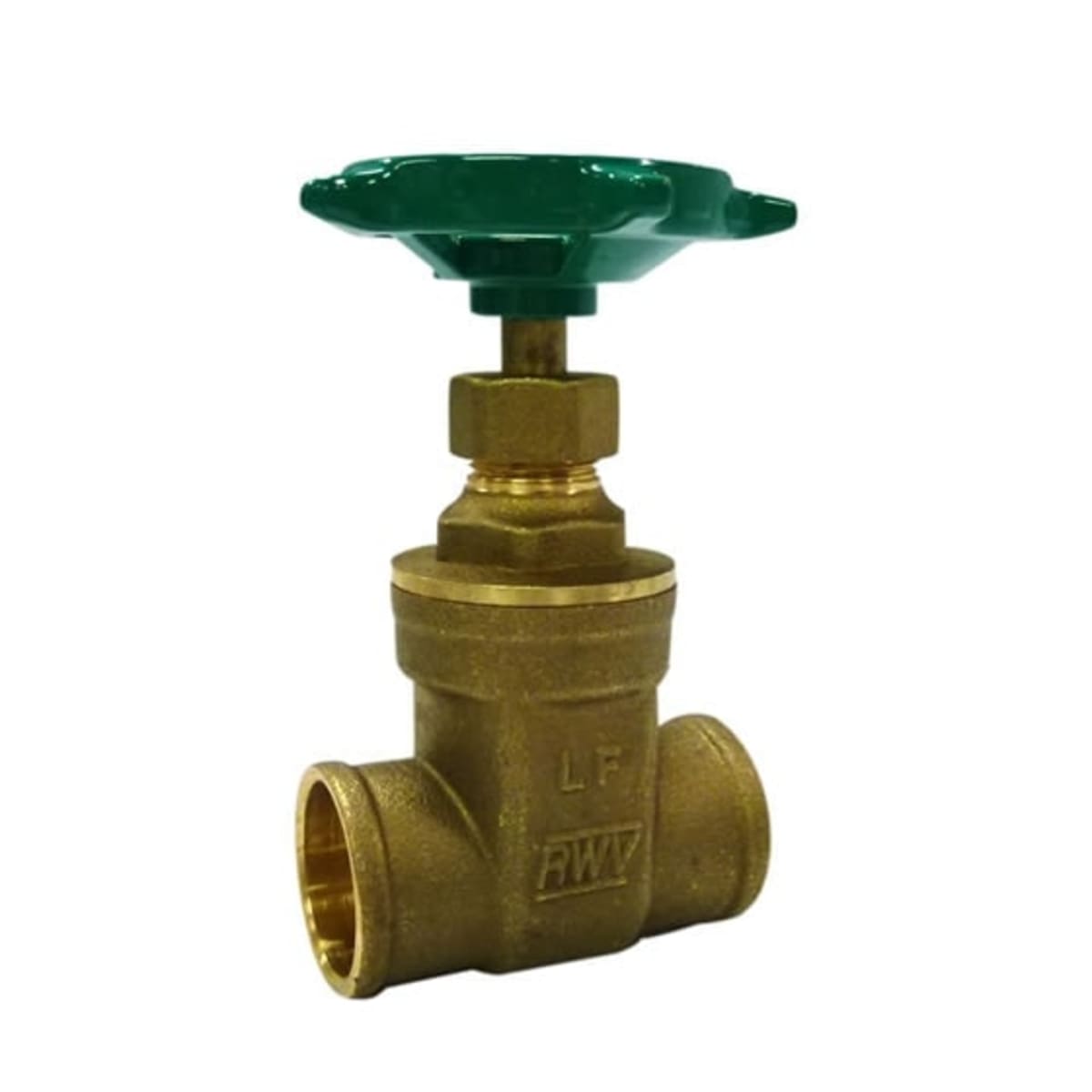

Red-White Valve 268AB 1/2 Low Lead Brass Gate Valve CXC

Product Description

The Red-White Valve 268AB1/2 is a half-inch low lead brass gate valve designed for various plumbing applications. This valve features a solder end style, ensuring a secure connection while complying with lead-free standards. The valve can handle up to 200 lb water, oil, and gas (WOG) pressure and is rated for temperatures up to 212 degrees Fahrenheit.

• Non-rising stem design
• Handwheel actuator for easy operation
• Brass body with PTFE gasket for durability

Product Highlights

This gate valve is ideal for both residential and commercial applications, providing reliable flow control. It meets industry standards, making it a trustworthy choice for professionals.

Product Information

Standard Information

• Brand: Red-White Valve Corp
• MPN: 268AB1/2

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Brass
• End Style: Solder
• Hand Wheel Diameter: 1.78 inches
• Inlet to Outlet Length: 1.6 inches
• Nominal Size: 1/2 inch
• Pressure Rating: 200 lb WOG
• Series: 268AB
• Softgoods Material: PTFE Gasket, Packing
• Temperature Rating: 212 degrees Fahrenheit
• Top to Inlet Center: 2.75 inches
• Trim Material: Brass
