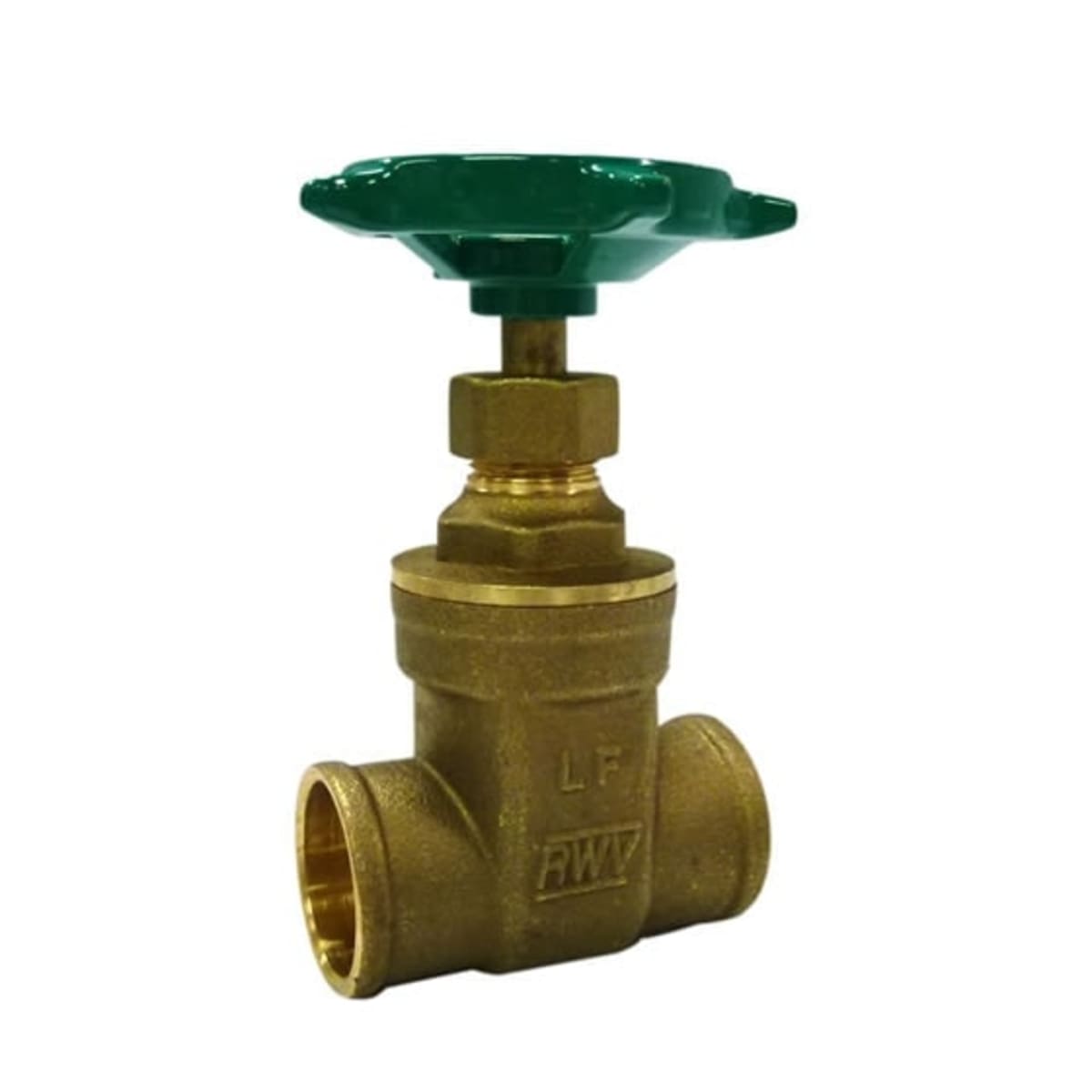

Red-White Valve 268AB 1-1/4 Low Lead Brass Gate Valve CXC

Product Description

Red-White Valve presents the 268AB series, a 1-1/4 inch low lead brass gate valve designed for reliable performance. This valve features solder end style and is perfect for use in plumbing applications. It operates under 200 pound WOG pressure and has a temperature rating of 212 degrees Fahrenheit. The handwheel actuator provides ease of use.

• Non-rising stem design
• Durable brass body and trim
• PTFE gasket and packing for extended life

Product Highlights

This valve is suitable for both residential and commercial applications. It meets industry standards including AB1953 and NSF 61/372.

Product Information

Standard Information

• Manufacturer: Red-White Valve Corp
• UPC: 670779258072

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Brass
• Pressure Rating: 200 lb WOG
• Temperature Rating: 212 degrees F
• Nominal Size: 1-1/4 inches
• Top to Inlet Center: 4.35 inches
• Inlet to Outlet Length: 2.91 inches
• Hand Wheel Diameter: 2.38 inches
• Softgoods Material: PTFE Gasket, Packing
