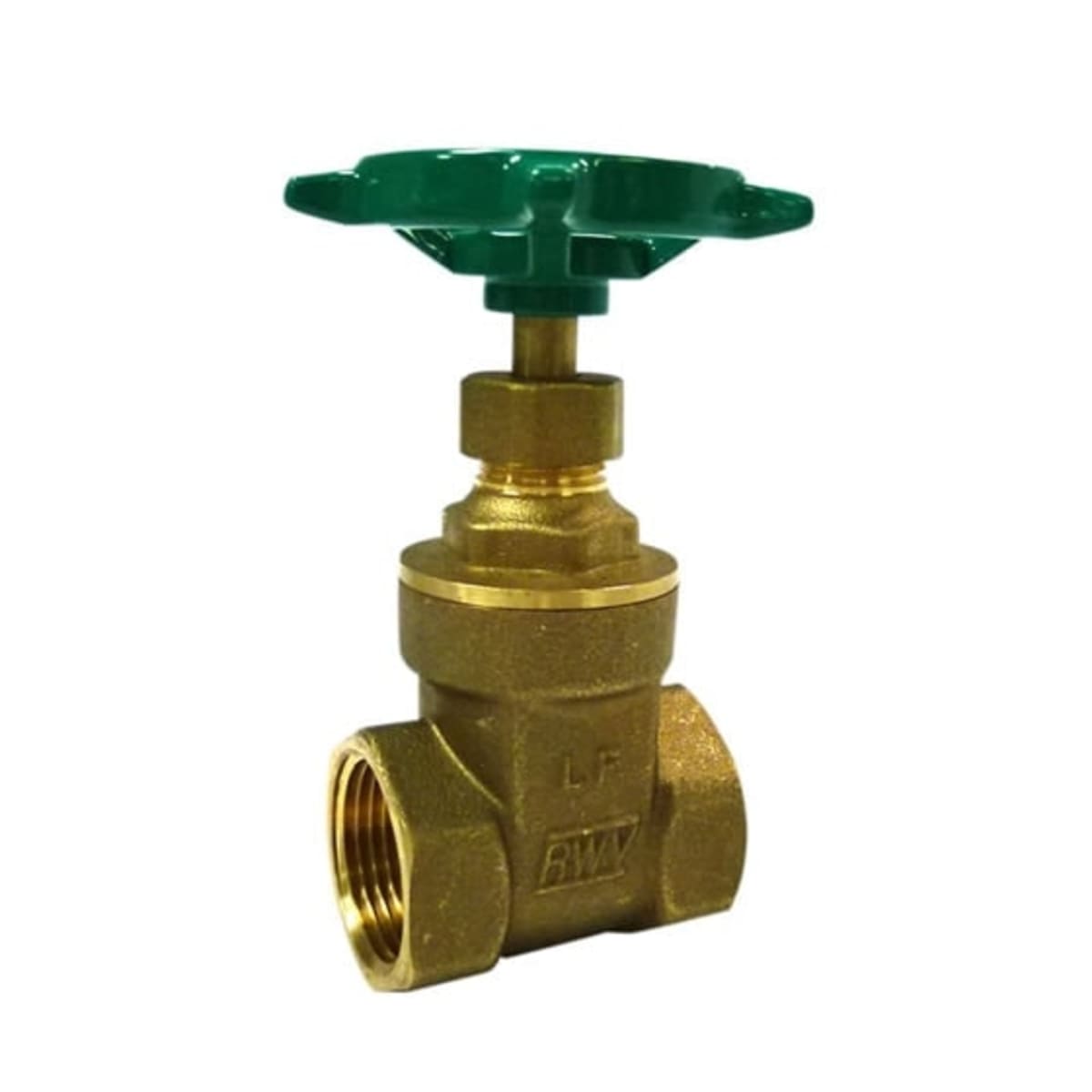

Red-White Valve 267AB1-1/2 LOW LEAD BRASS GATE VALVE IPS

Product Description

The Red-White Valve 267AB series features a low lead brass gate valve with a nominal size of one and one-half inches. This valve is designed with a threaded end style and can handle a pressure rating of two hundred pounds WOG. The maximum temperature tolerance is two hundred twelve degrees Fahrenheit. The handwheel actuator controls the flow, and the valve has a total length from inlet to outlet of two point thirty-seven inches.

• Constructed from low lead brass for safety.
• Features a solid wedge disc for reliable sealing.
• Complies with AB1953, NSF 61, and NSF 372 standards.

Product Highlights

This gate valve is ideal for various plumbing applications due to its robust construction and dependable performance.

Product Information

Standard Information

• Manufacturer: Red-White Valve Corp
• MPN: 267AB1-1/2

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Brass
• End Style: Thread
• Hand Wheel Diameter: 2.38 inches
• Inlet to Outlet Length: 2.37 inches
• Nominal Size: 1-1/2 inches
• Pressure Rating: 200 lb WOG
• Temperature Rating: 212 degrees Fahrenheit
• Softgoods Material: PTFE Gasket, Packing
• Top to Inlet Center: 4-3/4 inches
• Trim Material: Brass
