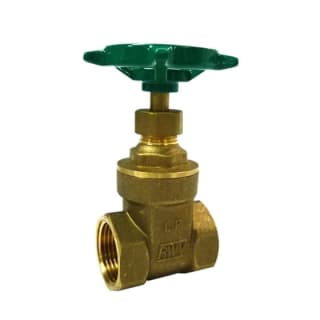

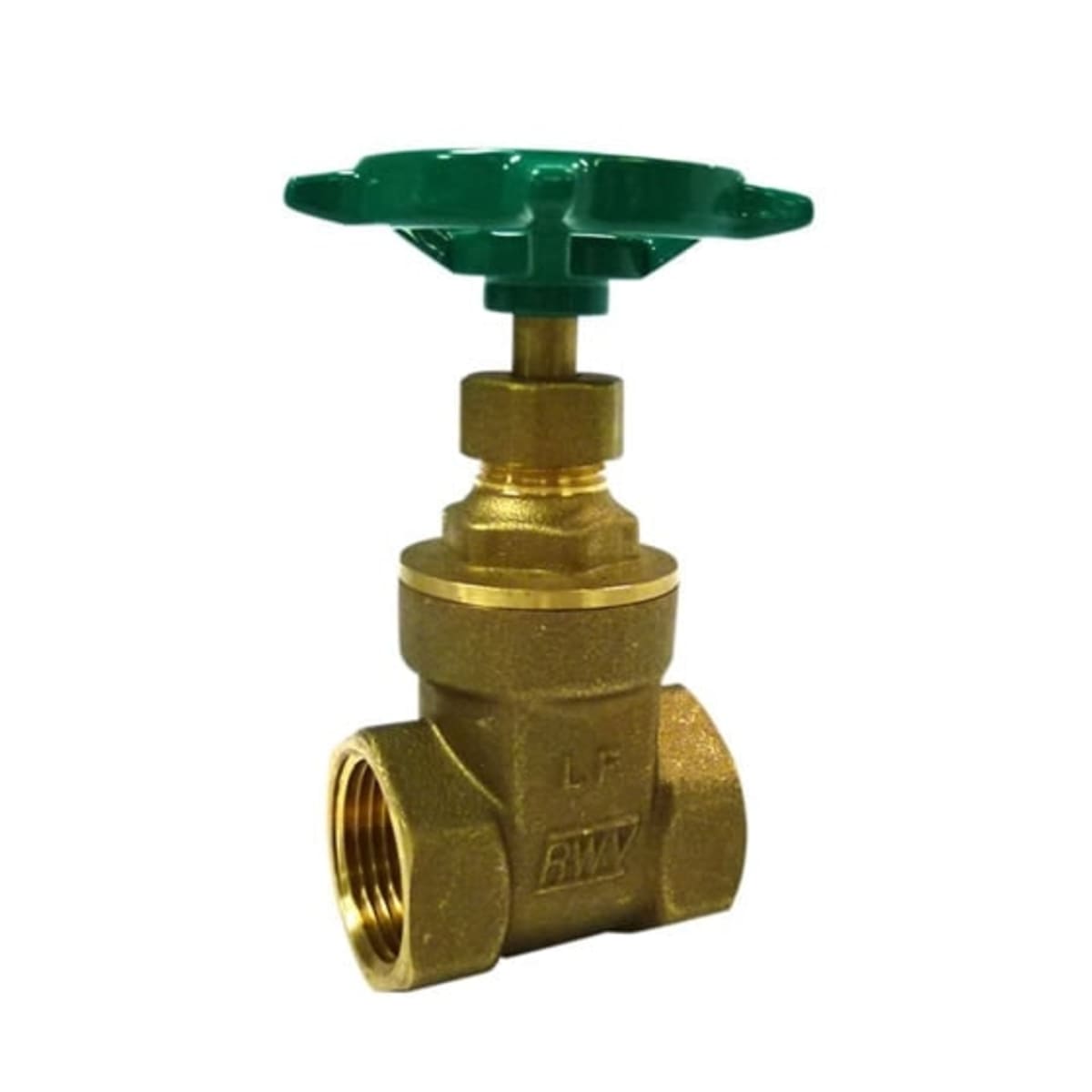

Red-White Valve 267AB 1/2 Low Lead Brass Gate Valve IPS

Product Description

The Red-White Valve with MPN 267AB 1/2 is a low lead brass gate valve designed for IPS connections. This valve has a nominal size of one half inch and is suitable for various plumbing applications.

• Body material is made of low lead brass
• Pressure rating of 200 lb WOG
• Temperature rating of 212 degrees Fahrenheit

Product Highlights

This gate valve features a handwheel actuator making it easy to operate. The valve includes a solid wedge disc and has a thread end style connection. Ideal for residential and commercial plumbing systems.

Product Information

Standard Information

• Manufacturer: Red-White Valve Corp
• Series: 267AB

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Brass
• End Style: Thread
• Hand Wheel Diameter: 1.78 inches
• Inlet to Outlet Length: 1.67 inches
• Nominal Size: 1/2 inch
• Pressure Rating: 200 lb WOG
• Softgoods Material: PTFE Gasket, Packing
• Temperature Rating: 212 degrees Fahrenheit
• Top to Inlet Center: 2-3/4 inches
• Trim Material: Brass
