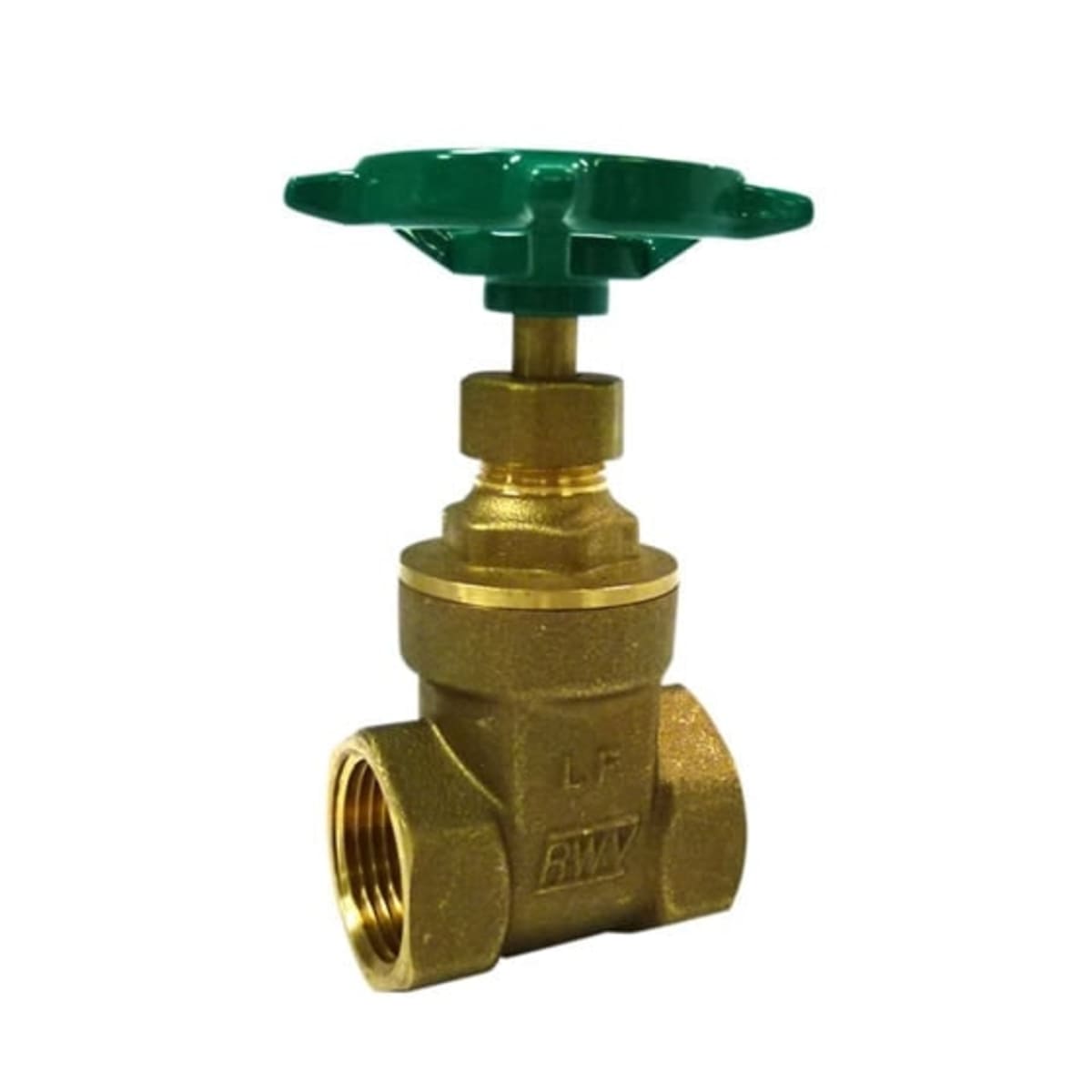

Red-White Valve 267AB 1-1/4 Low Lead Brass Gate Valve IPS

Product Description

The Red-White Valve 267AB 1-1/4 is a low lead brass gate valve designed for IPS connections. This valve features a handwheel actuator, ensuring precise control for a variety of plumbing applications.

• Pressure rated at two hundred pounds WOG
• Thread end style with a nominal size of one and one-fourth inches
• High temperature resistance rated up to two hundred twelve degrees Fahrenheit

Product Highlights

This product is ideal for use in residential and commercial plumbing systems where durability and reliability are crucial.

Product Information

Standard Information

• Brand: Red-White Valve Corp
• MPN: 267AB1-1/4

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Brass
• End Style: Thread
• Hand Wheel Diameter: 2.38 inches
• Inlet to Outlet Length: 2.25 inches
• Nominal Size: 1-1/4 inches
• Pressure Rating: 200 lb WOG
• Series: 267AB
• Softgoods Material: PTFE Gasket, Packing
• Temperature Rating: 212 degrees Fahrenheit
• Top to Inlet Center: 4.35 inches
• Trim Material: Brass
