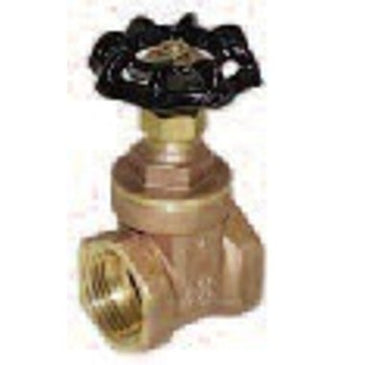

Red-White Valve 267112 Brass Gate Valve IPS 1-1/2 in

Product Description

The Red-White Valve 267112 is a brass gate valve designed for IPS connections. This valve has a nominal size of one and one-half inches and a standard thread end style. It offers a pressure rating of 200 lb WOG and can handle temperatures up to 212 degrees Fahrenheit. The actuator is a handwheel type for easy operation, and the valve features a cast brass body with brass trim and a PTFE gasket for reliable sealing.

• Non-rising stem design
• Inserted bonnet for durability
• Solid wedge disc for efficient flow control

Product Highlights

This gate valve is suitable for various plumbing and HVAC applications. It is reliable and easy to install, ensuring a secure fit in your plumbing system.

Product Information

Standard Information

• Manufacturer: Red-White Valve Corp
• Type: Standard

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Cast Brass
• End Style: Thread
• Hand Wheel Diameter: 1.37 in
• Inlet to Outlet Length: 2.3 in
• Nominal Size: 1-1/2 in
• Pressure Rating: 200 lb WOG
• Temperature Rating: 212 deg F
• Top to Inlet Center: 4.84 in
• Softgoods Material: PTFE Gasket, Packing
• Trim Material: Brass
• Series: 267
