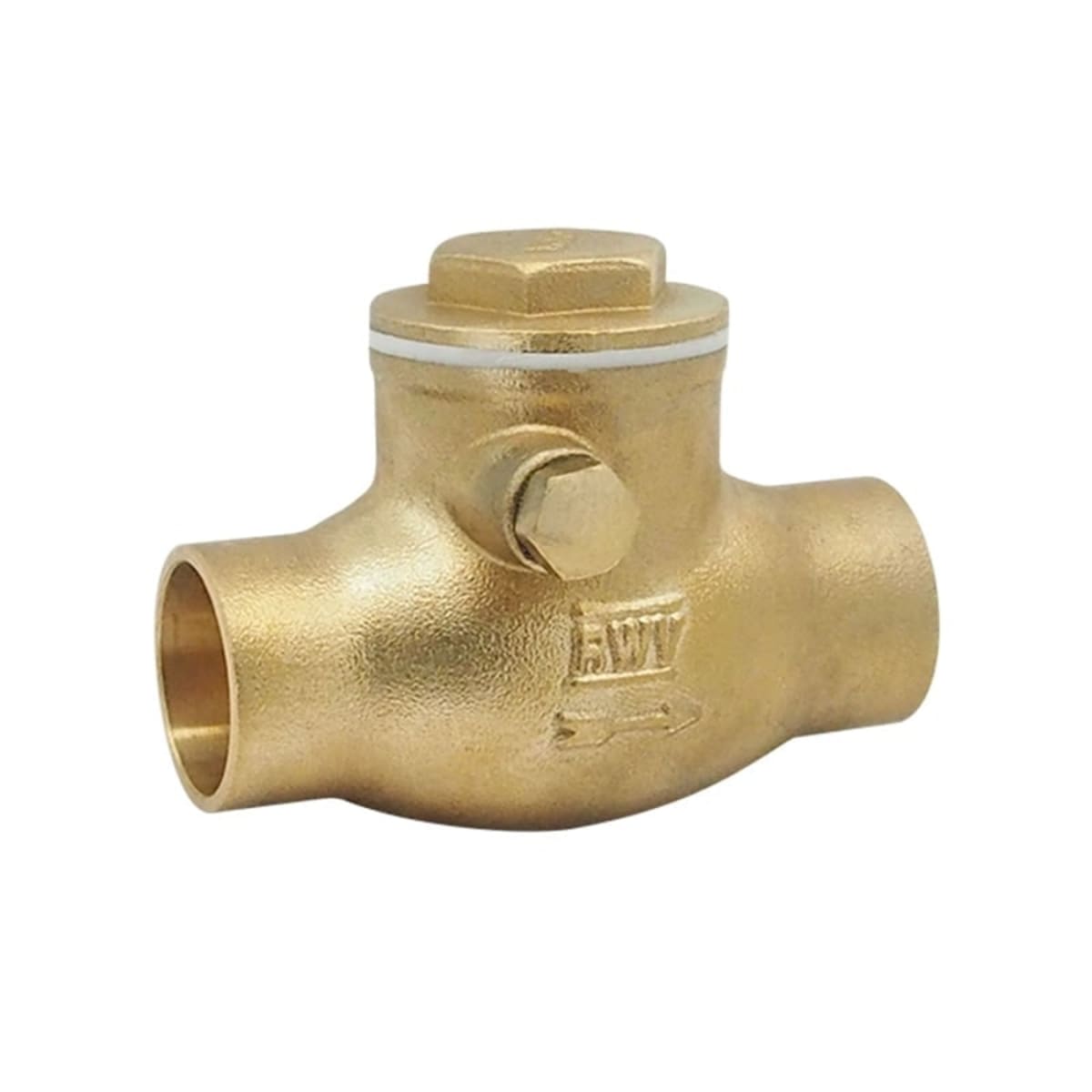

Red-White Valve 247AB2 Low Lead Brass Swing Check

Product Description

Red-White Valve 247AB2 is a low lead brass swing check valve designed for use in plumbing applications. This valve features a horizontal T-pattern suitable for various installations where backflow prevention is essential. It has a nominal diameter of two inches and connects with solder joint ends. The valve has a pressure class rating of 200 lb WOG and can handle temperatures up to 450 degrees Fahrenheit.

• Horizontal T-pattern design for effective backflow prevention
• Constructed from forged brass for durability
• Meets AB1953 and ANSI/NSF standards

Product Highlights

The 247AB2 is optimized for residential and commercial plumbing systems requiring reliable flow control and easy installation. Its robust construction ensures longevity and safety in application.

Product Information

Standard Information

• Manufacturer: Red-White Valve Corp
• UPC: 670779244204

Technical Specifications

• Body Material: Forged Brass
• End Style: Solder Joint
• Inlet to Outlet Length: 5.51 inches
• Low Lead Compliance: No
• Nominal Size: 2 inches
• Pressure Class: 200 lb WOG
• Series: 247AB
• Temperature Rating: 450 degrees Fahrenheit
• Top to Inlet Center: 2.79 inches
• Trim Material: Brass
• Type: Horizontal T-Pattern
