Red-White Valve 247AB-4 4 in Brass Solder Swing Check Valve R247ABP

Product Description

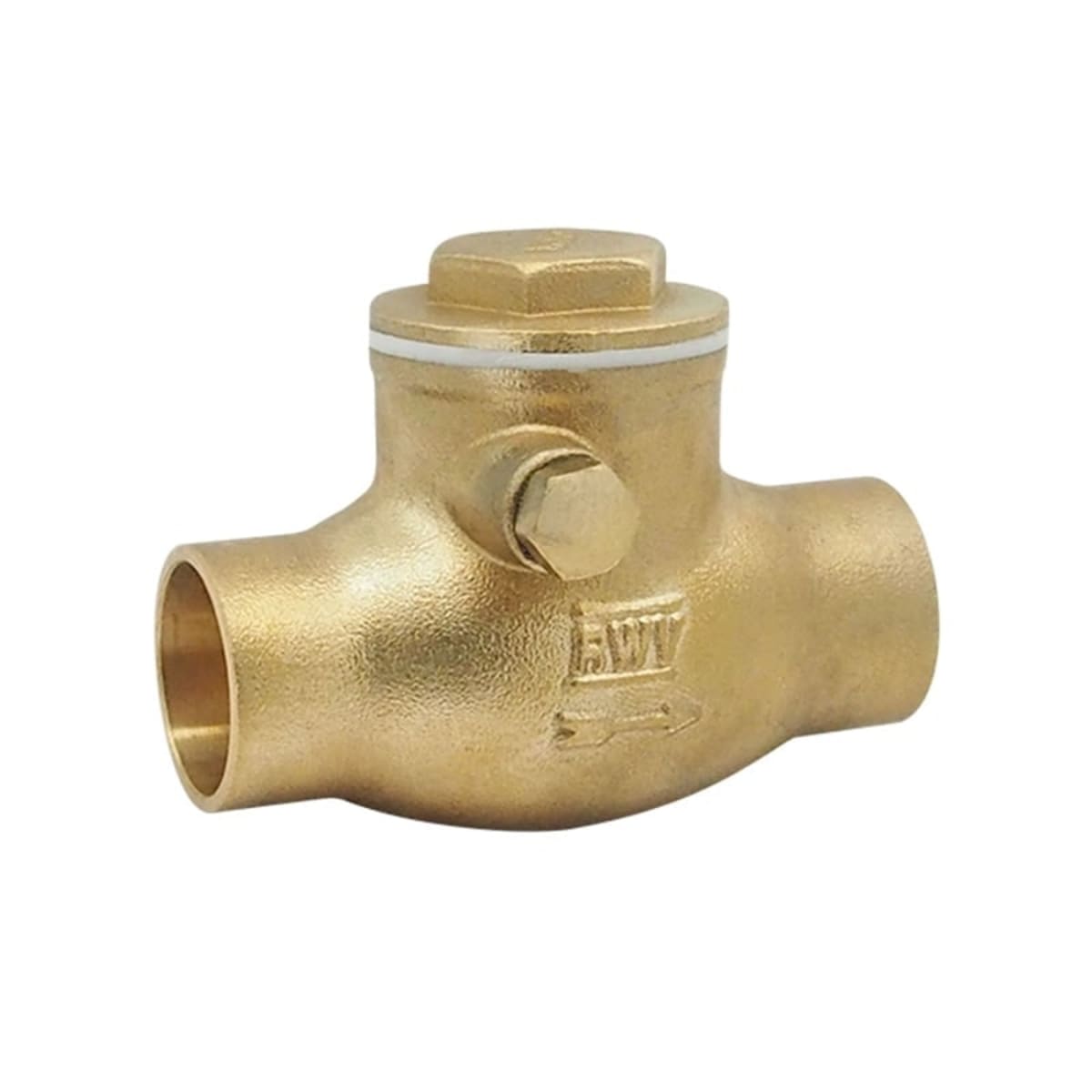

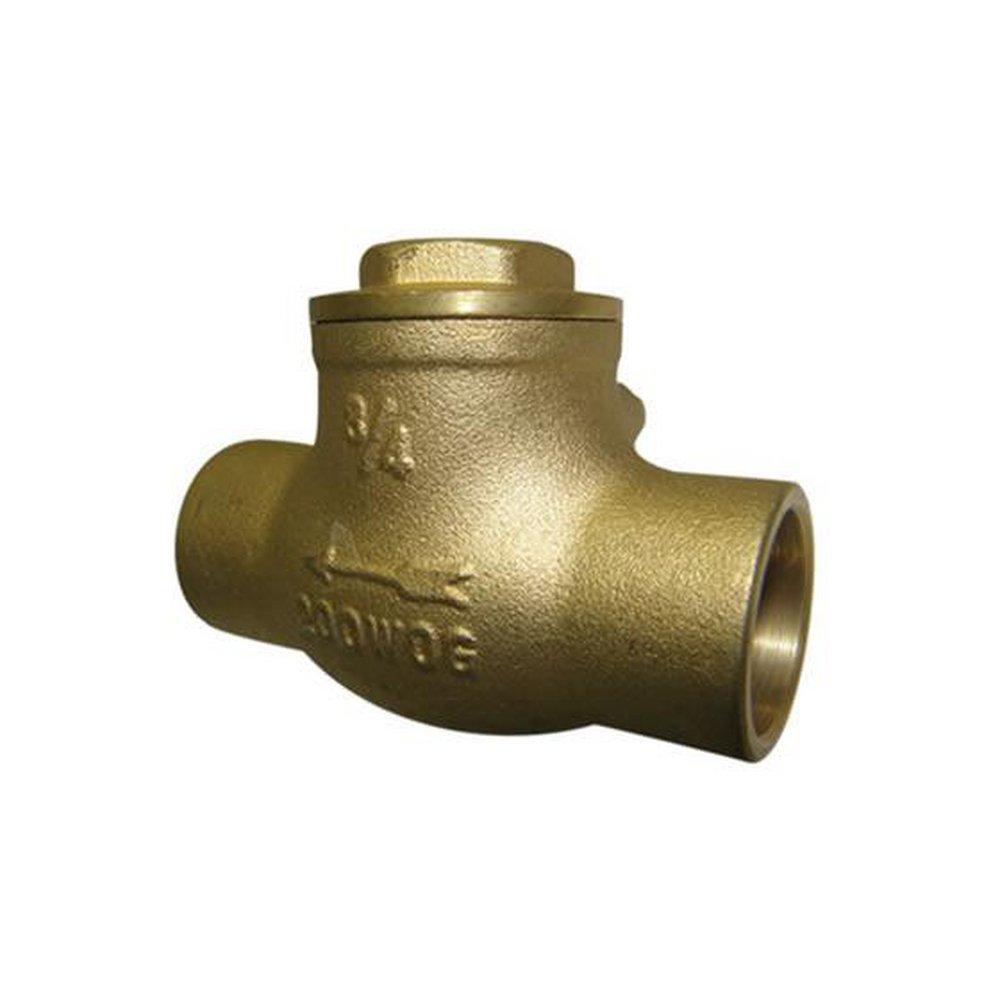

The Red-White Valve 247AB-4 is a four-inch brass solder swing check valve designed for reliable performance in various plumbing applications. This valve is part of the 247AB series and is made from forged brass, ensuring durability and resistance to wear.

• Designed for horizontal T-pattern installations
• Meets 200 lb WOG pressure class
• Capable of operating at temperatures up to 450 degrees Fahrenheit

Product Highlights

This swing check valve prevents backflow, ensuring smooth fluid movement in piping systems. Its solder end style allows for easy installation and secure connections.

Product Information

Standard Information

• Manufacturer: Red-White Valve Corp
• MPN: 247AB-4

Technical Specifications

• Body Material: Forged Brass
• End Style: Solder Joint
• Nominal Size: 4 in
• Pressure Class: 200 lb WOG
• Temperature Rating: 450 deg F
• Inlet to Outlet Length: 9.42 in
• Top to Inlet Center: 4.34 in
• Low Lead Compliance: No
