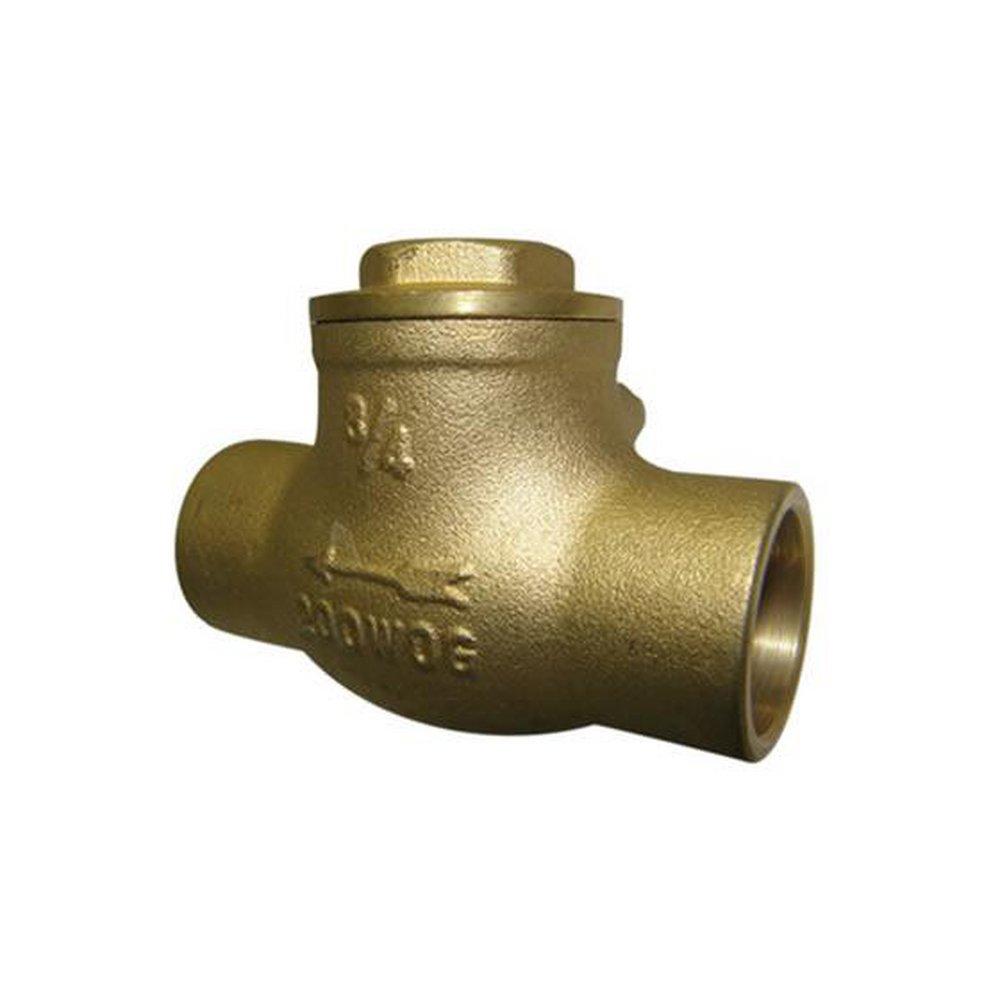

Red-White Valve 247AB 3/4 in Brass Solder Swing Check Valve

Product Description

The Red-White Valve 247AB_3/4 is a brass solder swing check valve designed for efficient flow control in plumbing systems. This valve features a horizontal T-pattern and is suitable for use with soldered connections. It operates under a pressure class rating of 200 pounds WOG and can withstand a temperature of up to four hundred fifty degrees Fahrenheit.

• Horizontal T-pattern design
• Constructed from forged brass
• Meets NSF/ANSI standards for lead-free compliance

Product Highlights

This swing check valve is ideal for preventing backflow in various plumbing applications, ensuring that water flows in the desired direction.

Product Information

Standard Information

• Brand: Red-White Valve
• Part Number: 247AB 3/4

Technical Specifications

• Body Material: Forged Brass
• Nominal Size: 3/4 inch
• End Style: Solder Joint
• Pressure Class: 200 lb WOG
• Temperature Rating: 450 degrees Fahrenheit
• Inlet to Outlet Length: 2.91 inches
• Top to Inlet Center: 1.52 inches
• Series: 247AB
