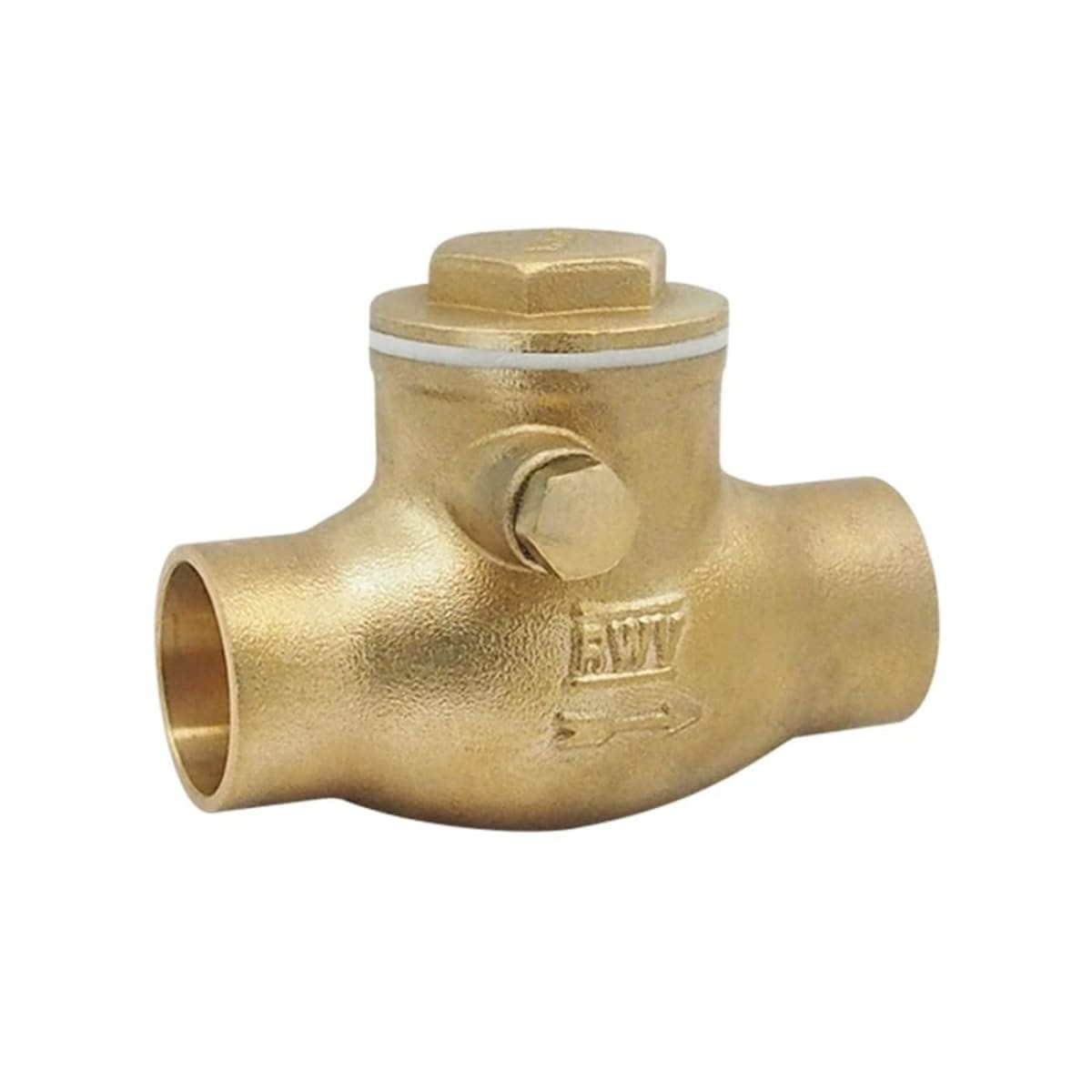

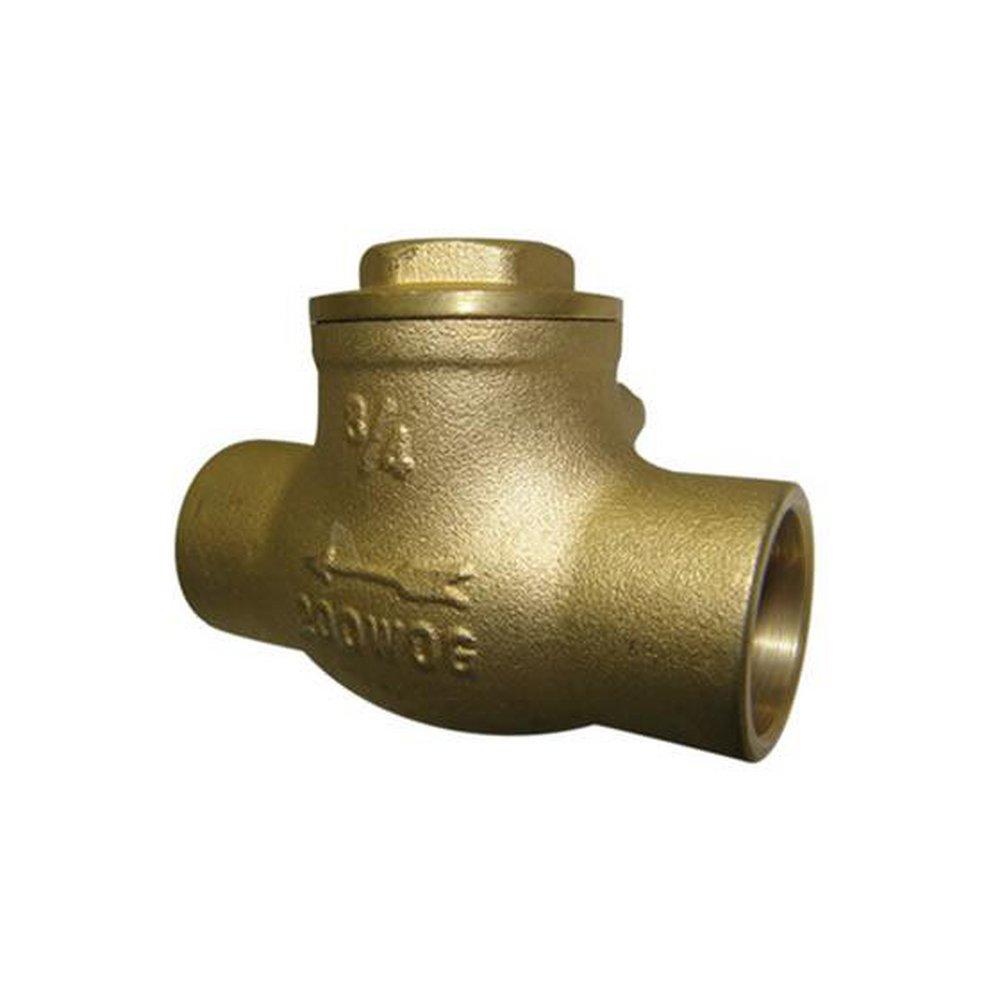

Red-White Valve 247AB-3 3 in. Brass Solder Swing Check Valve

Product Description

The Red-White Valve 247AB-3 is a three-inch brass solder swing check valve designed for effective flow control in various plumbing applications. This valve is constructed with a forged brass body and features solder type ends, making it suitable for solder connections according to ASME B16.22 standards.

• Brass body and trim for durability.
• Rated for 200# WOG pressure class.
• Operates effectively at temperatures up to four hundred fifty degrees Fahrenheit.

Product Highlights

This check valve is ideal for horizontal positioning and is built to prevent backflow in piping systems.

Product Information

Standard Information

• Manufacturer: Red-White Valve Corp
• MPN: 247AB 3

Technical Specifications

• Body Material: Forged Brass
• Nominal Size: 3 inches
• End Style: Solder Joint
• Pressure Class: 200 lb WOG
• Temperature Rating: 450 degrees Fahrenheit
• Length (Inlet to Outlet): 7 inches
• Top to Inlet Center: 3.64 inches
• Type: Horizontal T-Pattern
