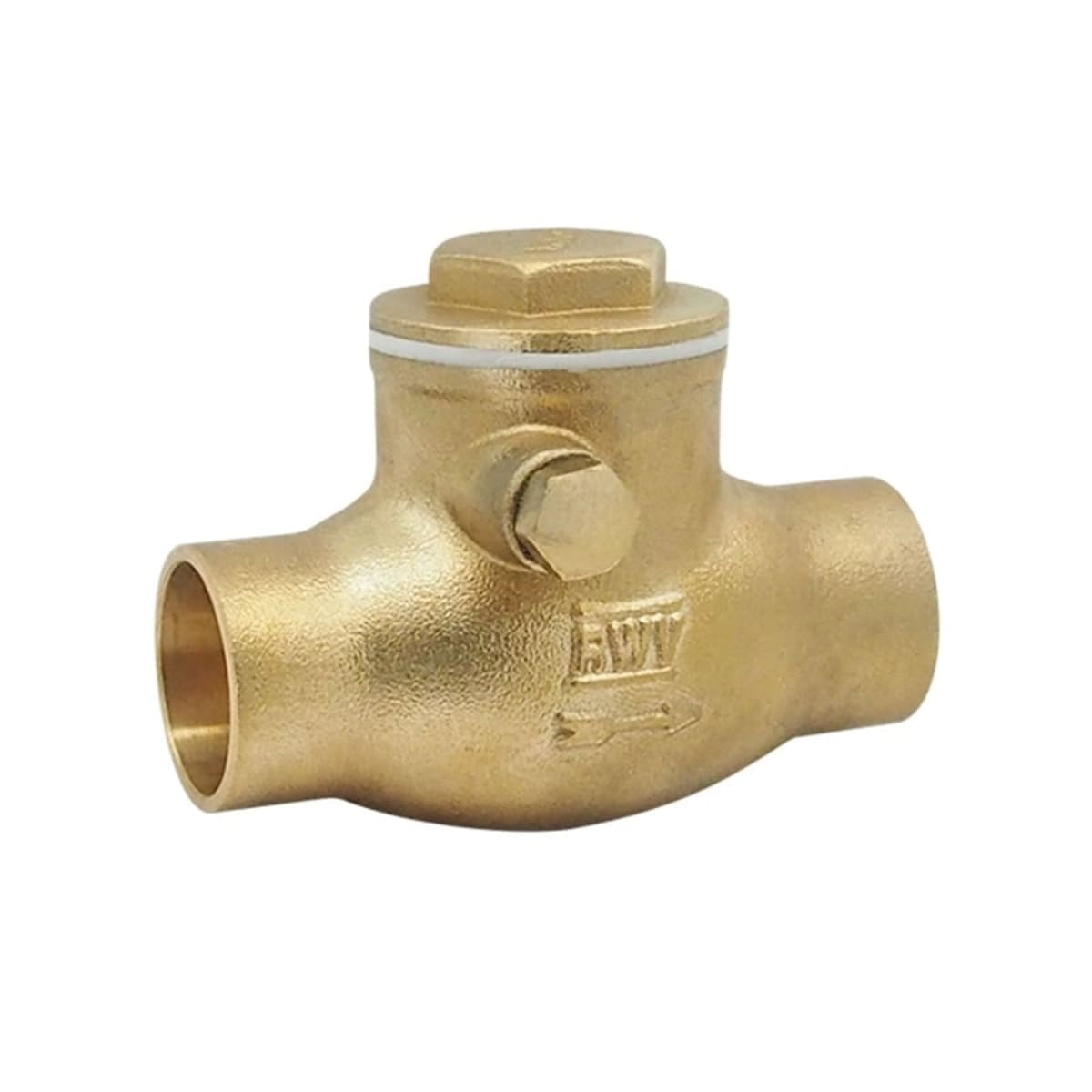

Red-White Valve 247AB-212 2-1/2 in Brass Solder Swing Check Valve

Product Description

The Red-White Valve 247AB-212 is a two and one-half inch brass solder swing check valve designed for efficient fluid control. This valve features a forged brass body and brass trim, ensuring durability and reliability in various plumbing applications.

• Brass seat for improved sealing
• Rated for 200 lb WOG pressure
• Compatible with solder joint ends complying with ASME B16.22

Product Highlights

This swing check valve is ideal for use in residential and commercial plumbing systems, ensuring one-way flow to prevent backflow. Its horizontal T-pattern design enhances fluid dynamics and minimizes clogging.

Product Information

Standard Information

• Brand: Red-White Valve
• MPN: 247AB-212

Technical Specifications

• Body Material: Forged Brass
• End Style: Solder Joint
• Nominal Size: 2-1/2 in
• Pressure Class: 200 lb WOG
• Temperature Rating: 450 deg F
• Inlet to Outlet Length: 6.29 in
• Top to Inlet Center: 3.42 in
• Type: Horizontal T-Pattern
• Standards/Approval: AB1953, ANSI/NSF 61-G/372
