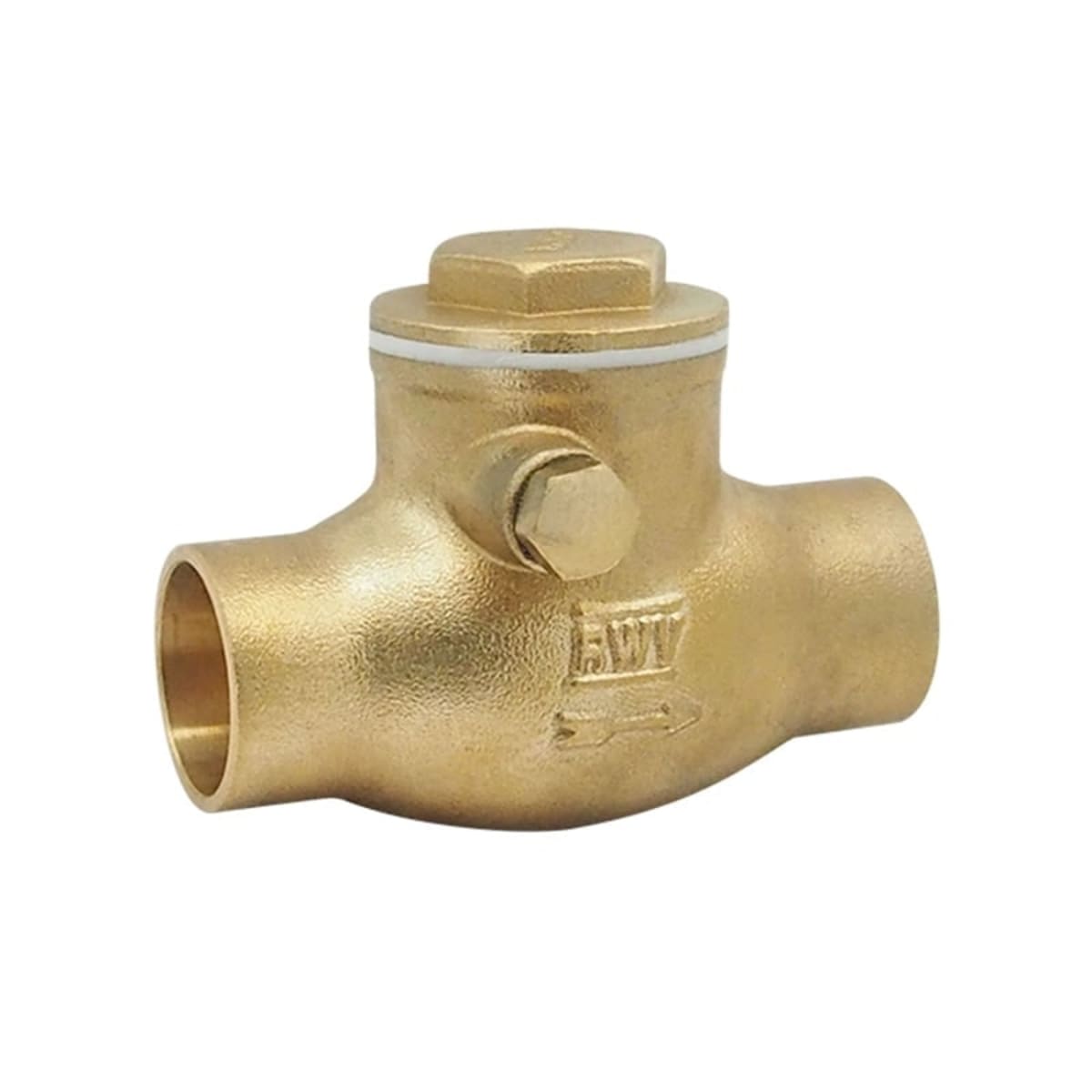

Red-White Valve 247AB 1-1/4 Low Lead Brass Swing Check

Product Description

Red-White Valve 247AB is a low lead brass swing check valve for plumbing applications. It features a horizontal T-pattern and solder joint end style. The valve is designed to handle a pressure class of 200 lb WOG and can operate at a maximum temperature of four hundred fifty degrees Fahrenheit. This model is compliant with AB1953 and NSF 61-G standards, ensuring safety and reliability in water delivery systems.

• Body Material: Forged Brass
• Inlet to Outlet Length: three point eight six inches
• Nominal Size: one and one-fourth inches

Product Highlights

This product is ideal for preventing backflow in piping systems, making it essential for HVAC, plumbing, and construction professionals.

Product Information

Standard Information

• Manufacturer: Red-White Valve Corp
• Series: 247AB

Technical Specifications

• Type: Horizontal T-Pattern
• End Style: Solder Joint
• Pressure Class: 200 lb WOG
• Temperature Rating: 450 degrees Fahrenheit
• Top to Inlet Center: two inches
• Low Lead Compliance: No
• Trim Material: Brass
• Inlet to Outlet Length: three point eight six inches
